vtkStructuredGrid Class Reference

topologically regular array of data. More...

#include <vtkStructuredGrid.h>

Inheritance diagram for vtkStructuredGrid:

Inheritance graph
[legend]

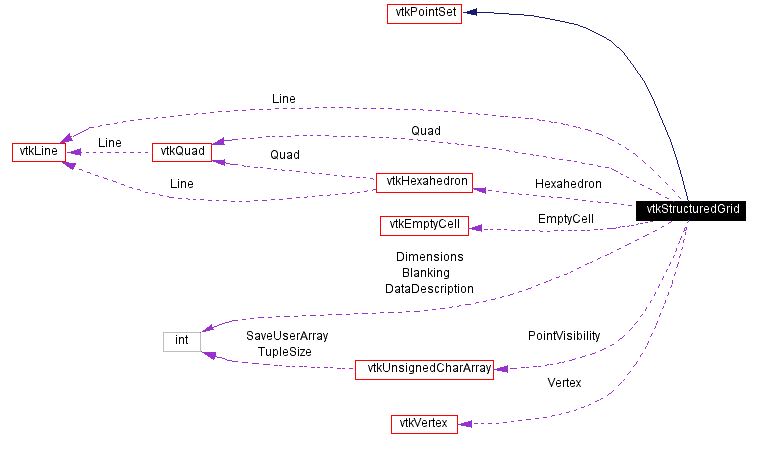

Collaboration diagram for vtkStructuredGrid:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetDataObjectType ()
vtkDataObject * MakeObject ()
void CopyStructure (vtkDataSet *ds)
int GetDataDimension ()
void SetPointVisibility (vtkUnsignedCharArray *pointVisibility)
unsigned char IsCellVisible (vtkIdType cellId)
unsigned long GetActualMemorySize ()
vtkIdType GetNumberOfPoints ()
float * GetPoint (vtkIdType ptId)
void GetPoint (vtkIdType ptId, float p[3])
vtkCell * GetCell (vtkIdType cellId)
void GetCell (vtkIdType cellId, vtkGenericCell *cell)
void GetCellBounds (vtkIdType cellId, float bounds[6])
int GetCellType (vtkIdType cellId)
vtkIdType GetNumberOfCells ()
void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
void Initialize ()
int GetMaxCellSize ()
void GetCellNeighbors (vtkIdType cellId, vtkIdList *ptIds, vtkIdList *cellIds)
virtual void GetScalarRange (float range[2])
float * GetScalarRange ()
void SetDimensions (int i, int j, int k)
void SetDimensions (int dim[3])
virtual int * GetDimensions ()
virtual void GetDimensions (int dim[3])
void SetBlanking (int blanking)
int GetBlanking ()
void BlankingOn ()
void BlankingOff ()
void BlankPoint (vtkIdType ptId)
void UnBlankPoint (vtkIdType ptId)
vtkUnsignedCharArray * GetPointVisibility ()
unsigned char IsPointVisible (vtkIdType ptId)
void SetUpdateExtent (int piece, int numPieces, int ghostLevel)
void SetUpdateExtent (int piece, int numPieces)
void SetUpdateExtent (int x1, int x2, int y1, int y2, int z1, int z2)
void SetUpdateExtent (int ext[6])
void SetExtent (int extent[6])
void SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual int * GetExtent ()
virtual void GetExtent (int &, int &, int &, int &, int &, int &)
virtual void GetExtent (int[6])
void ShallowCopy (vtkDataObject *src)
void DeepCopy (vtkDataObject *src)

Static Public Methods

vtkStructuredGrid * New ()
int IsTypeOf (const char *type)
vtkStructuredGrid * SafeDownCast (vtkObject *o)

Protected Methods

 vtkStructuredGrid ()
 ~vtkStructuredGrid ()
int GetExtentType ()
virtual void Crop ()
void AllocatePointVisibility ()

Protected Attributes

vtkVertex * Vertex
vtkLine * Line
vtkQuad * Quad
vtkHexahedron * Hexahedron
vtkEmptyCell * EmptyCell
int Dimensions [3]
int DataDescription
int Blanking
vtkUnsignedCharArray * PointVisibility

Detailed Description

topologically regular array of data.

Date:
2001/11/15 14:20:16
Revision:
1.88

vtkStructuredGrid is a data object that is a concrete implementation of vtkDataSet. vtkStructuredGrid represents a geometric structure that is a topologically regular array of points. The topology is that of a cube that has been subdivided into a regular array of smaller cubes. Each point/cell can be addressed with i-j-k indices. Examples include finite difference grids.

A unusual feature of vtkStructuredGrid is the ability to blank, or "turn-off" points and cells in the dataset. This is controlled by defining a "blanking array" whose values (0,1) specify whether a point should be blanked or not.

Examples:
vtkStructuredGrid (Examples)
Tests:
vtkStructuredGrid (Tests)

Definition at line 78 of file vtkStructuredGrid.h.

Constructor & Destructor Documentation

vtkStructuredGrid::vtkStructuredGrid (    )  [protected]


vtkStructuredGrid::~vtkStructuredGrid (    )  [protected]


Member Function Documentation

vtkStructuredGrid* vtkStructuredGrid::New (    )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

Referenced by MakeObject().

virtual const char* vtkStructuredGrid::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

virtual int vtkStructuredGrid::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

vtkStructuredGrid* vtkStructuredGrid::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

void vtkStructuredGrid::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::GetDataObjectType (    )  [inline, virtual]


Return what type of dataset this is.

Reimplemented from vtkDataSet.

Definition at line 87 of file vtkStructuredGrid.h.

vtkDataObject* vtkStructuredGrid::MakeObject (    )  [inline, virtual]


Create a similar type object

Reimplemented from vtkDataObject.

Definition at line 90 of file vtkStructuredGrid.h.

void vtkStructuredGrid::CopyStructure (  vtkDataSet *    ds )  [virtual]


Copy the geometric and topological structure of an input poly data object.

Reimplemented from vtkPointSet.

vtkIdType vtkStructuredGrid::GetNumberOfPoints (    )  [inline, virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

Definition at line 98 of file vtkStructuredGrid.h.

float* vtkStructuredGrid::GetPoint (  vtkIdType    ptId )  [inline, virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

Definition at line 99 of file vtkStructuredGrid.h.

void vtkStructuredGrid::GetPoint (  vtkIdType    ptId,
float    p[3]
)  [inline, virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

Definition at line 100 of file vtkStructuredGrid.h.

vtkCell* vtkStructuredGrid::GetCell (  vtkIdType    cellId )  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

void vtkStructuredGrid::GetCell (  vtkIdType    cellId,
vtkGenericCell *    cell
)  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

void vtkStructuredGrid::GetCellBounds (  vtkIdType    cellId,
float    bounds[6]
)  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

int vtkStructuredGrid::GetCellType (  vtkIdType    cellId )  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

vtkIdType vtkStructuredGrid::GetNumberOfCells (    )  [inline, virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 248 of file vtkStructuredGrid.h.

void vtkStructuredGrid::GetCellPoints (  vtkIdType    cellId,
vtkIdList *    ptIds
)  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

void vtkStructuredGrid::GetPointCells (  vtkIdType    ptId,
vtkIdList *    cellIds
)  [inline, virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 108 of file vtkStructuredGrid.h.

void vtkStructuredGrid::Initialize (    )  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::GetMaxCellSize (    )  [inline, virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 113 of file vtkStructuredGrid.h.

void vtkStructuredGrid::GetCellNeighbors (  vtkIdType    cellId,
vtkIdList *    ptIds,
vtkIdList *    cellIds
)  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

virtual void vtkStructuredGrid::GetScalarRange (  float    range[2] )  [virtual]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

float* vtkStructuredGrid::GetScalarRange (    )  [inline]


Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 117 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetDimensions (  int    i,
int    j,
int    k
)


following methods are specific to structured grid

void vtkStructuredGrid::SetDimensions (  int    dim[3] )


following methods are specific to structured grid

virtual int* vtkStructuredGrid::GetDimensions (    )  [virtual]


Get dimensions of this structured points dataset.

Referenced by GetNumberOfCells().

virtual void vtkStructuredGrid::GetDimensions (  int    dim[3] )  [virtual]


Get dimensions of this structured points dataset.

int vtkStructuredGrid::GetDataDimension (    )  [inline]


Return the dimensionality of the data.

Definition at line 270 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetBlanking (  int    blanking )


Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them.

int vtkStructuredGrid::GetBlanking (    )  [inline]


Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them.

Definition at line 139 of file vtkStructuredGrid.h.

void vtkStructuredGrid::BlankingOn (    )


Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them.

void vtkStructuredGrid::BlankingOff (    )


Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them.

void vtkStructuredGrid::BlankPoint (  vtkIdType    ptId )


Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them.

void vtkStructuredGrid::UnBlankPoint (  vtkIdType    ptId )


Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them.

vtkUnsignedCharArray* vtkStructuredGrid::GetPointVisibility (    )  [inline]


Get the array that defines the blanking (visibility) of each point.

Definition at line 148 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetPointVisibility (  vtkUnsignedCharArray *    pointVisibility )


Set an array that defines the (blanking) visibility of the points in the grid. Make sure that length of the visibility array matches the number of points in the grid.

unsigned char vtkStructuredGrid::IsPointVisible (  vtkIdType    ptId )  [inline]


Return non-zero value if specified point is visible. Use this method only if blanking has been enabled (with BlankingOn()).

Definition at line 160 of file vtkStructuredGrid.h.

unsigned char vtkStructuredGrid::IsCellVisible (  vtkIdType    cellId )


Return non-zero value if specified point is visible. Use this method only if blanking has been enabled (with BlankingOn()).

void vtkStructuredGrid::SetUpdateExtent (  int    piece,
int    numPieces,
int    ghostLevel
)


Required for the lowest common denominator for setting the UpdateExtent (i.e. vtkDataSetToStructuredPointsFilter). This assumes that WholeExtent is valid (UpdateInformation has been called).

void vtkStructuredGrid::SetUpdateExtent (  int    piece,
int    numPieces
)  [inline]


Required for the lowest common denominator for setting the UpdateExtent (i.e. vtkDataSetToStructuredPointsFilter). This assumes that WholeExtent is valid (UpdateInformation has been called).

Reimplemented from vtkDataObject.

Definition at line 173 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetUpdateExtent (  int    x1,
int    x2,
int    y1,
int    y2,
int    z1,
int    z2
)  [inline, virtual]


Call superclass method to avoid hiding

Reimplemented from vtkDataObject.

Definition at line 179 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetUpdateExtent (  int    ext[6] )  [inline, virtual]


Call superclass method to avoid hiding

Reimplemented from vtkDataObject.

Definition at line 181 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetExtent (  int    extent[6] )


Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

void vtkStructuredGrid::SetExtent (  int    x1,
int    x2,
int    y1,
int    y2,
int    z1,
int    z2
)


Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual int* vtkStructuredGrid::GetExtent (    )  [virtual]


Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkStructuredGrid::GetExtent (  int &   ,
int &   ,
int &   ,
int &   ,
int &   ,
int &
)  [virtual]


Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkStructuredGrid::GetExtent (  int   [6] )  [virtual]


Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

unsigned long vtkStructuredGrid::GetActualMemorySize (    )  [virtual]


Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.

Reimplemented from vtkPointSet.

void vtkStructuredGrid::ShallowCopy (  vtkDataObject *    src )  [virtual]


Shallow and Deep copy.

Reimplemented from vtkPointSet.

void vtkStructuredGrid::DeepCopy (  vtkDataObject *    src )  [virtual]


Shallow and Deep copy.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::GetExtentType (    )  [inline, protected, virtual]


Reimplemented from vtkDataObject.

Definition at line 219 of file vtkStructuredGrid.h.

virtual void vtkStructuredGrid::Crop (    )  [protected, virtual]


Reallocates and copies to set the Extent to the UpdateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent.

Reimplemented from vtkDataObject.

void vtkStructuredGrid::AllocatePointVisibility (    )  [protected]


Member Data Documentation

vtkVertex* vtkStructuredGrid::Vertex [protected]


Definition at line 212 of file vtkStructuredGrid.h.

vtkLine* vtkStructuredGrid::Line [protected]


Definition at line 213 of file vtkStructuredGrid.h.

vtkQuad* vtkStructuredGrid::Quad [protected]


Definition at line 214 of file vtkStructuredGrid.h.

vtkHexahedron* vtkStructuredGrid::Hexahedron [protected]


Definition at line 215 of file vtkStructuredGrid.h.

vtkEmptyCell* vtkStructuredGrid::EmptyCell [protected]


Definition at line 216 of file vtkStructuredGrid.h.

int vtkStructuredGrid::Dimensions[3] [protected]


Definition at line 226 of file vtkStructuredGrid.h.

int vtkStructuredGrid::DataDescription [protected]


Definition at line 227 of file vtkStructuredGrid.h.

int vtkStructuredGrid::Blanking [protected]


Definition at line 228 of file vtkStructuredGrid.h.

vtkUnsignedCharArray* vtkStructuredGrid::PointVisibility [protected]


Definition at line 229 of file vtkStructuredGrid.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:43:07 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
