vtkTransmitPolyDataPiece Class Reference

Return specified piece, including specified. More...

#include <vtkTransmitPolyDataPiece.h>

Inheritance diagram for vtkTransmitPolyDataPiece:

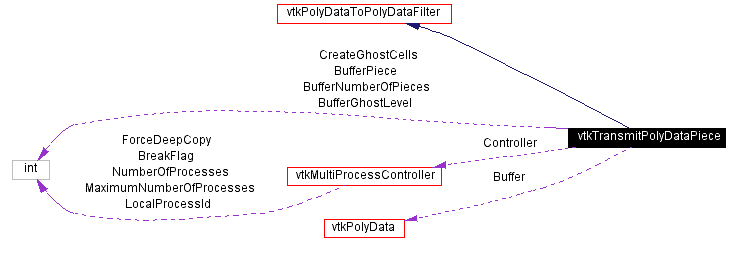

[legend]Collaboration diagram for vtkTransmitPolyDataPiece:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
virtual void	SetCreateGhostCells (int)
virtual int	GetCreateGhostCells ()
virtual void	CreateGhostCellsOn ()
virtual void	CreateGhostCellsOff ()
Static Public Methods
vtkTransmitPolyDataPiece *	New ()
int	IsTypeOf (const char *type)
vtkTransmitPolyDataPiece *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkTransmitPolyDataPiece ()
	~vtkTransmitPolyDataPiece ()
	vtkTransmitPolyDataPiece (const vtkTransmitPolyDataPiece &)
void	operator= (const vtkTransmitPolyDataPiece &)
void	Execute ()
void	RootExecute ()
void	SatelliteExecute (int procId)
void	ExecuteInformation ()
void	ComputeInputUpdateExtents (vtkDataObject *out)
Protected Attributes
vtkPolyData *	Buffer
int	BufferPiece
int	BufferNumberOfPieces
int	BufferGhostLevel
int	CreateGhostCells
vtkMultiProcessController *	Controller

---

Detailed Description

Return specified piece, including specified.

Date:

2001/10/31 16:36:15

Revision:

1.2

number of ghost levels. .DESCRIPTION This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Definition at line 59 of file vtkTransmitPolyDataPiece.h.

---

Constructor & Destructor Documentation

vtkTransmitPolyDataPiece::vtkTransmitPolyDataPiece (    )  [protected]

vtkTransmitPolyDataPiece::~vtkTransmitPolyDataPiece (    )  [protected]

vtkTransmitPolyDataPiece::vtkTransmitPolyDataPiece (  const vtkTransmitPolyDataPiece &    )  [protected]

---

Member Function Documentation

vtkTransmitPolyDataPiece* vtkTransmitPolyDataPiece::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkPolyDataSource.

virtual const char* vtkTransmitPolyDataPiece::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

int vtkTransmitPolyDataPiece::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

virtual int vtkTransmitPolyDataPiece::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

vtkTransmitPolyDataPiece* vtkTransmitPolyDataPiece::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter.

void vtkTransmitPolyDataPiece::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkTransmitPolyDataPiece::SetController (  vtkMultiProcessController *    )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitPolyDataPiece::GetController (    )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitPolyDataPiece::SetCreateGhostCells (  int    )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitPolyDataPiece::GetCreateGhostCells (    )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitPolyDataPiece::CreateGhostCellsOn (    )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitPolyDataPiece::CreateGhostCellsOff (    )  [virtual]

Turn on/off creating ghost cells (on by default).

void vtkTransmitPolyDataPiece::operator= (  const vtkTransmitPolyDataPiece &    )  [protected]

void vtkTransmitPolyDataPiece::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkTransmitPolyDataPiece::RootExecute (    )  [protected]

void vtkTransmitPolyDataPiece::SatelliteExecute (  int    procId )  [protected]

void vtkTransmitPolyDataPiece::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

void vtkTransmitPolyDataPiece::ComputeInputUpdateExtents (  vtkDataObject *    out )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented from vtkPolyDataSource.

---

Member Data Documentation

vtkPolyData* vtkTransmitPolyDataPiece::Buffer [protected]

Definition at line 93 of file vtkTransmitPolyDataPiece.h.

int vtkTransmitPolyDataPiece::BufferPiece [protected]

Definition at line 94 of file vtkTransmitPolyDataPiece.h.

int vtkTransmitPolyDataPiece::BufferNumberOfPieces [protected]

Definition at line 95 of file vtkTransmitPolyDataPiece.h.

int vtkTransmitPolyDataPiece::BufferGhostLevel [protected]

Definition at line 96 of file vtkTransmitPolyDataPiece.h.

int vtkTransmitPolyDataPiece::CreateGhostCells [protected]

Definition at line 98 of file vtkTransmitPolyDataPiece.h.

vtkMultiProcessController* vtkTransmitPolyDataPiece::Controller [protected]

Definition at line 99 of file vtkTransmitPolyDataPiece.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkTransmitPolyDataPiece.h

---
