vtkMultiProcessController Class Reference

Multiprocessing communication superclass. More...

#include <vtkMultiProcessController.h>

Inheritance diagram for vtkMultiProcessController:

Inheritance graph
[legend]

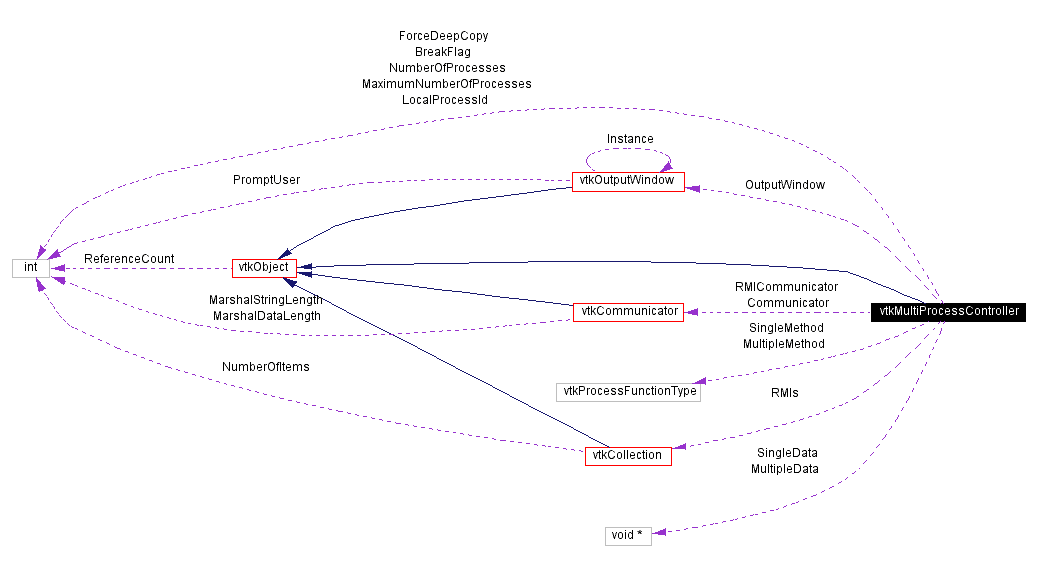

Collaboration diagram for vtkMultiProcessController:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Consts {
  MAX_PROCESSES = 8192, ANY_SOURCE = -1, INVALID_SOURCE = -2, RMI_TAG = 315167,
  RMI_ARG_TAG = 315168, BREAK_RMI_TAG = 239954
}

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Initialize (int *vtkNotUsed(argc), char ***vtkNotUsed(arcv))=0
virtual void Finalize ()=0
virtual void SingleMethodExecute ()=0
virtual void MultipleMethodExecute ()=0
virtual int GetLocalProcessId ()
virtual void CreateOutputWindow ()=0
void AddRMI (vtkRMIFunctionType, void *localArg, int tag)
void TriggerRMI (int remoteProcessId, void *arg, int argLength, int tag)
void ProcessRMIs ()
virtual void Barrier ()=0
int Send (int *data, int length, int remoteProcessId, int tag)
int Send (unsigned long *data, int length, int remoteProcessId, int tag)
int Send (char *data, int length, int remoteProcessId, int tag)
int Send (unsigned char *data, int length, int remoteProcessId, int tag)
int Send (float *data, int length, int remoteProcessId, int tag)
int Send (double *data, int length, int remoteProcessId, int tag)
int Send (vtkDataObject *data, int remoteId, int tag)
int Send (vtkDataArray *data, int remoteId, int tag)
int Receive (int *data, int length, int remoteProcessId, int tag)
int Receive (unsigned long *data, int length, int remoteProcessId, int tag)
int Receive (char *data, int length, int remoteProcessId, int tag)
int Receive (unsigned char *data, int length, int remoteProcessId, int tag)
int Receive (float *data, int length, int remoteProcessId, int tag)
int Receive (double *data, int length, int remoteProcessId, int tag)
int Receive (vtkDataObject *data, int remoteId, int tag)
int Receive (vtkDataArray *data, int remoteId, int tag)
virtual void SetNumberOfProcesses (int num)
virtual int GetNumberOfProcesses ()
void SetSingleMethod (vtkProcessFunctionType, void *data)
void SetMultipleMethod (int index, vtkProcessFunctionType, void *data)
virtual void SetForceDeepCopy (int)
virtual int GetForceDeepCopy ()
virtual void ForceDeepCopyOn ()
virtual void ForceDeepCopyOff ()
void RemoveRMI (vtkRMIFunctionType f, void *arg, int tag)
void TriggerRMI (int remoteProcessId, char *arg, int tag)
void TriggerRMI (int remoteProcessId, int tag)
virtual void SetBreakFlag (int)
virtual int GetBreakFlag ()
virtual vtkCommunicator * GetCommunicator ()

Static Public Methods

vtkMultiProcessController * New ()
int IsTypeOf (const char *type)
vtkMultiProcessController * SafeDownCast (vtkObject *o)
vtkMultiProcessController * GetGlobalController ()
void SetGlobalController (vtkMultiProcessController *controller)

Protected Methods

 vtkMultiProcessController ()
 ~vtkMultiProcessController ()
void ProcessRMI (int remoteProcessId, void *arg, int argLength, int rmiTag)
virtual vtkMultiProcessController * GetLocalController ()

Protected Attributes

int MaximumNumberOfProcesses
int NumberOfProcesses
int LocalProcessId
vtkProcessFunctionType SingleMethod
void * SingleData
vtkProcessFunctionType MultipleMethod [MAX_PROCESSES]
void * MultipleData [MAX_PROCESSES]
vtkCollection * RMIs
int BreakFlag
int ForceDeepCopy
vtkOutputWindow * OutputWindow
vtkCommunicator * Communicator
vtkCommunicator * RMICommunicator

Detailed Description

Multiprocessing communication superclass.

Date:
2001/11/13 14:25:57
Revision:
1.11

vtkMultiProcessController is used to control multiple processes/threads in a shared memory/distributed computing environment. It has methods for executing single/multiple method(s) on multiple processors, triggering registered callbacks (Remote Methods) (AddRMI(), TriggerRMI()) and communication. Please note that the communication is done using the communicator which is accessible to the user. Therefore it is possible to get the communicator with GetCommunicator() and use it to send and receive data. This is the encoured communication method. The internal (RMI) communications are done using a second internal communicator (called RMICommunicator). For the threaded controllers, this is identical to the user communicator. However, for the MPI controller, this is a communicator which shares the same process group as the user communicator but uses a different context. Therefore, the user and the internal communications can not interfere with each other (even if the same message tag is used).

See also:
vtkMPIController vtkThreadedController vtkInputPort vtkOutputPort vtkCommunicator vtkSharedMemoryCommunicator vtkMPICommunicator
Examples:
vtkMultiProcessController (Examples)
Tests:
vtkMultiProcessController (Tests)

Definition at line 99 of file vtkMultiProcessController.h.

Member Enumeration Documentation

enum vtkMultiProcessController::Consts


Enumeration values:
MAX_PROCESSES
ANY_SOURCE
INVALID_SOURCE
RMI_TAG
RMI_ARG_TAG
BREAK_RMI_TAG

Reimplemented in vtkSocketController.

Definition at line 226 of file vtkMultiProcessController.h.

Constructor & Destructor Documentation

vtkMultiProcessController::vtkMultiProcessController (    )  [protected]


vtkMultiProcessController::~vtkMultiProcessController (    )  [protected]


Member Function Documentation

vtkMultiProcessController* vtkMultiProcessController::New (    )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

virtual const char* vtkMultiProcessController::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

int vtkMultiProcessController::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

virtual int vtkMultiProcessController::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

vtkMultiProcessController* vtkMultiProcessController::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

void vtkMultiProcessController::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

virtual void vtkMultiProcessController::Initialize (  int *vtkNotUsed(argc)   ,
char ***vtkNotUsed(arcv)
)  [pure virtual]


This method is for setting up the processes. If a subclass needs to initialize process communication (i.e. MPI) it would over ride this method.

Referenced by vtkSocketController::Initialize().

virtual void vtkMultiProcessController::Finalize (    )  [pure virtual]


This method is for cleaning up. If a subclass needs to clean up process communication (i.e. MPI) it would over ride this method.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

virtual void vtkMultiProcessController::SetNumberOfProcesses (  int    num )  [virtual]


Set the number of processes you will be using. This defaults to the maximum number available. If you set this to a value higher than the default, you will get an error.

Reimplemented in vtkSocketController.

virtual int vtkMultiProcessController::GetNumberOfProcesses (    )  [virtual]


Set the number of processes you will be using. This defaults to the maximum number available. If you set this to a value higher than the default, you will get an error.

void vtkMultiProcessController::SetSingleMethod (  vtkProcessFunctionType   ,
void *    data
)


Set the SingleMethod to f() and the UserData of the for the method to be executed by all of the processes when SingleMethodExecute is called. All the processes will start by calling this function.

virtual void vtkMultiProcessController::SingleMethodExecute (    )  [pure virtual]


Execute the SingleMethod (as define by SetSingleMethod) using this->NumberOfProcesses processes. This will only return when all the processes finish executing their methods.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

void vtkMultiProcessController::SetMultipleMethod (  int    index,
vtkProcessFunctionType   ,
void *    data
)


Set the MultipleMethod to f() and the UserData of the for the method to be executed by the process index when MultipleMethodExecute is called. This is for having each process start with a different function and data argument.

virtual void vtkMultiProcessController::MultipleMethodExecute (    )  [pure virtual]


Execute the MultipleMethods (as define by calling SetMultipleMethod for each of the required this->NumberOfProcesses methods) using this->NumberOfProcesses processes.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

virtual int vtkMultiProcessController::GetLocalProcessId (    )  [inline, virtual]


Tells you which process [0, NumProcess) you are in.

Reimplemented in vtkThreadedController.

Definition at line 153 of file vtkMultiProcessController.h.

vtkMultiProcessController* vtkMultiProcessController::GetGlobalController (    )  [static]


This convenience method returns the controller associated with the local process. It returns NULL until the processes are spawned. It is better if you hang on to the controller passed as an argument to the SingleMethod or MultipleMethod functions.

virtual void vtkMultiProcessController::CreateOutputWindow (    )  [pure virtual]


This method can be used to tell the controller to create a special output window in which all messages are preceded by the process id.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

virtual void vtkMultiProcessController::SetForceDeepCopy (  int    )  [virtual]


By default, sending objects use shallow copy whenever possible. This flag forces the controller to use deep copies instead. This is necessary when asynchronous processing occurs (i.e. pipeline parallelism). This is only important when using vtkThreadedController.

virtual int vtkMultiProcessController::GetForceDeepCopy (    )  [virtual]


By default, sending objects use shallow copy whenever possible. This flag forces the controller to use deep copies instead. This is necessary when asynchronous processing occurs (i.e. pipeline parallelism). This is only important when using vtkThreadedController.

virtual void vtkMultiProcessController::ForceDeepCopyOn (    )  [virtual]


By default, sending objects use shallow copy whenever possible. This flag forces the controller to use deep copies instead. This is necessary when asynchronous processing occurs (i.e. pipeline parallelism). This is only important when using vtkThreadedController.

virtual void vtkMultiProcessController::ForceDeepCopyOff (    )  [virtual]


By default, sending objects use shallow copy whenever possible. This flag forces the controller to use deep copies instead. This is necessary when asynchronous processing occurs (i.e. pipeline parallelism). This is only important when using vtkThreadedController.

void vtkMultiProcessController::AddRMI (  vtkRMIFunctionType   ,
void *    localArg,
int    tag
)


Register remote method invocation in the receiving process which makes the call. It must have a unique tag as an RMI id. The vtkRMIFunctionType has several arguments: localArg (same as passed in), remoteArg, remoteArgLength (memory passed by process triggering the RMI), remoteProcessId.

void vtkMultiProcessController::RemoveRMI (  vtkRMIFunctionType    f,
void *    arg,
int    tag
)  [inline]


Take an RMI away.

Definition at line 188 of file vtkMultiProcessController.h.

void vtkMultiProcessController::TriggerRMI (  int    remoteProcessId,
void *    arg,
int    argLength,
int    tag
)


A method to trigger a method invocation in another process.

void vtkMultiProcessController::TriggerRMI (  int    remoteProcessId,
char *    arg,
int    tag
)  [inline]


Convenience method when the arg is a string.

Definition at line 198 of file vtkMultiProcessController.h.

void vtkMultiProcessController::TriggerRMI (  int    remoteProcessId,
int    tag
)  [inline]


Convenience method when there is no argument.

Definition at line 204 of file vtkMultiProcessController.h.

void vtkMultiProcessController::ProcessRMIs (    )


Calling this method gives control to the controller to start processing RMIs.

virtual void vtkMultiProcessController::SetBreakFlag (  int    )  [virtual]


Setting this flag to 1 will cause the ProcessRMIs loop to return. This also causes vtkUpStreamPorts to return from their WaitForUpdate loops.

virtual int vtkMultiProcessController::GetBreakFlag (    )  [virtual]


Setting this flag to 1 will cause the ProcessRMIs loop to return. This also causes vtkUpStreamPorts to return from their WaitForUpdate loops.

virtual vtkCommunicator* vtkMultiProcessController::GetCommunicator (    )  [virtual]


virtual void vtkMultiProcessController::Barrier (    )  [pure virtual]


This method can be used to synchronize processes/threads.

Reimplemented in vtkMPIController, vtkSocketController, and vtkThreadedController.

void vtkMultiProcessController::SetGlobalController (  vtkMultiProcessController *    controller )  [static]


int vtkMultiProcessController::Send (  int *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process.

Definition at line 360 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  unsigned long *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 373 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  char *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 387 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  unsigned char *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 400 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  float *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 413 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  double *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 426 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  vtkDataObject *    data,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 334 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send (  vtkDataArray *    data,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 347 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  int *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data.

Definition at line 480 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  unsigned long *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 493 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  char *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 507 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  unsigned char *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 520 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  float *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 533 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  double *    data,
int    length,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 546 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  vtkDataObject *    data,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 454 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive (  vtkDataArray *    data,
int    remoteThreadId,
int    tag
)  [inline]


Definition at line 467 of file vtkMultiProcessController.h.

void vtkMultiProcessController::ProcessRMI (  int    remoteProcessId,
void *    arg,
int    argLength,
int    rmiTag
)  [protected]


virtual vtkMultiProcessController* vtkMultiProcessController::GetLocalController (    )  [protected, virtual]


Reimplemented in vtkThreadedController.

Member Data Documentation

int vtkMultiProcessController::MaximumNumberOfProcesses [protected]


Definition at line 285 of file vtkMultiProcessController.h.

int vtkMultiProcessController::NumberOfProcesses [protected]


Definition at line 286 of file vtkMultiProcessController.h.

int vtkMultiProcessController::LocalProcessId [protected]


Definition at line 288 of file vtkMultiProcessController.h.

vtkProcessFunctionType vtkMultiProcessController::SingleMethod [protected]


Definition at line 290 of file vtkMultiProcessController.h.

void* vtkMultiProcessController::SingleData [protected]


Definition at line 291 of file vtkMultiProcessController.h.

vtkProcessFunctionType vtkMultiProcessController::MultipleMethod[MAX_PROCESSES] [protected]


Definition at line 292 of file vtkMultiProcessController.h.

void* vtkMultiProcessController::MultipleData[MAX_PROCESSES] [protected]


Definition at line 293 of file vtkMultiProcessController.h.

vtkCollection* vtkMultiProcessController::RMIs [protected]


Definition at line 295 of file vtkMultiProcessController.h.

int vtkMultiProcessController::BreakFlag [protected]


Definition at line 299 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ForceDeepCopy [protected]


Definition at line 309 of file vtkMultiProcessController.h.

vtkOutputWindow* vtkMultiProcessController::OutputWindow [protected]


Definition at line 311 of file vtkMultiProcessController.h.

vtkCommunicator* vtkMultiProcessController::Communicator [protected]


Definition at line 316 of file vtkMultiProcessController.h.

vtkCommunicator* vtkMultiProcessController::RMICommunicator [protected]


Definition at line 326 of file vtkMultiProcessController.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:36:47 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
