vtkTransmitUnstructuredGridPiece Class Reference

Return specified piece, including specified. More...

#include <vtkTransmitUnstructuredGridPiece.h>

Inheritance diagram for vtkTransmitUnstructuredGridPiece:

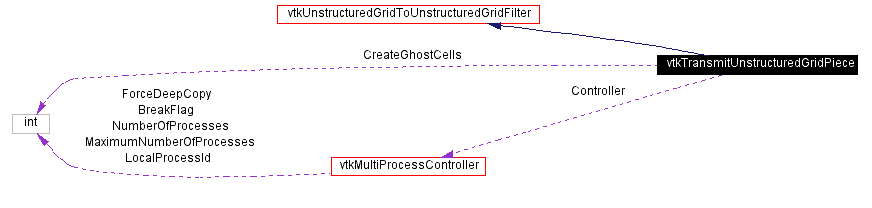

[legend]Collaboration diagram for vtkTransmitUnstructuredGridPiece:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()
virtual void	SetCreateGhostCells (int)
virtual int	GetCreateGhostCells ()
virtual void	CreateGhostCellsOn ()
virtual void	CreateGhostCellsOff ()
Static Public Methods
vtkTransmitUnstructuredGridPiece *	New ()
int	IsTypeOf (const char *type)
vtkTransmitUnstructuredGridPiece *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkTransmitUnstructuredGridPiece ()
	~vtkTransmitUnstructuredGridPiece ()
	vtkTransmitUnstructuredGridPiece (const vtkTransmitUnstructuredGridPiece &)
void	operator= (const vtkTransmitUnstructuredGridPiece &)
void	Execute ()
void	RootExecute ()
void	SatelliteExecute (int procId)
void	ExecuteInformation ()
void	ComputeInputUpdateExtents (vtkDataObject *out)
Protected Attributes
int	CreateGhostCells
vtkMultiProcessController *	Controller

---

Detailed Description

Return specified piece, including specified.

Date:

2001/10/31 16:36:15

Revision:

1.2

number of ghost levels. .DESCRIPTION This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Definition at line 59 of file vtkTransmitUnstructuredGridPiece.h.

---

Constructor & Destructor Documentation

vtkTransmitUnstructuredGridPiece::vtkTransmitUnstructuredGridPiece (    )  [protected]

vtkTransmitUnstructuredGridPiece::~vtkTransmitUnstructuredGridPiece (    )  [inline, protected]

Definition at line 82 of file vtkTransmitUnstructuredGridPiece.h.

vtkTransmitUnstructuredGridPiece::vtkTransmitUnstructuredGridPiece (  const vtkTransmitUnstructuredGridPiece &    )  [protected]

---

Member Function Documentation

vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkUnstructuredGridSource.

virtual const char* vtkTransmitUnstructuredGridPiece::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

int vtkTransmitUnstructuredGridPiece::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

virtual int vtkTransmitUnstructuredGridPiece::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkUnstructuredGridToUnstructuredGridFilter.

void vtkTransmitUnstructuredGridPiece::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkTransmitUnstructuredGridPiece::SetController (  vtkMultiProcessController *    )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitUnstructuredGridPiece::GetController (    )  [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitUnstructuredGridPiece::SetCreateGhostCells (  int    )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitUnstructuredGridPiece::GetCreateGhostCells (    )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitUnstructuredGridPiece::CreateGhostCellsOn (    )  [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitUnstructuredGridPiece::CreateGhostCellsOff (    )  [virtual]

Turn on/off creating ghost cells (on by default).

void vtkTransmitUnstructuredGridPiece::operator= (  const vtkTransmitUnstructuredGridPiece &    )  [protected]

void vtkTransmitUnstructuredGridPiece::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkTransmitUnstructuredGridPiece::RootExecute (    )  [protected]

void vtkTransmitUnstructuredGridPiece::SatelliteExecute (  int    procId )  [protected]

void vtkTransmitUnstructuredGridPiece::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

void vtkTransmitUnstructuredGridPiece::ComputeInputUpdateExtents (  vtkDataObject *    out )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented from vtkUnstructuredGridSource.

---

Member Data Documentation

int vtkTransmitUnstructuredGridPiece::CreateGhostCells [protected]

Definition at line 93 of file vtkTransmitUnstructuredGridPiece.h.

vtkMultiProcessController* vtkTransmitUnstructuredGridPiece::Controller [protected]

Definition at line 94 of file vtkTransmitUnstructuredGridPiece.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkTransmitUnstructuredGridPiece.h

---
