vtkVectorText Class Reference

create polygonal text. More...

#include <vtkVectorText.h>

Inheritance diagram for vtkVectorText:

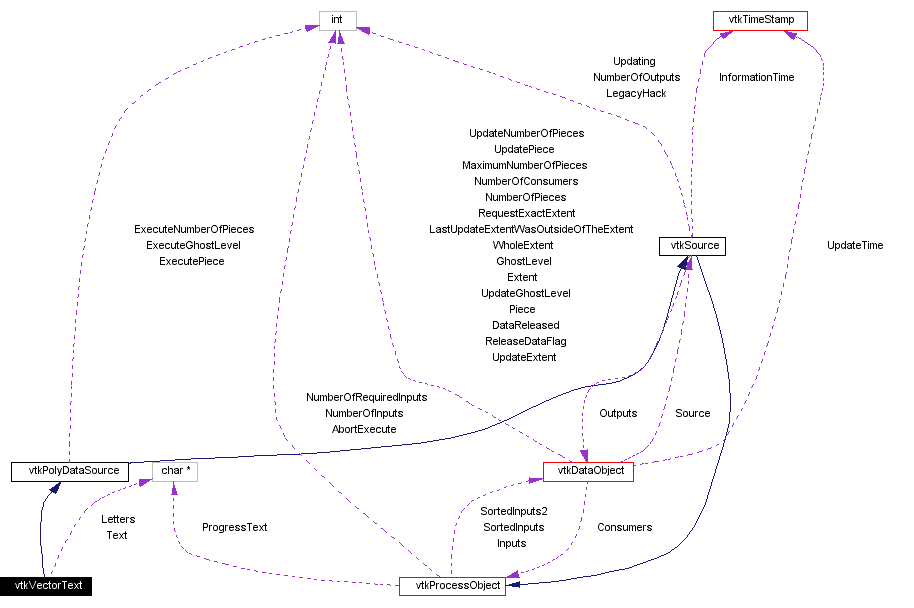

[legend]Collaboration diagram for vtkVectorText:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetText (const char *)
virtual char *	GetText ()
Static Public Methods
vtkVectorText *	New ()
int	IsTypeOf (const char *type)
vtkVectorText *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkVectorText ()
	~vtkVectorText ()
void	Execute ()
Protected Attributes
char *	Text
char *	Letters [127]

---

Detailed Description

create polygonal text.

Date:

2001/10/21 13:59:19

Revision:

1.29

vtkVectorText generates vtkPolyData from an input text string. Besides the ASCII alphanumeric characters a-z, A-Z, 0-9, vtkVectorText also supports ASCII punctuation marks. (The supported ASCII character set are the codes (33-126) inclusive.) The only control character supported is the line feed character "
", which advances to a new line.

To use thie class, you normally couple it with a vtkPolyDataMapper and a vtkActor. In this case you would use the vtkActor's transformation methods to position, orient, and scale the text. You may also wish to use a vtkFollower to orient the text so that it always faces the camera.

See also:

vtkTextMapper vtkCaptionActor2D

Examples:

vtkVectorText (Examples)

Tests:

vtkVectorText (Tests)

Definition at line 73 of file vtkVectorText.h.

---

Constructor & Destructor Documentation

vtkVectorText::vtkVectorText (    )  [protected]

vtkVectorText::~vtkVectorText (    )  [protected]

---

Member Function Documentation

vtkVectorText* vtkVectorText::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkPolyDataSource.

virtual const char* vtkVectorText::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

int vtkVectorText::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

virtual int vtkVectorText::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

vtkVectorText* vtkVectorText::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataSource.

void vtkVectorText::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkVectorText::SetText (  const char *    )  [virtual]

Set/Get the text to be drawn.

virtual char* vtkVectorText::GetText (    )  [virtual]

Set/Get the text to be drawn.

void vtkVectorText::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

Member Data Documentation

char* vtkVectorText::Text [protected]

Definition at line 91 of file vtkVectorText.h.

char* vtkVectorText::Letters[127] [protected]

Definition at line 92 of file vtkVectorText.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkVectorText.h

---
