vtkPolyDataMapper Class Reference

map vtkPolyData to graphics primitives. More...

#include <vtkPolyDataMapper.h>

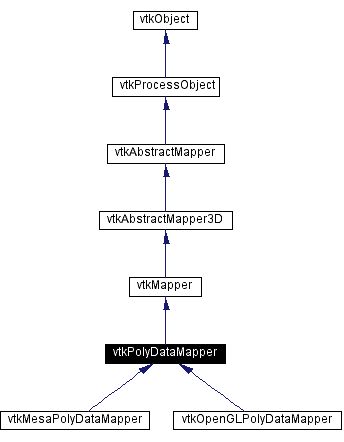

Inheritance diagram for vtkPolyDataMapper:

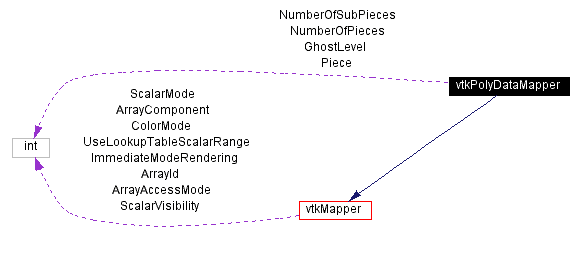

[legend]Collaboration diagram for vtkPolyDataMapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	RenderPiece (vtkRenderer *ren, vtkActor *act)=0
virtual void	Render (vtkRenderer *ren, vtkActor *act)
void	Update ()
void	ShallowCopy (vtkAbstractMapper *m)
void	SetInput (vtkPolyData *in)
vtkPolyData *	GetInput ()
virtual void	SetPiece (int)
virtual int	GetPiece ()
virtual void	SetNumberOfPieces (int)
virtual int	GetNumberOfPieces ()
virtual void	SetNumberOfSubPieces (int)
virtual int	GetNumberOfSubPieces ()
virtual void	SetGhostLevel (int)
virtual int	GetGhostLevel ()
virtual float *	GetBounds ()
virtual void	GetBounds (float bounds[6])
Static Public Methods
vtkPolyDataMapper *	New ()
int	IsTypeOf (const char *type)
vtkPolyDataMapper *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPolyDataMapper ()
	~vtkPolyDataMapper ()
Protected Attributes
int	Piece
int	NumberOfPieces
int	NumberOfSubPieces
int	GhostLevel

---

Detailed Description

map vtkPolyData to graphics primitives.

Date:

2001/10/21 14:06:47

Revision:

1.28

vtkPolyDataMapper is a class that maps polygonal data (i.e., vtkPolyData) to graphics primitives. vtkPolyDataMapper serves as a superclass for device-specific poly data mappers, that actually do the mapping to the rendering/graphics hardware/software. It is now possible to set a memory limit for the pipeline in the mapper. If the total estimated memory usage of the pipeline is larger than this limit, the mapper will divide the data into pieces and render each in a for loop.

Examples:

vtkPolyDataMapper (Examples)

Tests:

vtkPolyDataMapper (Tests)

Definition at line 69 of file vtkPolyDataMapper.h.

---

Constructor & Destructor Documentation

vtkPolyDataMapper::vtkPolyDataMapper (    )  [protected]

vtkPolyDataMapper::~vtkPolyDataMapper (    )  [inline, protected]

Definition at line 120 of file vtkPolyDataMapper.h.

---

Member Function Documentation

vtkPolyDataMapper* vtkPolyDataMapper::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkProcessObject. Reimplemented in vtkMesaPolyDataMapper, and vtkOpenGLPolyDataMapper.

virtual const char* vtkPolyDataMapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper. Reimplemented in vtkMesaPolyDataMapper, and vtkOpenGLPolyDataMapper.

int vtkPolyDataMapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper. Reimplemented in vtkMesaPolyDataMapper, and vtkOpenGLPolyDataMapper.

virtual int vtkPolyDataMapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper. Reimplemented in vtkMesaPolyDataMapper, and vtkOpenGLPolyDataMapper.

vtkPolyDataMapper* vtkPolyDataMapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkMapper. Reimplemented in vtkMesaPolyDataMapper, and vtkOpenGLPolyDataMapper.

void vtkPolyDataMapper::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkMapper.

virtual void vtkPolyDataMapper::RenderPiece (  vtkRenderer *    ren, vtkActor *    a )  [pure virtual]

Implemented by sub classes. Actual rendering is done here. Reimplemented in vtkMesaPolyDataMapper, and vtkOpenGLPolyDataMapper.

virtual void vtkPolyDataMapper::Render (  vtkRenderer *    ren, vtkActor *    act )  [virtual]

This calls RenderPiece (in a for loop is streaming is necessary). Reimplemented from vtkMapper.

void vtkPolyDataMapper::SetInput (  vtkPolyData *    in )

Specify the input data to map.

vtkPolyData* vtkPolyDataMapper::GetInput (    )

Specify the input data to map. Reimplemented from vtkMapper.

void vtkPolyDataMapper::Update (  void    )  [virtual]

Update that sets the update piece first. Reimplemented from vtkMapper.

virtual void vtkPolyDataMapper::SetPiece (  int    )  [virtual]

If you want only a part of the data, specify by setting the piece.

virtual int vtkPolyDataMapper::GetPiece (    )  [virtual]

If you want only a part of the data, specify by setting the piece.

virtual void vtkPolyDataMapper::SetNumberOfPieces (  int    )  [virtual]

If you want only a part of the data, specify by setting the piece.

virtual int vtkPolyDataMapper::GetNumberOfPieces (    )  [virtual]

If you want only a part of the data, specify by setting the piece.

virtual void vtkPolyDataMapper::SetNumberOfSubPieces (  int    )  [virtual]

If you want only a part of the data, specify by setting the piece.

virtual int vtkPolyDataMapper::GetNumberOfSubPieces (    )  [virtual]

If you want only a part of the data, specify by setting the piece.

virtual void vtkPolyDataMapper::SetGhostLevel (  int    )  [virtual]

Set the number of ghost cells to return.

virtual int vtkPolyDataMapper::GetGhostLevel (    )  [virtual]

Set the number of ghost cells to return.

virtual float* vtkPolyDataMapper::GetBounds (    )  [virtual]

Return bounding box (array of six floats) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax). Reimplemented from vtkMapper.

virtual void vtkPolyDataMapper::GetBounds (  float    bounds[6] )  [inline, virtual]

Return bounding box (array of six floats) of data expressed as (xmin,xmax, ymin,ymax, zmin,zmax). Reimplemented from vtkMapper. Definition at line 111 of file vtkPolyDataMapper.h.

void vtkPolyDataMapper::ShallowCopy (  vtkAbstractMapper *    m )

Make a shallow copy of this mapper. Reimplemented from vtkMapper.

---

Member Data Documentation

int vtkPolyDataMapper::Piece [protected]

Definition at line 122 of file vtkPolyDataMapper.h.

int vtkPolyDataMapper::NumberOfPieces [protected]

Definition at line 123 of file vtkPolyDataMapper.h.

int vtkPolyDataMapper::NumberOfSubPieces [protected]

Definition at line 124 of file vtkPolyDataMapper.h.

int vtkPolyDataMapper::GhostLevel [protected]

Definition at line 125 of file vtkPolyDataMapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkPolyDataMapper.h

---
