vtkVolumeProVG500Mapper Class Reference

Superclass for VG500 board. More...

#include <vtkVolumeProVG500Mapper.h>

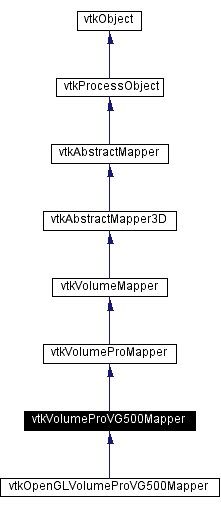

Inheritance diagram for vtkVolumeProVG500Mapper:

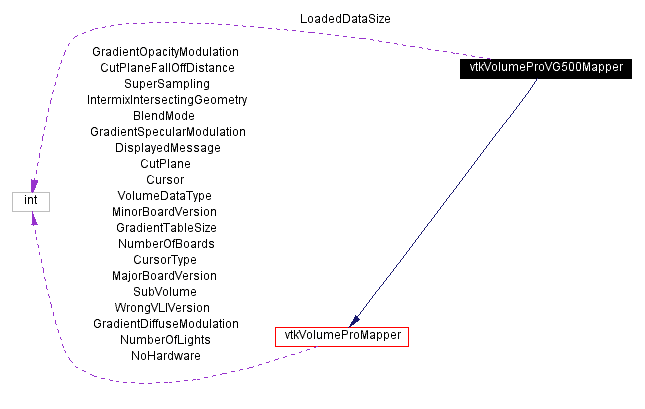

[legend]Collaboration diagram for vtkVolumeProVG500Mapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	Render (vtkRenderer *, vtkVolume *)
virtual int	GetAvailableBoardMemory ()
virtual void	GetLockSizesForBoardMemory (unsigned int type, unsigned int *xSize, unsigned int *ySize, unsigned int *zSize)
Static Public Methods
int	IsTypeOf (const char *type)
vtkVolumeProVG500Mapper *	SafeDownCast (vtkObject *o)
vtkVolumeProVG500Mapper *	New ()
Protected Methods
	vtkVolumeProVG500Mapper ()
	~vtkVolumeProVG500Mapper ()
void	UpdateCamera (vtkRenderer *, vtkVolume *)
void	UpdateLights (vtkRenderer *, vtkVolume *)
void	UpdateProperties (vtkRenderer *, vtkVolume *)
void	UpdateVolume (vtkRenderer *, vtkVolume *)
void	UpdateCropping (vtkRenderer *, vtkVolume *)
void	UpdateCursor (vtkRenderer *, vtkVolume *)
void	UpdateCutPlane (vtkRenderer *, vtkVolume *)
virtual void	RenderHexagon (vtkRenderer *vtkNotUsed(ren), vtkVolume *vtkNotUsed(vol), VLIPixel *vtkNotUsed(basePlane), int size[2], VLIVector3D hexagon[6], VLIVector2D textureCoords[6])
void	CorrectBasePlaneSize (VLIPixel *inBase, int inSize[2], VLIPixel **outBase, int outSize[2], VLIVector2D textureCoords[6])
Protected Attributes
int	LoadedDataSize [3]

---

Detailed Description

Superclass for VG500 board.

Date:

2001/11/13 14:17:31

Revision:

1.17

vtkVolumeProVG500Mapper is the superclass for VolumePRO volume rendering mappers based on the VG500 chip. Subclasses are for underlying graphics languages. Users should not create subclasses directly - a vtkVolumeProMapper will automatically create the object of the right type.

This class is not included in the Rendering CMakeLists by default. If you want to add this class to your vtk build, you need to have the vli header and library files, and you will need to perform the following steps:

1. Run cmake, and set the VTK_USE_VOLUMEPRO flag to true. 2. If the libary file (VLI_LIBRARY_FOR_VG500) is not found by cmake, set the path to that file, and rerun cmake. 3. If the header file (VLI_INCLUDE_PATH_FOR_VG500) is not found by cmake, set the path to that file, and rerun cmake. 4. Rebuild VTK.

For more information on the VolumePRO hardware, please see:

http://www.terarecon.com/3d_products.shtml

If you encounter any problems with this class, please inform Kitware, Inc. at kitware@kitware.com.

See also:

vtkVolumeMapper vtkVolumeProMapper vtkOpenGLVolumeProVG500Mapper

Definition at line 94 of file vtkVolumeProVG500Mapper.h.

---

Constructor & Destructor Documentation

vtkVolumeProVG500Mapper::vtkVolumeProVG500Mapper (    )  [protected]

vtkVolumeProVG500Mapper::~vtkVolumeProVG500Mapper (    )  [protected]

---

Member Function Documentation

virtual const char* vtkVolumeProVG500Mapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVG500Mapper.

int vtkVolumeProVG500Mapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVG500Mapper.

virtual int vtkVolumeProVG500Mapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVG500Mapper.

vtkVolumeProVG500Mapper* vtkVolumeProVG500Mapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVG500Mapper.

vtkVolumeProVG500Mapper* vtkVolumeProVG500Mapper::New (    )  [static]

Automatically create the proper subclass Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVG500Mapper.

virtual void vtkVolumeProVG500Mapper::Render (  vtkRenderer *    ren, vtkVolume *    vol )  [virtual]

Render the image using the hardware and place it in the frame buffer Reimplemented from vtkVolumeProMapper.

virtual int vtkVolumeProVG500Mapper::GetAvailableBoardMemory (    )  [virtual]

Render the image using the hardware and place it in the frame buffer Reimplemented from vtkVolumeProMapper.

virtual void vtkVolumeProVG500Mapper::GetLockSizesForBoardMemory (  unsigned int    type, unsigned int *    xSize, unsigned int *    ySize, unsigned int *    zSize )  [virtual]

Render the image using the hardware and place it in the frame buffer

void vtkVolumeProVG500Mapper::UpdateCamera (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVG500Mapper::UpdateLights (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVG500Mapper::UpdateProperties (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVG500Mapper::UpdateVolume (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVG500Mapper::UpdateCropping (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVG500Mapper::UpdateCursor (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVG500Mapper::UpdateCutPlane (  vtkRenderer *   , vtkVolume *    )  [protected]

virtual void vtkVolumeProVG500Mapper::RenderHexagon (  vtkRenderer *vtkNotUsed(ren)   , vtkVolume *vtkNotUsed(vol)   , VLIPixel *vtkNotUsed(basePlane)   , int    size[2], VLIVector3D    hexagon[6], VLIVector2D    textureCoords[6] )  [inline, protected, virtual]

Definition at line 137 of file vtkVolumeProVG500Mapper.h.

void vtkVolumeProVG500Mapper::CorrectBasePlaneSize (  VLIPixel *    inBase, int    inSize[2], VLIPixel **    outBase, int    outSize[2], VLIVector2D    textureCoords[6] )  [protected]

---

Member Data Documentation

int vtkVolumeProVG500Mapper::LoadedDataSize[3] [protected]

Definition at line 153 of file vtkVolumeProVG500Mapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkVolumeProVG500Mapper.h

---
