vtkVolumeProVP1000Mapper Class Reference

Superclass for VP1000 board. More...

#include <vtkVolumeProVP1000Mapper.h>

Inheritance diagram for vtkVolumeProVP1000Mapper:

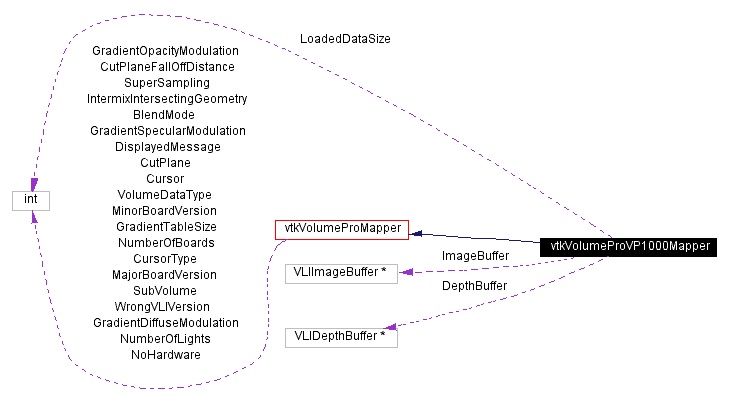

[legend]Collaboration diagram for vtkVolumeProVP1000Mapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	Render (vtkRenderer *, vtkVolume *)
virtual int	GetAvailableBoardMemory ()
virtual void	GetLockSizesForBoardMemory (unsigned int type, unsigned int *xSize, unsigned int *ySize, unsigned int *zSize)
Static Public Methods
int	IsTypeOf (const char *type)
vtkVolumeProVP1000Mapper *	SafeDownCast (vtkObject *o)
vtkVolumeProVP1000Mapper *	New ()
Protected Methods
	vtkVolumeProVP1000Mapper ()
	~vtkVolumeProVP1000Mapper ()
	vtkVolumeProVP1000Mapper (const vtkVolumeProVP1000Mapper &)
void	operator= (const vtkVolumeProVP1000Mapper &)
void	UpdateCamera (vtkRenderer *, vtkVolume *)
void	UpdateLights (vtkRenderer *, vtkVolume *)
void	UpdateProperties (vtkRenderer *, vtkVolume *)
void	UpdateVolume (vtkRenderer *, vtkVolume *)
void	UpdateCropping (vtkRenderer *, vtkVolume *)
void	UpdateCursor (vtkRenderer *, vtkVolume *)
void	UpdateCutPlane (vtkRenderer *, vtkVolume *)
virtual void	RenderImageBuffer (vtkRenderer *vtkNotUsed(ren), vtkVolume *vol, int size[2], unsigned int *outData)
virtual void	GetDepthBufferValues (vtkRenderer *vtkNotUsed(ren), int size[2], unsigned int *outData)
Protected Attributes
int	LoadedDataSize [3]
VLIImageBuffer *	ImageBuffer
VLIDepthBuffer *	DepthBuffer

---

Detailed Description

Superclass for VP1000 board.

Date:

2001/11/13 14:17:32

Revision:

1.3

vtkVolumeProVP1000Mapper is the superclass for VolumePRO volume rendering mappers based on the VP1000 chip. Subclasses are for underlying graphics languages. Users should not create subclasses directly - a vtkVolumeProMapper will automatically create the object of the right type.

This class is not included in the Rendering CMakeLists by default. If you want to add this class to your vtk build, you need to have the vli header and library files, and you will need to perform the following steps:

1. Run cmake, and set the VTK_USE_VOLUMEPRO flag to true. 2. If the libary file (VLI_LIBRARY_FOR_VP1000) is not found by cmake, set the path to that file, and rerun cmake. 3. If the header file (VLI_INCLUDE_PATH_FOR_VP1000) is not found by cmake, set the path to that file, and rerun cmake. 4. Rebuild VTK.

For more information on the VolumePRO hardware, please see:

http://www.terarecon.com/3d_products.shtml

If you encounter any problems with this class, please inform Kitware, Inc. at kitware@kitware.com.

See also:

vtkVolumeMapper vtkVolumeProMapper vtkOpenGLVolumeProVP1000Mapper

Definition at line 91 of file vtkVolumeProVP1000Mapper.h.

---

Constructor & Destructor Documentation

vtkVolumeProVP1000Mapper::vtkVolumeProVP1000Mapper (    )  [protected]

vtkVolumeProVP1000Mapper::~vtkVolumeProVP1000Mapper (    )  [protected]

vtkVolumeProVP1000Mapper::vtkVolumeProVP1000Mapper (  const vtkVolumeProVP1000Mapper &    )  [protected]

---

Member Function Documentation

virtual const char* vtkVolumeProVP1000Mapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

int vtkVolumeProVP1000Mapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

virtual int vtkVolumeProVP1000Mapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

vtkVolumeProVP1000Mapper* vtkVolumeProVP1000Mapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

vtkVolumeProVP1000Mapper* vtkVolumeProVP1000Mapper::New (    )  [static]

Automatically create the proper subclass Reimplemented from vtkVolumeProMapper. Reimplemented in vtkOpenGLVolumeProVP1000Mapper.

virtual void vtkVolumeProVP1000Mapper::Render (  vtkRenderer *    ren, vtkVolume *    vol )  [virtual]

Render the image using the hardware and place it in the frame buffer Reimplemented from vtkVolumeProMapper.

virtual int vtkVolumeProVP1000Mapper::GetAvailableBoardMemory (    )  [virtual]

Render the image using the hardware and place it in the frame buffer Reimplemented from vtkVolumeProMapper.

virtual void vtkVolumeProVP1000Mapper::GetLockSizesForBoardMemory (  unsigned int    type, unsigned int *    xSize, unsigned int *    ySize, unsigned int *    zSize )  [virtual]

Render the image using the hardware and place it in the frame buffer

void vtkVolumeProVP1000Mapper::operator= (  const vtkVolumeProVP1000Mapper &    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateCamera (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateLights (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateProperties (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateVolume (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateCropping (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateCursor (  vtkRenderer *   , vtkVolume *    )  [protected]

void vtkVolumeProVP1000Mapper::UpdateCutPlane (  vtkRenderer *   , vtkVolume *    )  [protected]

virtual void vtkVolumeProVP1000Mapper::RenderImageBuffer (  vtkRenderer *vtkNotUsed(ren)   , vtkVolume *    vol, int    size[2], unsigned int *    outData )  [inline, protected, virtual]

Definition at line 136 of file vtkVolumeProVP1000Mapper.h.

virtual void vtkVolumeProVP1000Mapper::GetDepthBufferValues (  vtkRenderer *vtkNotUsed(ren)   , int    size[2], unsigned int *    outData )  [inline, protected, virtual]

Definition at line 143 of file vtkVolumeProVP1000Mapper.h.

---

Member Data Documentation

int vtkVolumeProVP1000Mapper::LoadedDataSize[3] [protected]

Definition at line 151 of file vtkVolumeProVP1000Mapper.h.

VLIImageBuffer* vtkVolumeProVP1000Mapper::ImageBuffer [protected]

Definition at line 153 of file vtkVolumeProVP1000Mapper.h.

VLIDepthBuffer* vtkVolumeProVP1000Mapper::DepthBuffer [protected]

Definition at line 154 of file vtkVolumeProVP1000Mapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkVolumeProVP1000Mapper.h

---
