vtkWin32OpenGLImageWindow Class Reference

OpenGL Imageing window. More...

#include <vtkWin32OpenGLImageWindow.h>

Inheritance diagram for vtkWin32OpenGLImageWindow:

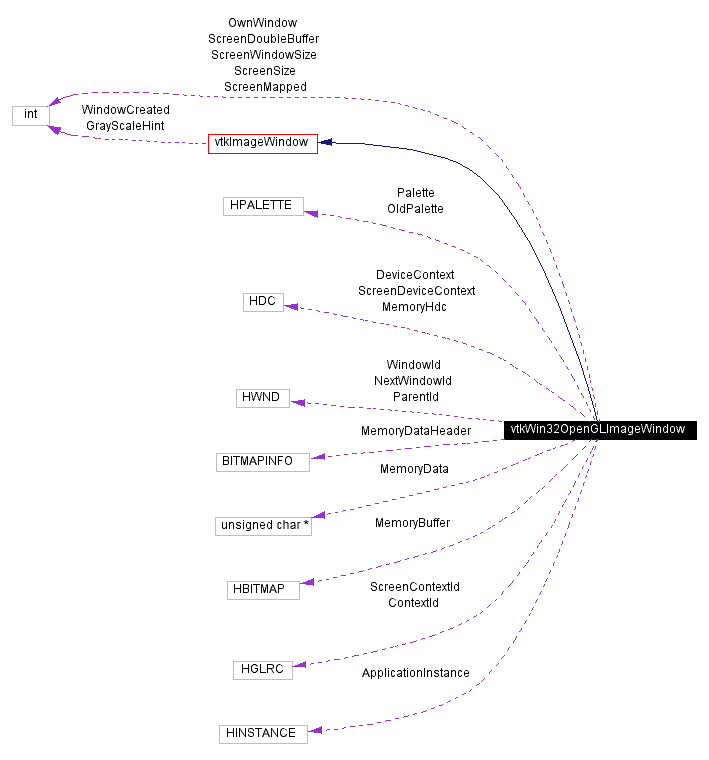

[legend]Collaboration diagram for vtkWin32OpenGLImageWindow:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkWin32OpenGLImageWindow *	GetOutput ()
virtual void	MakeDefaultWindow ()
void	SwapBuffers ()
void	Frame ()
void	Render ()
virtual void	SetWindowName (char *)
void	SetWindowInfo (char *)
void	SetParentInfo (char *)
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void	SetDisplayId (void *)
virtual void	SetWindowId (HWND)
void	SetContextId (HGLRC)
void	SetDeviceContext (HDC)
void	MakeCurrent ()
void	Clean ()

virtual void	SetSize (int, int)
virtual void	SetSize (int a[2])

virtual int *	GetSize ()
virtual void	GetSize (int x, int y)

virtual void	SetPosition (int, int)
virtual void	SetPosition (int a[2])

virtual int *	GetPosition ()
virtual void	GetPosition (int x, int y)

virtual HWND	GetWindowId ()
void	SetWindowId (void *foo)

virtual void	SetParentId (HWND)
void	SetParentId (void *foo)

virtual void	SetNextWindowId (HWND)

virtual unsigned char *	GetPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetPixelData (int x, int y, int x2, int y2, unsigned char *, int front)

virtual float *	GetRGBAPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetRGBAPixelData (int x, int y, int x2, int y2, float *, int front, int blend=0)
virtual void	ReleaseRGBAPixelData (float *data)

void	SetupMemoryRendering (int x, int y, HDC prn)
void	ResumeScreenRendering ()
HDC	GetMemoryDC ()
unsigned char *	GetMemoryData ()

virtual void	OpenGLInit ()
virtual void	SetupPalette (HDC hDC)
virtual void	SetupPixelFormat (HDC hDC, DWORD dwFlags, int debug, int bpp=16, int zbpp=16)
Static Public Methods
vtkWin32OpenGLImageWindow *	New ()
int	IsTypeOf (const char *type)
vtkWin32OpenGLImageWindow *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkWin32OpenGLImageWindow ()
	~vtkWin32OpenGLImageWindow ()
virtual LRESULT	MessageProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
Static Protected Methods
LRESULT APIENTRY	WndProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
Protected Attributes
HINSTANCE	ApplicationInstance
HPALETTE	Palette
HPALETTE	OldPalette
HGLRC	ContextId
HDC	DeviceContext
HWND	WindowId
HWND	ParentId
HWND	NextWindowId
int	OwnWindow
int	ScreenSize [2]
BITMAPINFO	MemoryDataHeader
HBITMAP	MemoryBuffer
unsigned char *	MemoryData
HDC	MemoryHdc
int	ScreenMapped
int	ScreenWindowSize [2]
HDC	ScreenDeviceContext
int	ScreenDoubleBuffer
HGLRC	ScreenContextId

Detailed Description

OpenGL Imageing window.

Date:: 2001/12/07 16:02:53

Revision:: 1.21

vtkWin32OpenGLImageWindow is a concrete implementation of the abstract class vtkImageWindow. vtkWin32OpenGLImageer interfaces to the standard OpenGL graphics library in the Windows/NT environment..

Definition at line 58 of file vtkWin32OpenGLImageWindow.h.

Constructor & Destructor Documentation

vtkWin32OpenGLImageWindow::vtkWin32OpenGLImageWindow ( ) [protected]

vtkWin32OpenGLImageWindow::~vtkWin32OpenGLImageWindow ( ) [protected]

Member Function Documentation

vtkWin32OpenGLImageWindow* vtkWin32OpenGLImageWindow::New ( ) [static]

Creates a vtkImageWindow with background erasing disabled and gray scale hint off
Reimplemented from vtkImageWindow.

virtual const char* vtkWin32OpenGLImageWindow::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageWindow.

int vtkWin32OpenGLImageWindow::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageWindow.

virtual int vtkWin32OpenGLImageWindow::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageWindow.

vtkWin32OpenGLImageWindow* vtkWin32OpenGLImageWindow::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageWindow.

void vtkWin32OpenGLImageWindow::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkImageWindow.

vtkWin32OpenGLImageWindow* vtkWin32OpenGLImageWindow::GetOutput ( ) [inline]

Definition at line 66 of file vtkWin32OpenGLImageWindow.h.

virtual void vtkWin32OpenGLImageWindow::MakeDefaultWindow ( ) [virtual]

Initialize the window for rendering.
Reimplemented from vtkImageWindow.

void vtkWin32OpenGLImageWindow::SwapBuffers ( ) [virtual]

Swap the front and back buffers if double buffering is being used.
Reimplemented from vtkImageWindow.

void vtkWin32OpenGLImageWindow::Frame ( void ) [virtual]

Flush the buffer and swap if necessary
Reimplemented from vtkImageWindow.

void vtkWin32OpenGLImageWindow::Render ( void ) [virtual]

Draw the contents of the window
Reimplemented from vtkImageWindow.

virtual void vtkWin32OpenGLImageWindow::SetSize ( int x,

int y

) [virtual]

Set the size of the window.
Reimplemented from vtkImageWindow.

virtual void vtkWin32OpenGLImageWindow::SetSize ( int a[2] ) [inline, virtual]

Set the size of the window.
Reimplemented from vtkImageWindow.
Definition at line 83 of file vtkWin32OpenGLImageWindow.h.

virtual int* vtkWin32OpenGLImageWindow::GetSize ( ) [virtual]

Get the current size of the window.
Reimplemented from vtkImageWindow.

virtual void vtkWin32OpenGLImageWindow::GetSize ( int * x,

int * y

) [inline, virtual]

Get the current size of the window.
Reimplemented from vtkImageWindow.
Definition at line 89 of file vtkWin32OpenGLImageWindow.h.

virtual void vtkWin32OpenGLImageWindow::SetPosition ( int x,

int y

) [virtual]

Set the position of the window.
Reimplemented from vtkImageWindow.

virtual void vtkWin32OpenGLImageWindow::SetPosition ( int a[2] ) [inline, virtual]

Set the position of the window.
Reimplemented from vtkImageWindow.
Definition at line 95 of file vtkWin32OpenGLImageWindow.h.

virtual int* vtkWin32OpenGLImageWindow::GetPosition ( ) [virtual]

Get the position in screen coordinates of the window.
Reimplemented from vtkImageWindow.

virtual void vtkWin32OpenGLImageWindow::GetPosition ( int * x,

int * y

) [inline, virtual]

Get the position in screen coordinates of the window.
Reimplemented from vtkImageWindow.
Definition at line 101 of file vtkWin32OpenGLImageWindow.h.

virtual void vtkWin32OpenGLImageWindow::SetWindowName ( char * name ) [virtual]

Set the name of the window. This appears at the top of the window normally.
Reimplemented from vtkWindow.

void vtkWin32OpenGLImageWindow::SetWindowInfo ( char * info ) [virtual]

Set this ImageWindow's window id to a pre-existing window.
Reimplemented from vtkImageWindow.

void vtkWin32OpenGLImageWindow::SetParentInfo ( char * info ) [virtual]

Sets the HWND id of the window that WILL BE created.
Reimplemented from vtkImageWindow.

virtual void* vtkWin32OpenGLImageWindow::GetGenericDisplayId ( ) [inline, virtual]

These are here for using a tk window.
Reimplemented from vtkImageWindow.
Definition at line 115 of file vtkWin32OpenGLImageWindow.h.

virtual void* vtkWin32OpenGLImageWindow::GetGenericWindowId ( ) [inline, virtual]

These are here for using a tk window.
Reimplemented from vtkImageWindow.
Definition at line 116 of file vtkWin32OpenGLImageWindow.h.

virtual void* vtkWin32OpenGLImageWindow::GetGenericParentId ( ) [inline, virtual]

These are here for using a tk window.
Reimplemented from vtkImageWindow.
Definition at line 117 of file vtkWin32OpenGLImageWindow.h.

virtual void* vtkWin32OpenGLImageWindow::GetGenericContext ( ) [inline, virtual]

These are here for using a tk window.
Reimplemented from vtkImageWindow.
Definition at line 118 of file vtkWin32OpenGLImageWindow.h.

virtual void vtkWin32OpenGLImageWindow::SetDisplayId ( void * foo ) [inline, virtual]

These are here for using a tk window.
Reimplemented from vtkImageWindow.
Definition at line 119 of file vtkWin32OpenGLImageWindow.h.

virtual HWND vtkWin32OpenGLImageWindow::GetWindowId ( ) [virtual]

Get the window id.

void vtkWin32OpenGLImageWindow::SetWindowId ( void * foo ) [inline, virtual]

Get the window id.
Reimplemented from vtkImageWindow.
Definition at line 124 of file vtkWin32OpenGLImageWindow.h.

virtual void vtkWin32OpenGLImageWindow::SetWindowId ( HWND ) [virtual]

Set the window id to a pre-existing window.

virtual void vtkWin32OpenGLImageWindow::SetParentId ( HWND ) [virtual]

Set the window's parent id to a pre-existing window.

void vtkWin32OpenGLImageWindow::SetParentId ( void * foo ) [inline, virtual]

Set the window's parent id to a pre-existing window.
Reimplemented from vtkImageWindow.
Definition at line 133 of file vtkWin32OpenGLImageWindow.h.

void vtkWin32OpenGLImageWindow::SetContextId ( HGLRC )

void vtkWin32OpenGLImageWindow::SetDeviceContext ( HDC )

virtual void vtkWin32OpenGLImageWindow::SetNextWindowId ( HWND ) [virtual]

Set the window id of the new window once a WindowRemap is done.

virtual unsigned char* vtkWin32OpenGLImageWindow::GetPixelData ( int x,

int y,

int x2,

int y2,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...
Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLImageWindow::SetPixelData ( int x,

int y,

int x2,

int y2,

unsigned char * ,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

virtual float* vtkWin32OpenGLImageWindow::GetRGBAPixelData ( int x,

int y,

int x2,

int y2,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

virtual void vtkWin32OpenGLImageWindow::SetRGBAPixelData ( int x,

int y,

int x2,

int y2,

float * ,

int front,

int blend = 0

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

virtual void vtkWin32OpenGLImageWindow::ReleaseRGBAPixelData ( float * data ) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

void vtkWin32OpenGLImageWindow::MakeCurrent ( ) [virtual]

Make this windows OpenGL context the current context.
Reimplemented from vtkImageWindow.

void vtkWin32OpenGLImageWindow::SetupMemoryRendering ( int x,

int y,

HDC prn

)

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

void vtkWin32OpenGLImageWindow::ResumeScreenRendering ( )

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

HDC vtkWin32OpenGLImageWindow::GetMemoryDC ( )

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

unsigned char* vtkWin32OpenGLImageWindow::GetMemoryData ( ) [inline]

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.
Definition at line 169 of file vtkWin32OpenGLImageWindow.h.

virtual void vtkWin32OpenGLImageWindow::OpenGLInit ( ) [virtual]

Initialize OpenGL for this window.

virtual void vtkWin32OpenGLImageWindow::SetupPalette ( HDC hDC ) [virtual]

Initialize OpenGL for this window.

virtual void vtkWin32OpenGLImageWindow::SetupPixelFormat ( HDC hDC,

DWORD dwFlags,

int debug,

int bpp = 16,

int zbpp = 16

) [virtual]

Initialize OpenGL for this window.

void vtkWin32OpenGLImageWindow::Clean ( )

Clean up device contexts, rendering contexts, etc.

virtual LRESULT vtkWin32OpenGLImageWindow::MessageProc ( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam

) [protected, virtual]

LRESULT APIENTRY vtkWin32OpenGLImageWindow::WndProc ( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam

) [static, protected]

Member Data Documentation

HINSTANCE vtkWin32OpenGLImageWindow::ApplicationInstance [protected]

Definition at line 187 of file vtkWin32OpenGLImageWindow.h.

HPALETTE vtkWin32OpenGLImageWindow::Palette [protected]

Definition at line 188 of file vtkWin32OpenGLImageWindow.h.

HPALETTE vtkWin32OpenGLImageWindow::OldPalette [protected]

Definition at line 189 of file vtkWin32OpenGLImageWindow.h.

HGLRC vtkWin32OpenGLImageWindow::ContextId [protected]

Definition at line 190 of file vtkWin32OpenGLImageWindow.h.

HDC vtkWin32OpenGLImageWindow::DeviceContext [protected]

Definition at line 191 of file vtkWin32OpenGLImageWindow.h.

HWND vtkWin32OpenGLImageWindow::WindowId [protected]

Definition at line 192 of file vtkWin32OpenGLImageWindow.h.

HWND vtkWin32OpenGLImageWindow::ParentId [protected]

Definition at line 193 of file vtkWin32OpenGLImageWindow.h.

HWND vtkWin32OpenGLImageWindow::NextWindowId [protected]

Definition at line 194 of file vtkWin32OpenGLImageWindow.h.

int vtkWin32OpenGLImageWindow::OwnWindow [protected]

Definition at line 195 of file vtkWin32OpenGLImageWindow.h.

int vtkWin32OpenGLImageWindow::ScreenSize[2] [protected]

Definition at line 196 of file vtkWin32OpenGLImageWindow.h.

BITMAPINFO vtkWin32OpenGLImageWindow::MemoryDataHeader [protected]

Definition at line 199 of file vtkWin32OpenGLImageWindow.h.

HBITMAP vtkWin32OpenGLImageWindow::MemoryBuffer [protected]

Definition at line 200 of file vtkWin32OpenGLImageWindow.h.

unsigned char* vtkWin32OpenGLImageWindow::MemoryData [protected]

Definition at line 201 of file vtkWin32OpenGLImageWindow.h.

HDC vtkWin32OpenGLImageWindow::MemoryHdc [protected]

Definition at line 202 of file vtkWin32OpenGLImageWindow.h.

int vtkWin32OpenGLImageWindow::ScreenMapped [protected]

Definition at line 204 of file vtkWin32OpenGLImageWindow.h.

int vtkWin32OpenGLImageWindow::ScreenWindowSize[2] [protected]

Definition at line 205 of file vtkWin32OpenGLImageWindow.h.

HDC vtkWin32OpenGLImageWindow::ScreenDeviceContext [protected]

Definition at line 206 of file vtkWin32OpenGLImageWindow.h.

int vtkWin32OpenGLImageWindow::ScreenDoubleBuffer [protected]

Definition at line 207 of file vtkWin32OpenGLImageWindow.h.

HGLRC vtkWin32OpenGLImageWindow::ScreenContextId [protected]

Definition at line 208 of file vtkWin32OpenGLImageWindow.h.

The documentation for this class was generated from the following file:

Rendering/vtkWin32OpenGLImageWindow.h

Generated on Thu Mar 28 14:47:43 2002 for VTK by

vtkWin32OpenGLImageWindow Class Reference

Public Methods

Static Public Methods

Protected Methods

Static Protected Methods

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
