vtkWin32OpenGLRenderWindow Class Reference

OpenGL rendering window. More...

#include <vtkWin32OpenGLRenderWindow.h>

Inheritance diagram for vtkWin32OpenGLRenderWindow:

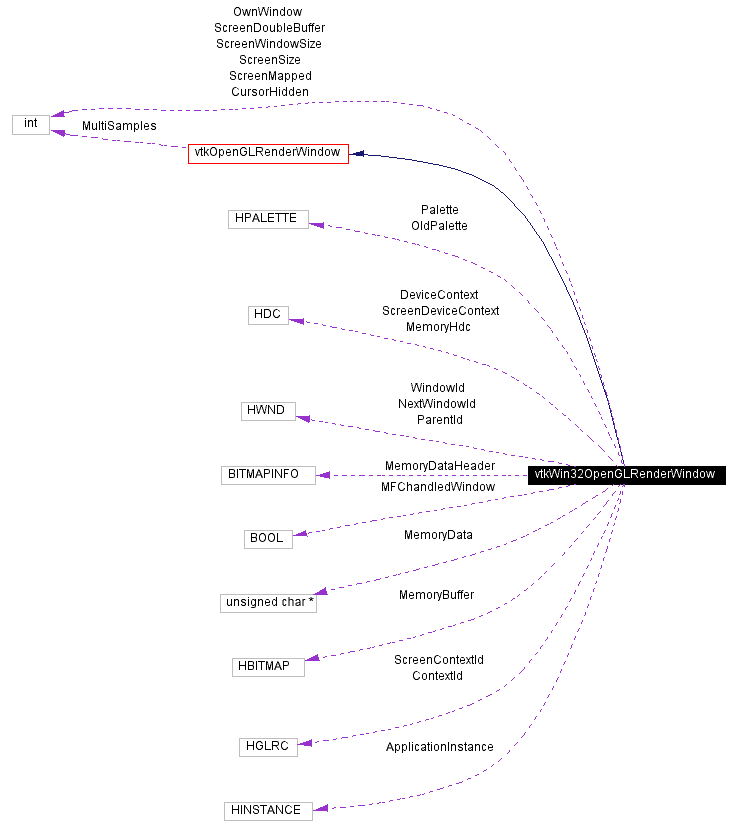

[legend]Collaboration diagram for vtkWin32OpenGLRenderWindow:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Start (void)
void	Frame (void)
virtual void	WindowInitialize (void)
virtual void	Initialize (void)
virtual void	SetFullScreen (int)
virtual void	WindowRemap (void)
virtual void	PrefFullScreen (void)
virtual int *	GetSize ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
virtual void	SetWindowName (char *)
void	SetWindowInfo (char *)
void	SetParentInfo (char *)
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void	SetDisplayId (void *)
virtual void	SetWindowId (HWND)
void	SetContextId (HGLRC)
void	SetDeviceContext (HDC)
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
virtual int	GetEventPending ()
void	Clean ()
virtual void	SetOffScreenRendering (int offscreen)

virtual void	SetSize (int, int)
virtual void	SetSize (int a[2])

virtual void	SetPosition (int, int)
virtual void	SetPosition (int a[2])

virtual HWND	GetWindowId ()
void	SetWindowId (void *foo)

virtual void	SetParentId (HWND)
void	SetParentId (void *foo)

virtual void	SetNextWindowId (HWND)

void	SetupMemoryRendering (int x, int y, HDC prn)
void	SetupMemoryRendering (HBITMAP hbmp)
void	ResumeScreenRendering (void)
HDC	GetMemoryDC ()
unsigned char *	GetMemoryData ()

virtual void	SetupPalette (HDC hDC)
virtual void	SetupPixelFormat (HDC hDC, DWORD dwFlags, int debug, int bpp=16, int zbpp=16)

void	HideCursor ()
void	ShowCursor ()
Static Public Methods
vtkWin32OpenGLRenderWindow *	New ()
int	IsTypeOf (const char *type)
vtkWin32OpenGLRenderWindow *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkWin32OpenGLRenderWindow ()
	~vtkWin32OpenGLRenderWindow ()
virtual LRESULT	MessageProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
void	ResizeWhileOffscreen (int xsize, int ysize)
void	CreateAWindow (int x, int y, int width, int height)
void	InitializeApplication ()
void	CleanUpOffScreenRendering (void)
void	CreateOffScreenDC (int xsize, int ysize, HDC aHdc)
void	CreateOffScreenDC (HBITMAP hbmp, HDC aHdc)
Static Protected Methods
LRESULT APIENTRY	WndProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
Protected Attributes
HINSTANCE	ApplicationInstance
HPALETTE	Palette
HPALETTE	OldPalette
HGLRC	ContextId
HDC	DeviceContext
BOOL	MFChandledWindow
HWND	WindowId
HWND	ParentId
HWND	NextWindowId
int	OwnWindow
int	ScreenSize [2]
BITMAPINFO	MemoryDataHeader
HBITMAP	MemoryBuffer
unsigned char *	MemoryData
HDC	MemoryHdc
int	ScreenMapped
int	ScreenWindowSize [2]
HDC	ScreenDeviceContext
int	ScreenDoubleBuffer
HGLRC	ScreenContextId
int	CursorHidden

Detailed Description

OpenGL rendering window.

Date:: 2001/12/07 16:03:44

Revision:: 1.49

vtkWin32OpenGLRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkWin32OpenGLRenderer interfaces to the standard OpenGL graphics library in the Windows/NT environment..

Examples:: vtkWin32OpenGLRenderWindow (Examples)

Definition at line 65 of file vtkWin32OpenGLRenderWindow.h.

Constructor & Destructor Documentation

vtkWin32OpenGLRenderWindow::vtkWin32OpenGLRenderWindow ( ) [protected]

vtkWin32OpenGLRenderWindow::~vtkWin32OpenGLRenderWindow ( ) [protected]

Member Function Documentation

vtkWin32OpenGLRenderWindow* vtkWin32OpenGLRenderWindow::New ( ) [static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.
Reimplemented from vtkRenderWindow.

virtual const char* vtkWin32OpenGLRenderWindow::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkOpenGLRenderWindow.

int vtkWin32OpenGLRenderWindow::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkWin32OpenGLRenderWindow::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkOpenGLRenderWindow.

vtkWin32OpenGLRenderWindow* vtkWin32OpenGLRenderWindow::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkOpenGLRenderWindow.

void vtkWin32OpenGLRenderWindow::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::Start ( void ) [virtual]

Begin the rendering process.
Reimplemented from vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::Frame ( void ) [virtual]

End the rendering process and display the image.
Reimplemented from vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::WindowInitialize ( void ) [virtual]

Create the window

virtual void vtkWin32OpenGLRenderWindow::Initialize ( void ) [virtual]

Initialize the rendering window.

virtual void vtkWin32OpenGLRenderWindow::SetFullScreen ( int ) [virtual]

Change the window to fill the entire screen.
Reimplemented from vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::WindowRemap ( void ) [virtual]

Remap the window.
Reimplemented from vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::PrefFullScreen ( void ) [virtual]

Set the preferred window size to full screen.

virtual void vtkWin32OpenGLRenderWindow::SetSize ( int x,

int y

) [virtual]

Set the size of the window.
Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetSize ( int a[2] ) [inline, virtual]

Set the size of the window.
Reimplemented from vtkWindow.
Definition at line 96 of file vtkWin32OpenGLRenderWindow.h.

virtual int* vtkWin32OpenGLRenderWindow::GetSize ( ) [virtual]

Get the current size of the window.
Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetPosition ( int x,

int y

) [virtual]

Set the position of the window.
Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetPosition ( int a[2] ) [inline, virtual]

Set the position of the window.
Reimplemented from vtkWindow.
Definition at line 105 of file vtkWin32OpenGLRenderWindow.h.

virtual int* vtkWin32OpenGLRenderWindow::GetScreenSize ( ) [virtual]

Return the screen size.

virtual int* vtkWin32OpenGLRenderWindow::GetPosition ( ) [virtual]

Get the position in screen coordinates of the window.
Reimplemented from vtkWindow.

virtual void vtkWin32OpenGLRenderWindow::SetWindowName ( char * name ) [virtual]

Set the name of the window. This appears at the top of the window normally.
Reimplemented from vtkWindow.

void vtkWin32OpenGLRenderWindow::SetWindowInfo ( char * info ) [virtual]

Set this RenderWindow's window id to a pre-existing window.
Reimplemented from vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::SetParentInfo ( char * info ) [virtual]

Sets the HWND id of the window that WILL BE created.
Reimplemented from vtkRenderWindow.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericDisplayId ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Reimplemented from vtkRenderWindow.
Definition at line 125 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericWindowId ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Reimplemented from vtkRenderWindow.
Definition at line 126 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericParentId ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Reimplemented from vtkRenderWindow.
Definition at line 127 of file vtkWin32OpenGLRenderWindow.h.

virtual void* vtkWin32OpenGLRenderWindow::GetGenericContext ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Reimplemented from vtkRenderWindow.
Definition at line 128 of file vtkWin32OpenGLRenderWindow.h.

virtual void vtkWin32OpenGLRenderWindow::SetDisplayId ( void * foo ) [inline, virtual]

Dummy stubs for vtkWindow API.
Reimplemented from vtkRenderWindow.
Definition at line 129 of file vtkWin32OpenGLRenderWindow.h.

virtual HWND vtkWin32OpenGLRenderWindow::GetWindowId ( ) [virtual]

Get the window id.

void vtkWin32OpenGLRenderWindow::SetWindowId ( void * foo ) [inline, virtual]

Get the window id.
Reimplemented from vtkRenderWindow.
Definition at line 134 of file vtkWin32OpenGLRenderWindow.h.

virtual void vtkWin32OpenGLRenderWindow::SetWindowId ( HWND ) [virtual]

Set the window id to a pre-existing window.

virtual void vtkWin32OpenGLRenderWindow::SetParentId ( HWND ) [virtual]

Set the window's parent id to a pre-existing window.

void vtkWin32OpenGLRenderWindow::SetParentId ( void * foo ) [inline, virtual]

Set the window's parent id to a pre-existing window.
Reimplemented from vtkRenderWindow.
Definition at line 143 of file vtkWin32OpenGLRenderWindow.h.

void vtkWin32OpenGLRenderWindow::SetContextId ( HGLRC )

void vtkWin32OpenGLRenderWindow::SetDeviceContext ( HDC )

virtual void vtkWin32OpenGLRenderWindow::SetNextWindowId ( HWND ) [virtual]

Set the window id of the new window once a WindowRemap is done.

virtual void vtkWin32OpenGLRenderWindow::SetStereoCapableWindow ( int capable ) [virtual]

Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrides the superclass method since this class can actually check whether the window has been realized yet.
Reimplemented from vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::MakeCurrent ( ) [virtual]

Make this windows OpenGL context the current context.
Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkWin32OpenGLRenderWindow::GetEventPending ( ) [virtual]

Check to see if an event is pending for this window. This is a useful check to abort a long render.
Reimplemented from vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::SetupMemoryRendering ( int x,

int y,

HDC prn

)

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

void vtkWin32OpenGLRenderWindow::SetupMemoryRendering ( HBITMAP hbmp )

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

void vtkWin32OpenGLRenderWindow::ResumeScreenRendering ( void )

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

HDC vtkWin32OpenGLRenderWindow::GetMemoryDC ( )

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.

unsigned char* vtkWin32OpenGLRenderWindow::GetMemoryData ( ) [inline]

These methods can be used by MFC applications to support print preview and printing, or more general rendering into memory.
Definition at line 175 of file vtkWin32OpenGLRenderWindow.h.

virtual void vtkWin32OpenGLRenderWindow::SetupPalette ( HDC hDC ) [virtual]

Initialize OpenGL for this window.

virtual void vtkWin32OpenGLRenderWindow::SetupPixelFormat ( HDC hDC,

DWORD dwFlags,

int debug,

int bpp = 16,

int zbpp = 16

) [virtual]

Initialize OpenGL for this window.

void vtkWin32OpenGLRenderWindow::Clean ( )

Clean up device contexts, rendering contexts, etc.

void vtkWin32OpenGLRenderWindow::HideCursor ( ) [virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.
Reimplemented from vtkRenderWindow.

void vtkWin32OpenGLRenderWindow::ShowCursor ( ) [virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.
Reimplemented from vtkRenderWindow.

virtual void vtkWin32OpenGLRenderWindow::SetOffScreenRendering ( int offscreen ) [virtual]

Override the default implementation so that we can actively switch between on and off screen rendering.
Reimplemented from vtkWindow.

virtual LRESULT vtkWin32OpenGLRenderWindow::MessageProc ( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam

) [protected, virtual]

LRESULT APIENTRY vtkWin32OpenGLRenderWindow::WndProc ( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam

) [static, protected]

void vtkWin32OpenGLRenderWindow::ResizeWhileOffscreen ( int xsize,

int ysize

) [protected]

void vtkWin32OpenGLRenderWindow::CreateAWindow ( int x,

int y,

int width,

int height

) [protected]

void vtkWin32OpenGLRenderWindow::InitializeApplication ( ) [protected]

void vtkWin32OpenGLRenderWindow::CleanUpOffScreenRendering ( void ) [protected]

void vtkWin32OpenGLRenderWindow::CreateOffScreenDC ( int xsize,

int ysize,

HDC aHdc

) [protected]

void vtkWin32OpenGLRenderWindow::CreateOffScreenDC ( HBITMAP hbmp,

HDC aHdc

) [protected]

Member Data Documentation

HINSTANCE vtkWin32OpenGLRenderWindow::ApplicationInstance [protected]

Definition at line 203 of file vtkWin32OpenGLRenderWindow.h.

HPALETTE vtkWin32OpenGLRenderWindow::Palette [protected]

Definition at line 204 of file vtkWin32OpenGLRenderWindow.h.

HPALETTE vtkWin32OpenGLRenderWindow::OldPalette [protected]

Definition at line 205 of file vtkWin32OpenGLRenderWindow.h.

HGLRC vtkWin32OpenGLRenderWindow::ContextId [protected]

Definition at line 206 of file vtkWin32OpenGLRenderWindow.h.

HDC vtkWin32OpenGLRenderWindow::DeviceContext [protected]

Definition at line 207 of file vtkWin32OpenGLRenderWindow.h.

BOOL vtkWin32OpenGLRenderWindow::MFChandledWindow [protected]

Definition at line 208 of file vtkWin32OpenGLRenderWindow.h.

HWND vtkWin32OpenGLRenderWindow::WindowId [protected]

Definition at line 209 of file vtkWin32OpenGLRenderWindow.h.

HWND vtkWin32OpenGLRenderWindow::ParentId [protected]

Definition at line 210 of file vtkWin32OpenGLRenderWindow.h.

HWND vtkWin32OpenGLRenderWindow::NextWindowId [protected]

Definition at line 211 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::OwnWindow [protected]

Definition at line 212 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenSize[2] [protected]

Definition at line 213 of file vtkWin32OpenGLRenderWindow.h.

BITMAPINFO vtkWin32OpenGLRenderWindow::MemoryDataHeader [protected]

Definition at line 216 of file vtkWin32OpenGLRenderWindow.h.

HBITMAP vtkWin32OpenGLRenderWindow::MemoryBuffer [protected]

Definition at line 217 of file vtkWin32OpenGLRenderWindow.h.

unsigned char* vtkWin32OpenGLRenderWindow::MemoryData [protected]

Definition at line 218 of file vtkWin32OpenGLRenderWindow.h.

HDC vtkWin32OpenGLRenderWindow::MemoryHdc [protected]

Definition at line 219 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenMapped [protected]

Definition at line 221 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenWindowSize[2] [protected]

Definition at line 222 of file vtkWin32OpenGLRenderWindow.h.

HDC vtkWin32OpenGLRenderWindow::ScreenDeviceContext [protected]

Definition at line 223 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::ScreenDoubleBuffer [protected]

Definition at line 224 of file vtkWin32OpenGLRenderWindow.h.

HGLRC vtkWin32OpenGLRenderWindow::ScreenContextId [protected]

Definition at line 225 of file vtkWin32OpenGLRenderWindow.h.

int vtkWin32OpenGLRenderWindow::CursorHidden [protected]

Definition at line 235 of file vtkWin32OpenGLRenderWindow.h.

The documentation for this class was generated from the following file:

Rendering/vtkWin32OpenGLRenderWindow.h

Generated on Thu Mar 28 14:47:56 2002 for VTK by

vtkWin32OpenGLRenderWindow Class Reference

Public Methods

Static Public Methods

Protected Methods

Static Protected Methods

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
