vtkBranchExtentTranslator Class Reference

#include <vtkBranchExtentTranslator.h>

Inheritance diagram for vtkBranchExtentTranslator:

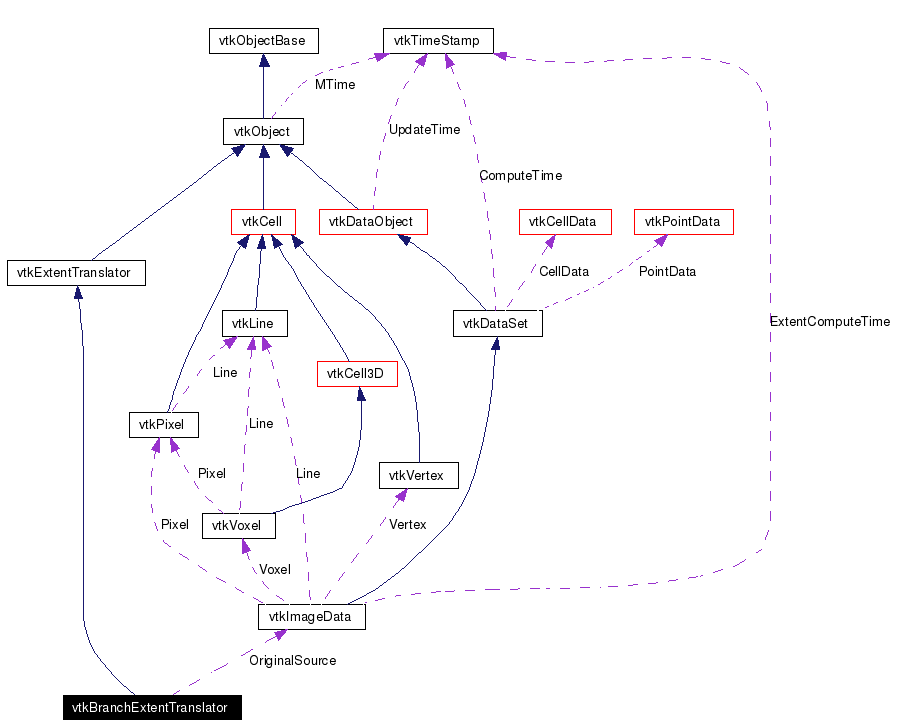

[legend]Collaboration diagram for vtkBranchExtentTranslator:

[legend]List of all members.

---

Detailed Description

Uses alternative source for whole extent.

vtkBranchExtentTranslator is like extent translator, but it uses an alternative source as a whole extent. The whole extent passed is assumed to be a subextent of the original source. we simply take the intersection of the split extent and the whole extdent passed in. We are attempting to make branching pipelines request consistent extents with the same piece requests.

Warning:

This object is still under development.

Tests:

vtkBranchExtentTranslator (Tests)

Definition at line 39 of file vtkBranchExtentTranslator.h.

Public Types
typedef vtkExtentTranslator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetOriginalSource (vtkImageData *)
virtual vtkImageData *	GetOriginalSource ()
int	PieceToExtent ()
virtual void	SetAssignedPiece (int)
virtual int	GetAssignedPiece ()
virtual void	SetAssignedNumberOfPieces (int)
virtual int	GetAssignedNumberOfPieces ()
Static Public Member Functions
static vtkBranchExtentTranslator *	New ()
static int	IsTypeOf (const char *type)
static vtkBranchExtentTranslator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBranchExtentTranslator ()
	~vtkBranchExtentTranslator ()
Protected Attributes
vtkImageData *	OriginalSource
int	AssignedPiece
int	AssignedNumberOfPieces

---

Member Typedef Documentation

typedef vtkExtentTranslator vtkBranchExtentTranslator::Superclass

Reimplemented from vtkExtentTranslator. Definition at line 44 of file vtkBranchExtentTranslator.h.

---

Constructor & Destructor Documentation

vtkBranchExtentTranslator::vtkBranchExtentTranslator (   )  [protected]

vtkBranchExtentTranslator::~vtkBranchExtentTranslator (   )  [protected]

---

Member Function Documentation

static vtkBranchExtentTranslator* vtkBranchExtentTranslator::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkExtentTranslator.

virtual const char* vtkBranchExtentTranslator::GetClassName (   )  [virtual]

Reimplemented from vtkExtentTranslator.

static int vtkBranchExtentTranslator::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkExtentTranslator.

virtual int vtkBranchExtentTranslator::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkExtentTranslator.

static vtkBranchExtentTranslator* vtkBranchExtentTranslator::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkExtentTranslator.

void vtkBranchExtentTranslator::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkExtentTranslator.

virtual void vtkBranchExtentTranslator::SetOriginalSource (  vtkImageData *   )  [virtual]

This is the original upstream image source.

virtual vtkImageData* vtkBranchExtentTranslator::GetOriginalSource (   )  [virtual]

int vtkBranchExtentTranslator::PieceToExtent (   )  [virtual]

Generates the extent from the pieces. Reimplemented from vtkExtentTranslator.

virtual void vtkBranchExtentTranslator::SetAssignedPiece (  int   )  [virtual]

This unstructured extent/piece is store here for the users convenience. It is not used internally. The intent was to let an "assignment" be made when the translator/first source is created. The translator/assignment can be used for any new filter that uses the original source as output. Branches will then have the same assignment.

virtual int vtkBranchExtentTranslator::GetAssignedPiece (   )  [virtual]

Generates the extent from the pieces.

virtual void vtkBranchExtentTranslator::SetAssignedNumberOfPieces (  int   )  [virtual]

Generates the extent from the pieces.

virtual int vtkBranchExtentTranslator::GetAssignedNumberOfPieces (   )  [virtual]

Generates the extent from the pieces.

---

Member Data Documentation

vtkImageData* vtkBranchExtentTranslator::OriginalSource [protected]

Definition at line 73 of file vtkBranchExtentTranslator.h.

int vtkBranchExtentTranslator::AssignedPiece [protected]

Definition at line 74 of file vtkBranchExtentTranslator.h.

int vtkBranchExtentTranslator::AssignedNumberOfPieces [protected]

Definition at line 75 of file vtkBranchExtentTranslator.h.

---

The documentation for this class was generated from the following file:

• dox/Parallel/vtkBranchExtentTranslator.h

---
