vtkBridgeCellIterator Class Reference

#include <vtkBridgeCellIterator.h>

Inheritance diagram for vtkBridgeCellIterator:

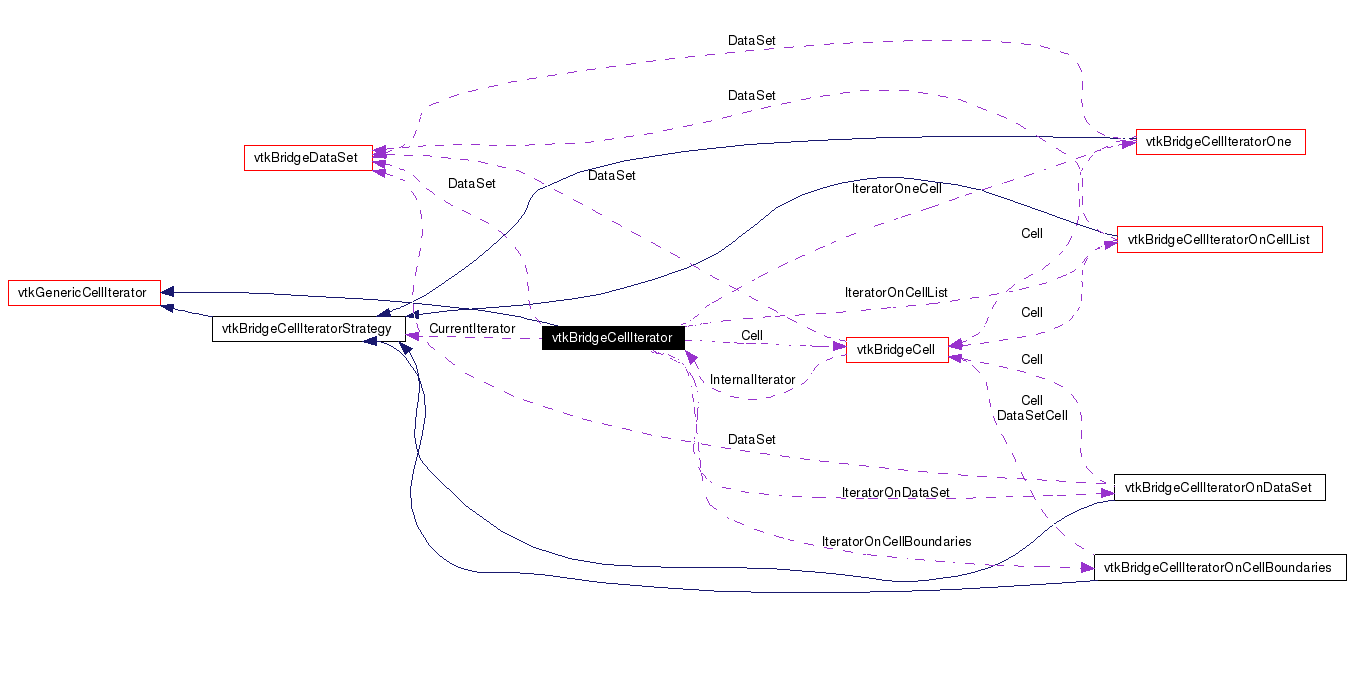

[legend]Collaboration diagram for vtkBridgeCellIterator:

[legend]List of all members.

---

Detailed Description

Implementation of vtkGenericCellIterator. It is just an example that show how to implement the Generic. It is also used for testing and evaluating the Generic.

See also:

vtkGenericCellIterator, vtkBridgeDataSet

Tests:

vtkBridgeCellIterator (Tests)

Definition at line 45 of file vtkBridgeCellIterator.h.

Public Types
typedef vtkGenericCellIterator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Begin ()
int	IsAtEnd ()
vtkGenericAdaptorCell *	NewCell ()
void	GetCell (vtkGenericAdaptorCell *c)
vtkGenericAdaptorCell *	GetCell ()
void	Next ()
void	InitWithDataSet (vtkBridgeDataSet *ds, int dim)
void	InitWithDataSetBoundaries (vtkBridgeDataSet *ds, int dim, int exterior_only)
void	InitWithOneCell (vtkBridgeDataSet *ds, vtkIdType cellid)
void	InitWithOneCell (vtkBridgeCell *c)
void	InitWithCellBoundaries (vtkBridgeCell *cell, int dim)
void	InitWithCells (vtkIdList *cells, vtkBridgeDataSet *ds)
void	InitWithPoints (vtkPoints *coords, vtkIdList *pts, int dim, vtkIdType cellid)
Static Public Member Functions
static vtkBridgeCellIterator *	New ()
static int	IsTypeOf (const char *type)
static vtkBridgeCellIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBridgeCellIterator ()
virtual	~vtkBridgeCellIterator ()
Protected Attributes
vtkBridgeCellIteratorStrategy *	CurrentIterator
vtkBridgeCellIteratorOnDataSet *	IteratorOnDataSet
vtkBridgeCellIteratorOne *	IteratorOneCell
vtkBridgeCellIteratorOnCellBoundaries *	IteratorOnCellBoundaries
vtkBridgeCellIteratorOnCellList *	IteratorOnCellList
vtkBridgeDataSet *	DataSet
vtkIdType	Id
int	OneCell
vtkIdType	Size
vtkBridgeCell *	Cell

---

Member Typedef Documentation

typedef vtkGenericCellIterator vtkBridgeCellIterator::Superclass

Standard VTK construction and type macros. Reimplemented from vtkGenericCellIterator. Definition at line 49 of file vtkBridgeCellIterator.h.

---

Constructor & Destructor Documentation

vtkBridgeCellIterator::vtkBridgeCellIterator (   )  [protected]

virtual vtkBridgeCellIterator::~vtkBridgeCellIterator (   )  [protected, virtual]

---

Member Function Documentation

static vtkBridgeCellIterator* vtkBridgeCellIterator::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkBridgeCellIterator::GetClassName (   )  [virtual]

Standard VTK construction and type macros. Reimplemented from vtkGenericCellIterator.

static int vtkBridgeCellIterator::IsTypeOf (  const char *  type  )  [static]

Standard VTK construction and type macros. Reimplemented from vtkGenericCellIterator.

virtual int vtkBridgeCellIterator::IsA (  const char *  type  )  [virtual]

Standard VTK construction and type macros. Reimplemented from vtkGenericCellIterator.

static vtkBridgeCellIterator* vtkBridgeCellIterator::SafeDownCast (  vtkObject *  o  )  [static]

Standard VTK construction and type macros. Reimplemented from vtkGenericCellIterator.

void vtkBridgeCellIterator::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Standard VTK construction and type macros. Reimplemented from vtkGenericCellIterator.

void vtkBridgeCellIterator::Begin (   )  [virtual]

Move iterator to first position if any (loop initialization). Implements vtkGenericCellIterator.

int vtkBridgeCellIterator::IsAtEnd (   )  [virtual]

Is there no cell at iterator position? (exit condition). Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIterator::NewCell (   )  [virtual]

Create an empty cell. Postcondition: result_exists: result!=0 Implements vtkGenericCellIterator.

void vtkBridgeCellIterator::GetCell (  vtkGenericAdaptorCell *  c  )  [virtual]

Cell at current position Precondition: not_at_end: !IsAtEnd() c_exists: c!=0 THREAD SAFE Implements vtkGenericCellIterator.

vtkGenericAdaptorCell* vtkBridgeCellIterator::GetCell (   )  [virtual]

Cell at current position. NOT THREAD SAFE Precondition: not_at_end: !IsAtEnd() Postcondition: result_exits: result!=0 Implements vtkGenericCellIterator.

void vtkBridgeCellIterator::Next (   )  [virtual]

Move iterator to next position. (loop progression). Precondition: not_at_end: !IsAtEnd() Implements vtkGenericCellIterator.

void vtkBridgeCellIterator::InitWithDataSet (  vtkBridgeDataSet *  ds, int  dim )

Used internally by vtkBridgeDataSet. Iterate over cells of `ds' of some dimension `dim'. Precondition: ds_exists: ds!=0 valid_dim_range: (dim>=-1) && (dim<=3)

void vtkBridgeCellIterator::InitWithDataSetBoundaries (  vtkBridgeDataSet *  ds, int  dim, int  exterior_only )

Used internally by vtkBridgeDataSet. Iterate over boundary cells of `ds' of some dimension `dim'. Precondition: ds_exists: ds!=0 valid_dim_range: (dim>=-1) && (dim<=3)

void vtkBridgeCellIterator::InitWithOneCell (  vtkBridgeDataSet *  ds, vtkIdType  cellid )

Used internally by vtkBridgeDataSet. Iterate on one cell `id' of `ds'. Precondition: ds_exists: ds!=0 valid_id: (id>=0)&&(id<=ds->GetNumberOfCells())

void vtkBridgeCellIterator::InitWithOneCell (  vtkBridgeCell *  c  )

Used internally by vtkBridgeCell. Iterate on one cell `c'. Precondition: c_exists: c!=0

void vtkBridgeCellIterator::InitWithCellBoundaries (  vtkBridgeCell *  cell, int  dim )

Used internally by vtkBridgeCell. Iterate on boundary cells of a cell. Precondition: cell_exists: cell!=0 valid_dim_range: (dim==-1) || ((dim>=0)&&(dim<cell->GetDimension()))

void vtkBridgeCellIterator::InitWithCells (  vtkIdList *  cells, vtkBridgeDataSet *  ds )

Used internally by vtkBridgeCell. Iterate on neighbors defined by `cells' over the dataset `ds'. Precondition: cells_exist: cells!=0 ds_exists: ds!=0

void vtkBridgeCellIterator::InitWithPoints (  vtkPoints *  coords, vtkIdList *  pts, int  dim, vtkIdType  cellid )

Used internally by vtkBridgeCell. Iterate on a boundary cell (defined by its points `pts' with coordinates `coords', dimension `dim' and unique id `cellid') of a cell. Precondition: coords_exist: coords!=0 pts_exist: pts!=0 valid_dim: dim>=0 && dim<=2 valid_points: pts->GetNumberOfIds()>dim

---

Member Data Documentation

vtkBridgeCellIteratorStrategy* vtkBridgeCellIterator::CurrentIterator [protected]

Definition at line 134 of file vtkBridgeCellIterator.h.

vtkBridgeCellIteratorOnDataSet* vtkBridgeCellIterator::IteratorOnDataSet [protected]

Definition at line 135 of file vtkBridgeCellIterator.h.

vtkBridgeCellIteratorOne* vtkBridgeCellIterator::IteratorOneCell [protected]

Definition at line 136 of file vtkBridgeCellIterator.h.

vtkBridgeCellIteratorOnCellBoundaries* vtkBridgeCellIterator::IteratorOnCellBoundaries [protected]

Definition at line 137 of file vtkBridgeCellIterator.h.

vtkBridgeCellIteratorOnCellList* vtkBridgeCellIterator::IteratorOnCellList [protected]

Definition at line 138 of file vtkBridgeCellIterator.h.

vtkBridgeDataSet* vtkBridgeCellIterator::DataSet [protected]

Definition at line 140 of file vtkBridgeCellIterator.h.

vtkIdType vtkBridgeCellIterator::Id [protected]

Definition at line 141 of file vtkBridgeCellIterator.h.

int vtkBridgeCellIterator::OneCell [protected]

Definition at line 142 of file vtkBridgeCellIterator.h.

vtkIdType vtkBridgeCellIterator::Size [protected]

Definition at line 143 of file vtkBridgeCellIterator.h.

vtkBridgeCell* vtkBridgeCellIterator::Cell [protected]

Definition at line 144 of file vtkBridgeCellIterator.h.

---

The documentation for this class was generated from the following file:

• dox/GenericFiltering/Testing/Cxx/vtkBridgeCellIterator.h

---
