vtkBridgePointIterator Class Reference

#include <vtkBridgePointIterator.h>

Inheritance diagram for vtkBridgePointIterator:

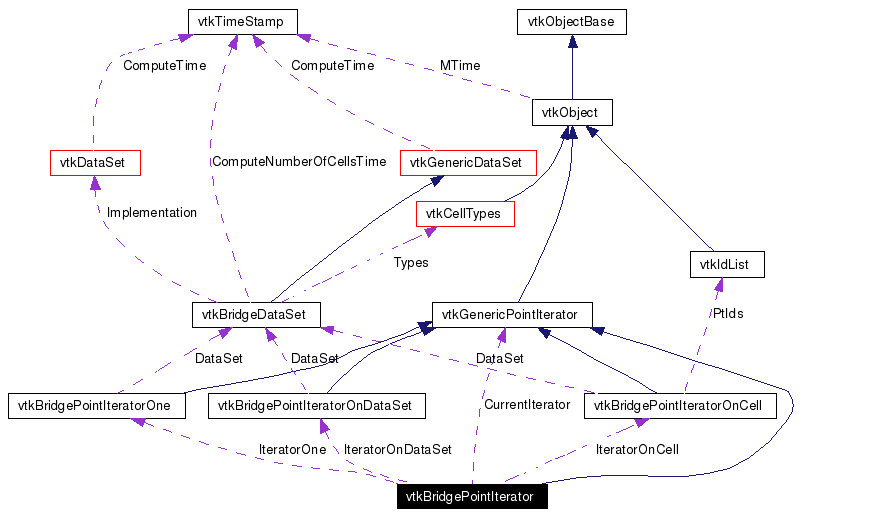

[legend]Collaboration diagram for vtkBridgePointIterator:

[legend]List of all members.

---

Detailed Description

Implementation of vtkGenericPointIterator.

It is just an example that show how to implement the Generic. It is also used for testing and evaluating the Generic.

See also:

vtkGenericPointIterator, vtkBridgeDataSet

Tests:

vtkBridgePointIterator (Tests)

Definition at line 40 of file vtkBridgePointIterator.h.

Public Types
typedef vtkGenericPointIterator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Begin ()
int	IsAtEnd ()
void	Next ()
double *	GetPosition ()
void	GetPosition (double x[3])
vtkIdType	GetId ()
void	InitWithCell (vtkBridgeCell *cell)
void	InitWithDataSet (vtkBridgeDataSet *ds)
void	InitWithOnePoint (vtkBridgeDataSet *ds, vtkIdType id)
Static Public Member Functions
static vtkBridgePointIterator *	New ()
static int	IsTypeOf (const char *type)
static vtkBridgePointIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBridgePointIterator ()
virtual	~vtkBridgePointIterator ()
Protected Attributes
vtkGenericPointIterator *	CurrentIterator
vtkBridgePointIteratorOnDataSet *	IteratorOnDataSet
vtkBridgePointIteratorOne *	IteratorOne
vtkBridgePointIteratorOnCell *	IteratorOnCell

---

Member Typedef Documentation

typedef vtkGenericPointIterator vtkBridgePointIterator::Superclass

Standard VTK construction and type macros. Reimplemented from vtkGenericPointIterator. Definition at line 44 of file vtkBridgePointIterator.h.

---

Constructor & Destructor Documentation

vtkBridgePointIterator::vtkBridgePointIterator (   )  [protected]

Default constructor.

virtual vtkBridgePointIterator::~vtkBridgePointIterator (   )  [protected, virtual]

Destructor.

---

Member Function Documentation

static vtkBridgePointIterator* vtkBridgePointIterator::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkBridgePointIterator::GetClassName (   )  [virtual]

Standard VTK construction and type macros. Reimplemented from vtkGenericPointIterator.

static int vtkBridgePointIterator::IsTypeOf (  const char *  type  )  [static]

Standard VTK construction and type macros. Reimplemented from vtkGenericPointIterator.

virtual int vtkBridgePointIterator::IsA (  const char *  type  )  [virtual]

Standard VTK construction and type macros. Reimplemented from vtkGenericPointIterator.

static vtkBridgePointIterator* vtkBridgePointIterator::SafeDownCast (  vtkObject *  o  )  [static]

Standard VTK construction and type macros. Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIterator::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Standard VTK construction and type macros. Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIterator::Begin (   )  [virtual]

Move iterator to first position if any (loop initialization). Implements vtkGenericPointIterator.

int vtkBridgePointIterator::IsAtEnd (   )  [virtual]

Is there no point at iterator position? (exit condition). Implements vtkGenericPointIterator.

void vtkBridgePointIterator::Next (   )  [virtual]

Move iterator to next position. (loop progression). Precondition: not_off: !IsAtEnd() Implements vtkGenericPointIterator.

double* vtkBridgePointIterator::GetPosition (   )  [virtual]

Point at iterator position. Precondition: not_off: !IsAtEnd() Postcondition: result_exists: result!=0 Implements vtkGenericPointIterator.

void vtkBridgePointIterator::GetPosition (  double  x[3]  )  [virtual]

Point at iterator position. Precondition: not_off: !IsAtEnd() x_exists: x!=0 Implements vtkGenericPointIterator.

vtkIdType vtkBridgePointIterator::GetId (   )  [virtual]

Unique identifier for the point, could be non-contiguous Precondition: not_off: !IsAtEnd() Implements vtkGenericPointIterator.

void vtkBridgePointIterator::InitWithDataSet (  vtkBridgeDataSet *  ds  )

Used internally by vtkBridgeDataSet. Iterate over points of `ds'. Precondition: ds_exists: ds!=0

void vtkBridgePointIterator::InitWithOnePoint (  vtkBridgeDataSet *  ds, vtkIdType  id )

Used internally by vtkBridgeDataSet. Iterate over one point of identifier `id' on dataset `ds'. Precondition: ds_can_be_null: ds!=0 || ds==0 valid_id: vtkImplies(ds!=0,(id>=0)&&(id<=ds->GetNumberOfCells()))

void vtkBridgePointIterator::InitWithCell (  vtkBridgeCell *  cell  )

The iterator will iterate over the point of a cell Precondition: cell_exists: cell!=0

---

Member Data Documentation

vtkGenericPointIterator* vtkBridgePointIterator::CurrentIterator [protected]

Definition at line 93 of file vtkBridgePointIterator.h.

vtkBridgePointIteratorOnDataSet* vtkBridgePointIterator::IteratorOnDataSet [protected]

Definition at line 94 of file vtkBridgePointIterator.h.

vtkBridgePointIteratorOne* vtkBridgePointIterator::IteratorOne [protected]

Definition at line 95 of file vtkBridgePointIterator.h.

vtkBridgePointIteratorOnCell* vtkBridgePointIterator::IteratorOnCell [protected]

Definition at line 96 of file vtkBridgePointIterator.h.

---

The documentation for this class was generated from the following file:

• dox/GenericFiltering/Testing/Cxx/vtkBridgePointIterator.h

---
