vtkBYUWriter Class Reference

#include <vtkBYUWriter.h>

Inheritance diagram for vtkBYUWriter:

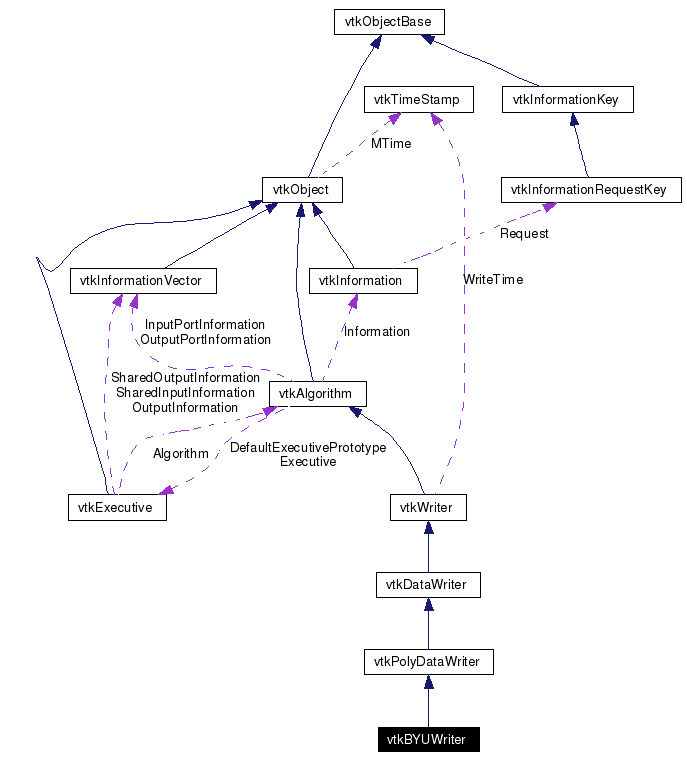

[legend]Collaboration diagram for vtkBYUWriter:

[legend]List of all members.

---

Detailed Description

write MOVIE.BYU files

vtkBYUWriter writes MOVIE.BYU polygonal files. These files consist of a geometry file (.g), a scalar file (.s), a displacement or vector file (.d), and a 2D texture coordinate file (.t). These files must be specified to the object, the appropriate boolean variables must be true, and data must be available from the input for the files to be written. WARNING: this writer does not currently write triangle strips. Use vtkTriangleFilter to convert strips to triangles.

Tests:

vtkBYUWriter (Tests)

Definition at line 36 of file vtkBYUWriter.h.

Public Types
typedef vtkPolyDataWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetGeometryFileName (const char *)
virtual char *	GetGeometryFileName ()
virtual void	SetDisplacementFileName (const char *)
virtual char *	GetDisplacementFileName ()
virtual void	SetScalarFileName (const char *)
virtual char *	GetScalarFileName ()
virtual void	SetTextureFileName (const char *)
virtual char *	GetTextureFileName ()
virtual void	SetWriteDisplacement (int)
virtual int	GetWriteDisplacement ()
virtual void	WriteDisplacementOn ()
virtual void	WriteDisplacementOff ()
virtual void	SetWriteScalar (int)
virtual int	GetWriteScalar ()
virtual void	WriteScalarOn ()
virtual void	WriteScalarOff ()
virtual void	SetWriteTexture (int)
virtual int	GetWriteTexture ()
virtual void	WriteTextureOn ()
virtual void	WriteTextureOff ()
Static Public Member Functions
static vtkBYUWriter *	New ()
static int	IsTypeOf (const char *type)
static vtkBYUWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBYUWriter ()
	~vtkBYUWriter ()
void	WriteData ()
void	WriteGeometryFile (FILE *fp, int numPts)
void	WriteDisplacementFile (int numPts)
void	WriteScalarFile (int numPts)
void	WriteTextureFile (int numPts)
Protected Attributes
char *	GeometryFileName
char *	DisplacementFileName
char *	ScalarFileName
char *	TextureFileName
int	WriteDisplacement
int	WriteScalar
int	WriteTexture

---

Member Typedef Documentation

typedef vtkPolyDataWriter vtkBYUWriter::Superclass

Reimplemented from vtkPolyDataWriter. Definition at line 41 of file vtkBYUWriter.h.

---

Constructor & Destructor Documentation

vtkBYUWriter::vtkBYUWriter (   )  [protected]

vtkBYUWriter::~vtkBYUWriter (   )  [protected]

---

Member Function Documentation

static vtkBYUWriter* vtkBYUWriter::New (   )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkPolyDataWriter.

virtual const char* vtkBYUWriter::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataWriter.

static int vtkBYUWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataWriter.

virtual int vtkBYUWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataWriter.

static vtkBYUWriter* vtkBYUWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataWriter.

void vtkBYUWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataWriter.

virtual void vtkBYUWriter::SetGeometryFileName (  const char *   )  [virtual]

Specify the name of the geometry file to write.

virtual char* vtkBYUWriter::GetGeometryFileName (   )  [virtual]

virtual void vtkBYUWriter::SetDisplacementFileName (  const char *   )  [virtual]

Specify the name of the displacement file to write.

virtual char* vtkBYUWriter::GetDisplacementFileName (   )  [virtual]

Specify the name of the displacement file to write.

virtual void vtkBYUWriter::SetScalarFileName (  const char *   )  [virtual]

Specify the name of the scalar file to write.

virtual char* vtkBYUWriter::GetScalarFileName (   )  [virtual]

Specify the name of the scalar file to write.

virtual void vtkBYUWriter::SetTextureFileName (  const char *   )  [virtual]

Specify the name of the texture file to write.

virtual char* vtkBYUWriter::GetTextureFileName (   )  [virtual]

Specify the name of the texture file to write.

virtual void vtkBYUWriter::SetWriteDisplacement (  int   )  [virtual]

Turn on/off writing the displacement file.

virtual int vtkBYUWriter::GetWriteDisplacement (   )  [virtual]

Turn on/off writing the displacement file.

virtual void vtkBYUWriter::WriteDisplacementOn (   )  [virtual]

Turn on/off writing the displacement file.

virtual void vtkBYUWriter::WriteDisplacementOff (   )  [virtual]

Turn on/off writing the displacement file.

virtual void vtkBYUWriter::SetWriteScalar (  int   )  [virtual]

Turn on/off writing the scalar file.

virtual int vtkBYUWriter::GetWriteScalar (   )  [virtual]

Turn on/off writing the scalar file.

virtual void vtkBYUWriter::WriteScalarOn (   )  [virtual]

Turn on/off writing the scalar file.

virtual void vtkBYUWriter::WriteScalarOff (   )  [virtual]

Turn on/off writing the scalar file.

virtual void vtkBYUWriter::SetWriteTexture (  int   )  [virtual]

Turn on/off writing the texture file.

virtual int vtkBYUWriter::GetWriteTexture (   )  [virtual]

Turn on/off writing the texture file.

virtual void vtkBYUWriter::WriteTextureOn (   )  [virtual]

Turn on/off writing the texture file.

virtual void vtkBYUWriter::WriteTextureOff (   )  [virtual]

Turn on/off writing the texture file.

void vtkBYUWriter::WriteData (   )  [protected, virtual]

Reimplemented from vtkPolyDataWriter.

void vtkBYUWriter::WriteGeometryFile (  FILE *  fp, int  numPts )  [protected]

void vtkBYUWriter::WriteDisplacementFile (  int  numPts  )  [protected]

void vtkBYUWriter::WriteScalarFile (  int  numPts  )  [protected]

void vtkBYUWriter::WriteTextureFile (  int  numPts  )  [protected]

---

Member Data Documentation

char* vtkBYUWriter::GeometryFileName [protected]

Definition at line 95 of file vtkBYUWriter.h.

char* vtkBYUWriter::DisplacementFileName [protected]

Definition at line 96 of file vtkBYUWriter.h.

char* vtkBYUWriter::ScalarFileName [protected]

Definition at line 97 of file vtkBYUWriter.h.

char* vtkBYUWriter::TextureFileName [protected]

Definition at line 98 of file vtkBYUWriter.h.

int vtkBYUWriter::WriteDisplacement [protected]

Definition at line 99 of file vtkBYUWriter.h.

int vtkBYUWriter::WriteScalar [protected]

Definition at line 100 of file vtkBYUWriter.h.

int vtkBYUWriter::WriteTexture [protected]

Definition at line 101 of file vtkBYUWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkBYUWriter.h

---
