vtkCarbonRenderWindowInteractor Class Reference

#include <vtkCarbonRenderWindowInteractor.h>

Inheritance diagram for vtkCarbonRenderWindowInteractor:

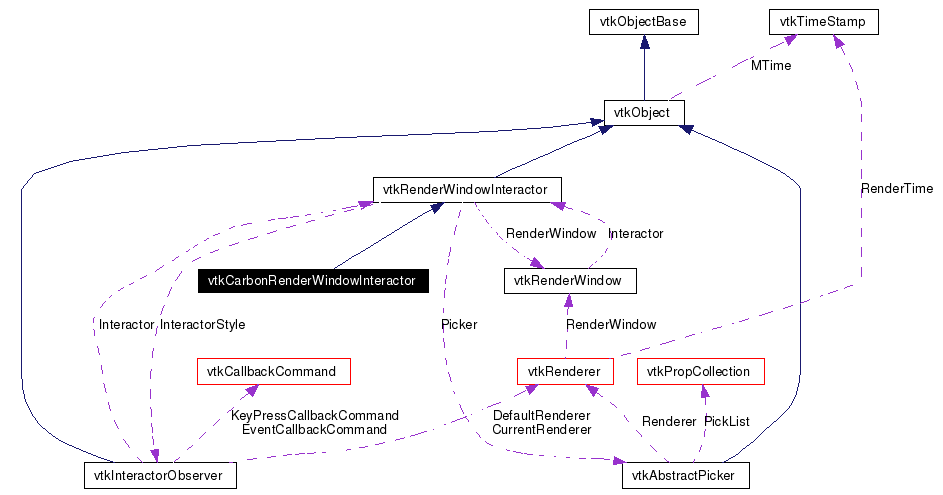

[legend]Collaboration diagram for vtkCarbonRenderWindowInteractor:

[legend]List of all members.

---

Detailed Description

implements Carbon specific functions required by vtkRenderWindowInteractor.

The interactor interfaces with vtkCarbonWindow.mm and vtkCarbonGLView.mm to trap messages from the Carbon window manager and send them to vtk.

Events:

vtkCommand::KeyPressEvent vtkCommand::MouseMoveEvent vtkCommand::ExitEvent vtkCommand::MouseWheelForwardEvent vtkCommand::ConfigureEvent vtkCommand::MouseWheelBackwardEvent vtkCommand::MiddleButtonPressEvent vtkCommand::KeyReleaseEvent vtkCommand::StartEvent vtkCommand::LeftButtonPressEvent vtkCommand::MiddleButtonReleaseEvent vtkCommand::RightButtonPressEvent vtkCommand::RightButtonReleaseEvent vtkCommand::LeftButtonReleaseEvent vtkCommand::CharEvent

Definition at line 36 of file vtkCarbonRenderWindowInteractor.h.

	~vtkCarbonRenderWindowInteractor ()
static void(*	ClassExitMethod )(void *)
static void(*	ClassExitMethodArgDelete )(void *)
static void *	ClassExitMethodArg
Public Types
typedef vtkRenderWindowInteractor	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ExitCallback ()
virtual void	Initialize ()
virtual void	Enable ()
virtual void	Disable ()
virtual void	Start ()
virtual void	SetInstallMessageProc (int)
virtual int	GetInstallMessageProc ()
virtual void	InstallMessageProcOn ()
virtual void	InstallMessageProcOff ()
void	TerminateApp (void)
int	CreateTimer (int timertype)
int	DestroyTimer (void)
Static Public Member Functions
static vtkCarbonRenderWindowInteractor *	New ()
static int	IsTypeOf (const char *type)
static vtkCarbonRenderWindowInteractor *	SafeDownCast (vtkObject *o)
static void	SetClassExitMethod (void(*f)(void *), void *arg)
static void	SetClassExitMethodArgDelete (void(*f)(void *))
Protected Member Functions
	vtkCarbonRenderWindowInteractor ()
Protected Attributes
EventLoopTimerRef	TimerId
EventHandlerUPP	ViewProcUPP
EventHandlerUPP	WindowProcUPP
int	InstallMessageProc

---

Member Typedef Documentation

typedef vtkRenderWindowInteractor vtkCarbonRenderWindowInteractor::Superclass

Reimplemented from vtkRenderWindowInteractor. Definition at line 41 of file vtkCarbonRenderWindowInteractor.h.

---

Constructor & Destructor Documentation

vtkCarbonRenderWindowInteractor::vtkCarbonRenderWindowInteractor (   )  [protected]

vtkCarbonRenderWindowInteractor::~vtkCarbonRenderWindowInteractor (   )  [protected]

---

Member Function Documentation

static vtkCarbonRenderWindowInteractor* vtkCarbonRenderWindowInteractor::New (   )  [static]

Construct object so that light follows camera motion. Reimplemented from vtkRenderWindowInteractor.

virtual const char* vtkCarbonRenderWindowInteractor::GetClassName (   )  [virtual]

Reimplemented from vtkRenderWindowInteractor.

static int vtkCarbonRenderWindowInteractor::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindowInteractor.

virtual int vtkCarbonRenderWindowInteractor::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindowInteractor.

static vtkCarbonRenderWindowInteractor* vtkCarbonRenderWindowInteractor::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkRenderWindowInteractor.

void vtkCarbonRenderWindowInteractor::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkRenderWindowInteractor.

virtual void vtkCarbonRenderWindowInteractor::Initialize (   )  [virtual]

Initialize the even handler Reimplemented from vtkRenderWindowInteractor.

virtual void vtkCarbonRenderWindowInteractor::Enable (   )  [virtual]

Enable/Disable interactions. By default interactors are enabled when initialized. Initialize() must be called prior to enabling/disabling interaction. These methods are used when a window/widget is being shared by multiple renderers and interactors. This allows a "modal" display where one interactor is active when its data is to be displayed and all other interactors associated with the widget are disabled when their data is not displayed. Reimplemented from vtkRenderWindowInteractor.

virtual void vtkCarbonRenderWindowInteractor::Disable (   )  [virtual]

Initialize the even handler Reimplemented from vtkRenderWindowInteractor.

virtual void vtkCarbonRenderWindowInteractor::Start (   )  [virtual]

This will start up the event loop and never return. If you call this method it will loop processing events until the application is exited. Reimplemented from vtkRenderWindowInteractor.

virtual void vtkCarbonRenderWindowInteractor::SetInstallMessageProc (  int   )  [virtual]

By default the interactor installs a MessageProc callback which intercepts windows messages to the window and controls interactions. MFC or BCB programs can prevent this and instead directly route any mouse/key messages into the event bindings by setting InstallMessgeProc to false.

virtual int vtkCarbonRenderWindowInteractor::GetInstallMessageProc (   )  [virtual]

This will start up the event loop and never return. If you call this method it will loop processing events until the application is exited.

virtual void vtkCarbonRenderWindowInteractor::InstallMessageProcOn (   )  [virtual]

This will start up the event loop and never return. If you call this method it will loop processing events until the application is exited.

virtual void vtkCarbonRenderWindowInteractor::InstallMessageProcOff (   )  [virtual]

This will start up the event loop and never return. If you call this method it will loop processing events until the application is exited.

void vtkCarbonRenderWindowInteractor::TerminateApp (  void   )  [virtual]

Carbon specific application terminate, calls ClassExitMethod then calls PostQuitMessage(0) to terminate app. An application can Specify ExitMethod for alternative behaviour (i.e. suppresion of keyboard exit) Reimplemented from vtkRenderWindowInteractor.

int vtkCarbonRenderWindowInteractor::CreateTimer (  int  timertype  )  [virtual]

Carbon timer methods Reimplemented from vtkRenderWindowInteractor.

int vtkCarbonRenderWindowInteractor::DestroyTimer (  void   )  [virtual]

Carbon specific application terminate, calls ClassExitMethod then calls PostQuitMessage(0) to terminate app. An application can Specify ExitMethod for alternative behaviour (i.e. suppresion of keyboard exit) Reimplemented from vtkRenderWindowInteractor.

static void vtkCarbonRenderWindowInteractor::SetClassExitMethod (  void(*)(void *)  f, void *  arg )  [static]

Methods to set the default exit method for the class. This method is only used if no instance level ExitMethod has been defined. It is provided as a means to control how an interactor is exited given the various language bindings (tcl, Carbon, etc.).

static void vtkCarbonRenderWindowInteractor::SetClassExitMethodArgDelete (  void(*)(void *)  f  )  [static]

Methods to set the default exit method for the class. This method is only used if no instance level ExitMethod has been defined. It is provided as a means to control how an interactor is exited given the various language bindings (tcl, Carbon, etc.).

virtual void vtkCarbonRenderWindowInteractor::ExitCallback (   )  [virtual]

These methods correspond to the the Exit, User and Pick callbacks. They allow for the Style to invoke them. Reimplemented from vtkRenderWindowInteractor.

---

Member Data Documentation

EventLoopTimerRef vtkCarbonRenderWindowInteractor::TimerId [protected]

Definition at line 104 of file vtkCarbonRenderWindowInteractor.h.

EventHandlerUPP vtkCarbonRenderWindowInteractor::ViewProcUPP [protected]

Definition at line 105 of file vtkCarbonRenderWindowInteractor.h.

EventHandlerUPP vtkCarbonRenderWindowInteractor::WindowProcUPP [protected]

Definition at line 106 of file vtkCarbonRenderWindowInteractor.h.

int vtkCarbonRenderWindowInteractor::InstallMessageProc [protected]

Definition at line 107 of file vtkCarbonRenderWindowInteractor.h.

void(* vtkCarbonRenderWindowInteractor::ClassExitMethod)(void *) [static, protected]

Class variables so an exit method can be defined for this class (used to set different exit methods for various language bindings, i.e. tcl, java, Carbon)

void(* vtkCarbonRenderWindowInteractor::ClassExitMethodArgDelete)(void *) [static, protected]

void* vtkCarbonRenderWindowInteractor::ClassExitMethodArg [static, protected]

Definition at line 116 of file vtkCarbonRenderWindowInteractor.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkCarbonRenderWindowInteractor.h

---
