vtkCollectPolyData Class Reference

#include <vtkCollectPolyData.h>

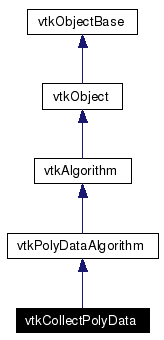

Inheritance diagram for vtkCollectPolyData:

Inheritance graph
[legend]

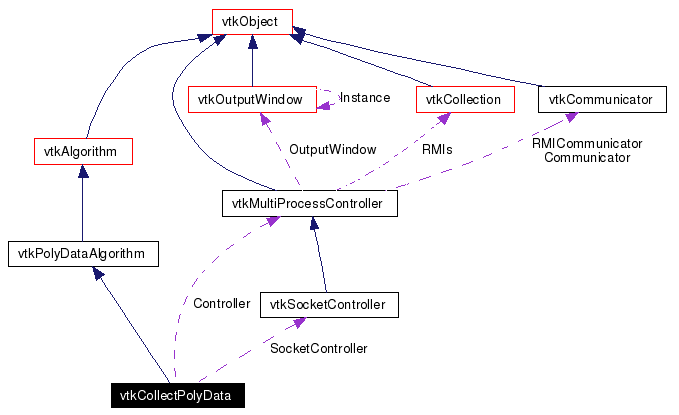

Collaboration diagram for vtkCollectPolyData:

Collaboration graph
[legend]
List of all members.

Detailed Description

Collect distributed polydata.

This filter has code to collect polydat from across processes onto node 0. Collection can be turned on or off using the "PassThrough" flag.

Definition at line 30 of file vtkCollectPolyData.h.

Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetSocketController (vtkSocketController *)
virtual vtkSocketControllerGetSocketController ()
virtual void SetPassThrough (int)
virtual int GetPassThrough ()
virtual void PassThroughOn ()
virtual void PassThroughOff ()

Static Public Member Functions

static vtkCollectPolyDataNew ()
static int IsTypeOf (const char *type)
static vtkCollectPolyDataSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkCollectPolyData ()
 ~vtkCollectPolyData ()
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int PassThrough
vtkMultiProcessControllerController
vtkSocketControllerSocketController


Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkCollectPolyData::Superclass


Reimplemented from vtkPolyDataAlgorithm.

Definition at line 34 of file vtkCollectPolyData.h.


Constructor & Destructor Documentation

vtkCollectPolyData::vtkCollectPolyData  )  [protected]


vtkCollectPolyData::~vtkCollectPolyData  )  [protected]



Member Function Documentation

static vtkCollectPolyData* vtkCollectPolyData::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkCollectPolyData::GetClassName  )  [virtual]


Reimplemented from vtkPolyDataAlgorithm.

static int vtkCollectPolyData::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCollectPolyData::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkCollectPolyData* vtkCollectPolyData::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkPolyDataAlgorithm.

void vtkCollectPolyData::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkCollectPolyData::SetController vtkMultiProcessController  )  [virtual]


By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkCollectPolyData::GetController  )  [virtual]


virtual void vtkCollectPolyData::SetSocketController vtkSocketController  )  [virtual]


When this filter is being used in client-server mode, this is the controller used to communicate between client and server. Client should not set the other controller.

virtual vtkSocketController* vtkCollectPolyData::GetSocketController  )  [virtual]


When this filter is being used in client-server mode, this is the controller used to communicate between client and server. Client should not set the other controller.

virtual void vtkCollectPolyData::SetPassThrough int   )  [virtual]


To collect or just copy input to output. Off (collect) by default.

virtual int vtkCollectPolyData::GetPassThrough  )  [virtual]


To collect or just copy input to output. Off (collect) by default.

virtual void vtkCollectPolyData::PassThroughOn  )  [virtual]


To collect or just copy input to output. Off (collect) by default.

virtual void vtkCollectPolyData::PassThroughOff  )  [virtual]


To collect or just copy input to output. Off (collect) by default.

virtual int vtkCollectPolyData::RequestUpdateExtent vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCollectPolyData::RequestData vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCollectPolyData::RequestInformation vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

int vtkCollectPolyData::PassThrough [protected]


Definition at line 63 of file vtkCollectPolyData.h.

vtkMultiProcessController* vtkCollectPolyData::Controller [protected]


Definition at line 70 of file vtkCollectPolyData.h.

vtkSocketController* vtkCollectPolyData::SocketController [protected]


Definition at line 71 of file vtkCollectPolyData.h.


The documentation for this class was generated from the following file:
