vtkExtractUserDefinedPiece Class Reference

#include <vtkExtractUserDefinedPiece.h>

Inheritance diagram for vtkExtractUserDefinedPiece:

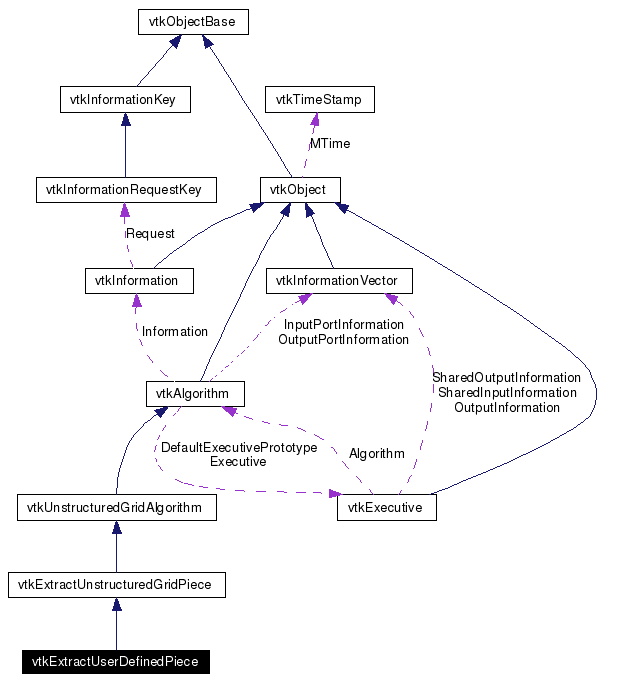

[legend]Collaboration diagram for vtkExtractUserDefinedPiece:

[legend]List of all members.

---

Detailed Description

Return user specified piece with ghost cells.

Provided a function that determines which cells are zero-level cells ("the piece"), this class outputs the piece with the requested number of ghost levels. The only difference between this class and the class it is derived from is that the zero-level cells are specified by a function you provide, instead of determined by dividing up the cells based on cell Id.

See also:

vtkExtractUnstructuredGridPiece

Definition at line 40 of file vtkExtractUserDefinedPiece.h.

Public Types
typedef vtkExtractUnstructuredGridPiece	Superclass
typedef int(*	UserDefFunc )(vtkIdType cellID, vtkUnstructuredGrid *grid, void *constantData)
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
void	SetPieceFunction (UserDefFunc func)
void	SetConstantData (void *data, int len)
int	GetConstantData (void **data)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkExtractUserDefinedPiece *	SafeDownCast (vtkObject *o)
static vtkExtractUserDefinedPiece *	New ()
Protected Member Functions
	vtkExtractUserDefinedPiece ()
	~vtkExtractUserDefinedPiece ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	ComputeCellTagsWithFunction (vtkIntArray *tags, vtkIdList *pointOwnership, vtkUnstructuredGrid *input)

---

Member Typedef Documentation

typedef vtkExtractUnstructuredGridPiece vtkExtractUserDefinedPiece::Superclass

Reimplemented from vtkExtractUnstructuredGridPiece. Definition at line 43 of file vtkExtractUserDefinedPiece.h.

typedef int(* vtkExtractUserDefinedPiece::UserDefFunc)(vtkIdType cellID, vtkUnstructuredGrid *grid, void *constantData)

Definition at line 48 of file vtkExtractUserDefinedPiece.h.

---

Constructor & Destructor Documentation

vtkExtractUserDefinedPiece::vtkExtractUserDefinedPiece (   )  [protected]

vtkExtractUserDefinedPiece::~vtkExtractUserDefinedPiece (   )  [protected]

---

Member Function Documentation

virtual const char* vtkExtractUserDefinedPiece::GetClassName (   )  [virtual]

Reimplemented from vtkExtractUnstructuredGridPiece.

static int vtkExtractUserDefinedPiece::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkExtractUnstructuredGridPiece.

virtual int vtkExtractUserDefinedPiece::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkExtractUnstructuredGridPiece.

static vtkExtractUserDefinedPiece* vtkExtractUserDefinedPiece::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkExtractUnstructuredGridPiece.

static vtkExtractUserDefinedPiece* vtkExtractUserDefinedPiece::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkExtractUnstructuredGridPiece.

virtual void vtkExtractUserDefinedPiece::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkExtractUnstructuredGridPiece.

void vtkExtractUserDefinedPiece::SetPieceFunction (  UserDefFunc  func  )  [inline]

Definition at line 53 of file vtkExtractUserDefinedPiece.h. References vtkObject::Modified().

void vtkExtractUserDefinedPiece::SetConstantData (  void *  data, int  len )

int vtkExtractUserDefinedPiece::GetConstantData (  void **  data  )

virtual int vtkExtractUserDefinedPiece::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkExtractUnstructuredGridPiece.

void vtkExtractUserDefinedPiece::ComputeCellTagsWithFunction (  vtkIntArray *  tags, vtkIdList *  pointOwnership, vtkUnstructuredGrid *  input )  [protected]

---

The documentation for this class was generated from the following file:

• dox/Parallel/vtkExtractUserDefinedPiece.h

---
