vtkGenericOutlineFilter Class Reference

#include <vtkGenericOutlineFilter.h>

Inheritance diagram for vtkGenericOutlineFilter:

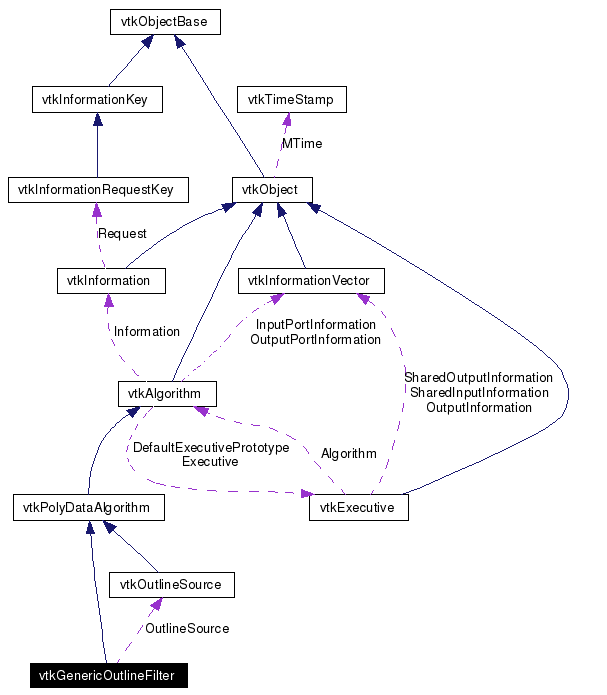

[legend]Collaboration diagram for vtkGenericOutlineFilter:

[legend]List of all members.

---

Detailed Description

create wireframe outline for arbitrary generic data set

vtkGenericOutlineFilter is a filter that generates a wireframe outline of any generic data set. The outline consists of the twelve edges of the generic dataset bounding box.

Tests:

vtkGenericOutlineFilter (Tests)

Definition at line 34 of file vtkGenericOutlineFilter.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
Static Public Member Functions
static vtkGenericOutlineFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkGenericOutlineFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGenericOutlineFilter ()
	~vtkGenericOutlineFilter ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	FillInputPortInformation (int, vtkInformation *)
Protected Attributes
vtkOutlineSource *	OutlineSource

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkGenericOutlineFilter::Superclass

Reimplemented from vtkPolyDataAlgorithm. Definition at line 38 of file vtkGenericOutlineFilter.h.

---

Constructor & Destructor Documentation

vtkGenericOutlineFilter::vtkGenericOutlineFilter (   )  [protected]

vtkGenericOutlineFilter::~vtkGenericOutlineFilter (   )  [protected]

---

Member Function Documentation

static vtkGenericOutlineFilter* vtkGenericOutlineFilter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkGenericOutlineFilter::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkGenericOutlineFilter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkGenericOutlineFilter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

static vtkGenericOutlineFilter* vtkGenericOutlineFilter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

int vtkGenericOutlineFilter::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

int vtkGenericOutlineFilter::RequestInformation (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

int vtkGenericOutlineFilter::FillInputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkPolyDataAlgorithm.

---

Member Data Documentation

vtkOutlineSource* vtkGenericOutlineFilter::OutlineSource [protected]

Definition at line 44 of file vtkGenericOutlineFilter.h.

---

The documentation for this class was generated from the following file:

• dox/GenericFiltering/vtkGenericOutlineFilter.h

---
