vtkHierarchicalDataIterator Class Reference

#include <vtkHierarchicalDataIterator.h>

Inheritance diagram for vtkHierarchicalDataIterator:

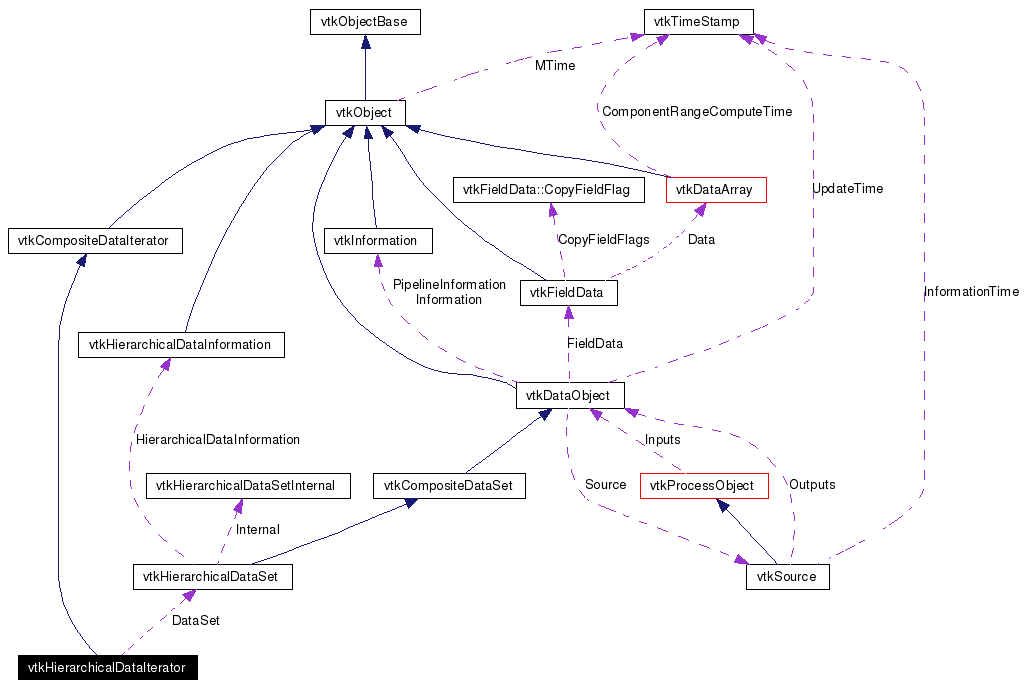

[legend]Collaboration diagram for vtkHierarchicalDataIterator:

[legend]List of all members.

---

Detailed Description

iterator to access datasets in a vtkHierarchicalDataIterator

vtkHierarchicalDataIterator is a concrete implementation of vtkCompositeDataIterator for vtkHierarchicalDataSet. It allows flat and forward access to the datasets in the hierchical dataset.

Definition at line 31 of file vtkHierarchicalDataIterator.h.

Public Types
typedef vtkCompositeDataIterator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	GoToFirstItem ()
virtual void	GoToNextItem ()
virtual int	IsDoneWithTraversal ()
virtual vtkDataObject *	GetCurrentDataObject ()
void	SetDataSet (vtkHierarchicalDataSet *dataset)
virtual vtkHierarchicalDataSet *	GetDataSet ()
Static Public Member Functions
static vtkHierarchicalDataIterator *	New ()
static int	IsTypeOf (const char *type)
static vtkHierarchicalDataIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkHierarchicalDataIterator ()
virtual	~vtkHierarchicalDataIterator ()
void	GoToNextNonEmptyLevel ()
Protected Attributes
vtkHierarchicalDataSet *	DataSet
vtkHierarchicalDataIteratorInternal *	Internal

---

Member Typedef Documentation

typedef vtkCompositeDataIterator vtkHierarchicalDataIterator::Superclass

Reimplemented from vtkCompositeDataIterator. Definition at line 36 of file vtkHierarchicalDataIterator.h.

---

Constructor & Destructor Documentation

vtkHierarchicalDataIterator::vtkHierarchicalDataIterator (   )  [protected]

virtual vtkHierarchicalDataIterator::~vtkHierarchicalDataIterator (   )  [protected, virtual]

---

Member Function Documentation

static vtkHierarchicalDataIterator* vtkHierarchicalDataIterator::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkHierarchicalDataIterator::GetClassName (   )  [virtual]

Reimplemented from vtkCompositeDataIterator.

static int vtkHierarchicalDataIterator::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkCompositeDataIterator.

virtual int vtkHierarchicalDataIterator::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkCompositeDataIterator.

static vtkHierarchicalDataIterator* vtkHierarchicalDataIterator::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkCompositeDataIterator.

void vtkHierarchicalDataIterator::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkCompositeDataIterator.

virtual void vtkHierarchicalDataIterator::GoToFirstItem (   )  [virtual]

Move the iterator to the beginning of the collection. Implements vtkCompositeDataIterator.

virtual void vtkHierarchicalDataIterator::GoToNextItem (   )  [virtual]

Move the iterator to the next item in the collection. Implements vtkCompositeDataIterator.

virtual int vtkHierarchicalDataIterator::IsDoneWithTraversal (   )  [virtual]

Test whether the iterator is currently pointing to a valid item. Returns 1 for yes, 0 for no. Implements vtkCompositeDataIterator.

virtual vtkDataObject* vtkHierarchicalDataIterator::GetCurrentDataObject (   )  [virtual]

Get the current item. Valid only when IsDoneWithTraversal() returns 1. Implements vtkCompositeDataIterator.

void vtkHierarchicalDataIterator::SetDataSet (  vtkHierarchicalDataSet *  dataset  )

Set the data object to iterator over.

virtual vtkHierarchicalDataSet* vtkHierarchicalDataIterator::GetDataSet (   )  [virtual]

Get the current item. Valid only when IsDoneWithTraversal() returns 1.

void vtkHierarchicalDataIterator::GoToNextNonEmptyLevel (   )  [protected]

---

Member Data Documentation

vtkHierarchicalDataSet* vtkHierarchicalDataIterator::DataSet [protected]

Definition at line 65 of file vtkHierarchicalDataIterator.h.

vtkHierarchicalDataIteratorInternal* vtkHierarchicalDataIterator::Internal [protected]

Definition at line 66 of file vtkHierarchicalDataIterator.h.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkHierarchicalDataIterator.h

---
