#include <vtkImageExport.h>

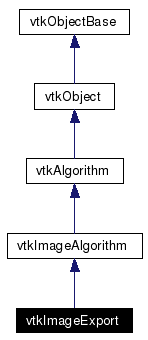

Inheritance diagram for vtkImageExport:
vtkImageExport provides a way of exporting image data at the end of a pipeline to a third-party system or to a simple C array. Applications can use this to get direct access to the image data in memory. A callback interface is provided to allow connection of the VTK pipeline to a third-party pipeline. This interface conforms to the interface of vtkImageImport. In Python it is possible to use this class to write the image data into a python string that has been pre-allocated to be the correct size.
Definition at line 39 of file vtkImageExport.h.
|
Reimplemented from vtkImageAlgorithm. Definition at line 43 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 126 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 127 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 128 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 129 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 130 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 131 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 132 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 133 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 134 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 135 of file vtkImageExport.h. |
|
These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h. Definition at line 136 of file vtkImageExport.h. |
|
|
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm. |
|
Reimplemented from vtkImageAlgorithm. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. |
|
Reimplemented from vtkImageAlgorithm. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageAlgorithm. |
|
Get the number of bytes required for the output C array. |
|
Get the (x,y,z) index dimensions of the data. Please note that C arrays are indexed in decreasing order, i.e. array[z][y][x]. |
|
Get the number of bytes required for the output C array. Definition at line 53 of file vtkImageExport.h. |
|
Get the number of scalar components of the data. Please note that when you index into a C array, the scalar component index comes last, i.e. array[z][y][x][c]. |
|
Get the scalar type of the data. The scalar type of the C array must match the scalar type of the data. |
|
Get the number of scalar components of the data. Please note that when you index into a C array, the scalar component index comes last, i.e. array[z][y][x][c]. Definition at line 67 of file vtkImageExport.h. |
|
Get miscellaneous additional information about the data. |
|
Get miscellaneous additional information about the data. |
|
Get miscellaneous additional information about the data. |
|
Get miscellaneous additional information about the data. |
|
Get miscellaneous additional information about the data. |
|
Get miscellaneous additional information about the data. |
|
Get the input object from the image pipeline. Reimplemented from vtkImageAlgorithm. |
|
Set/Get whether the data goes to the exported memory starting in the lower left corner or upper left corner. Default: On. When this flag is Off, the image will be flipped vertically before it is exported. WARNING: this flag is used only with the Export() method, it is ignored by GetPointerToData(). |
|
Get the input object from the image pipeline. |
|
Get the input object from the image pipeline. |
|
Get the input object from the image pipeline. |
|
Set the void pointer of the C array to export the data to. From python, you can specify a pointer to a string that is large enough to hold the data. |
|
Set the void pointer of the C array to export the data to. From python, you can specify a pointer to a string that is large enough to hold the data. Definition at line 102 of file vtkImageExport.h. |
|
The main interface: update the pipeline and export the image to the memory pointed to by SetExportVoidPointer(). You can also specify a void pointer when you call Export(). Definition at line 109 of file vtkImageExport.h. |
|
The main interface: update the pipeline and export the image to the memory pointed to by SetExportVoidPointer(). You can also specify a void pointer when you call Export(). |
|
An alternative to Export(): Use with caution. Update the pipeline and return a pointer to the image memory. The pointer is only valid until the next time that the pipeline is updated. WARNING: This method ignores the ImageLowerLeft flag. |
|
Get the user data that should be passed to the callback functions. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
Get pointers to the pipeline interface callbacks. |
|
This is called by the superclass. This is the method you should override. Reimplemented from vtkImageAlgorithm. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Definition at line 176 of file vtkImageExport.h. |
|
Definition at line 177 of file vtkImageExport.h. |
|
Definition at line 178 of file vtkImageExport.h. |
|
Definition at line 180 of file vtkImageExport.h. |
