#include <vtkImageGaussianSource.h>

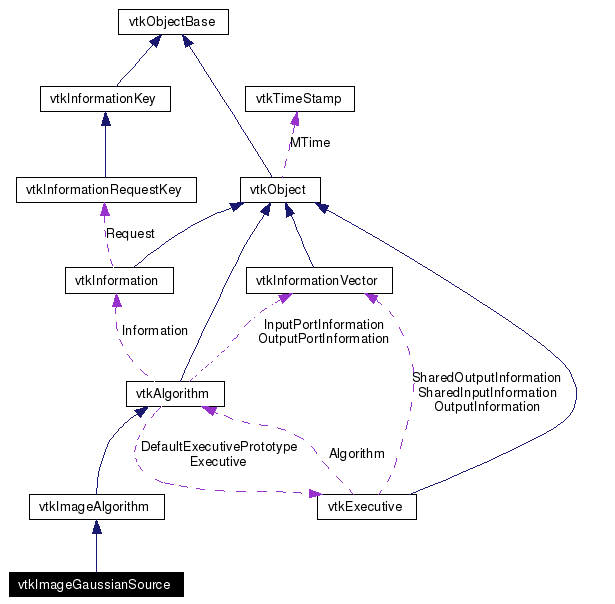

Inheritance diagram for vtkImageGaussianSource:
vtkImageGaussianSource just produces images with pixel values determined by a Gaussian.
Definition at line 30 of file vtkImageGaussianSource.h.
Public Types | |
typedef vtkImageAlgorithm | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
void | SetWholeExtent (int xMinx, int xMax, int yMin, int yMax, int zMin, int zMax) |
virtual void | SetCenter (double, double, double) |
virtual void | SetCenter (double[3]) |
virtual double * | GetCenter () |
virtual void | GetCenter (double &, double &, double &) |
virtual void | GetCenter (double[3]) |
virtual void | SetMaximum (double) |
virtual double | GetMaximum () |
virtual void | SetStandardDeviation (double) |
virtual double | GetStandardDeviation () |
Static Public Member Functions | |
static vtkImageGaussianSource * | New () |
static int | IsTypeOf (const char *type) |
static vtkImageGaussianSource * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
vtkImageGaussianSource () | |
~vtkImageGaussianSource () | |
virtual int | RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
virtual int | RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
Protected Attributes | |
double | StandardDeviation |
int | WholeExtent [6] |
double | Center [3] |
double | Maximum |
|
Reimplemented from vtkImageAlgorithm. Definition at line 34 of file vtkImageGaussianSource.h. |
|
|
|
Definition at line 63 of file vtkImageGaussianSource.h. |
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm. |
|
Reimplemented from vtkImageAlgorithm. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. |
|
Reimplemented from vtkImageAlgorithm. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageAlgorithm. |
|
Set/Get the extent of the whole output image. |
|
Set/Get the center of the Gaussian. |
|
Set/Get the center of the Gaussian. |
|
Set/Get the center of the Gaussian. |
|
Set/Get the center of the Gaussian. |
|
Set/Get the center of the Gaussian. |
|
Set/Get the Maximum value of the gaussian |
|
Set/Get the Maximum value of the gaussian |
|
Set/Get the standard deviation of the gaussian |
|
Set/Get the standard deviation of the gaussian |
|
Reimplemented from vtkImageAlgorithm. |
|
This is called by the superclass. This is the method you should override. Reimplemented from vtkImageAlgorithm. |
|
Definition at line 63 of file vtkImageGaussianSource.h. |
|
Definition at line 66 of file vtkImageGaussianSource.h. |
|
Definition at line 67 of file vtkImageGaussianSource.h. |
|
Definition at line 68 of file vtkImageGaussianSource.h. |
