#include <vtkImageNoiseSource.h>

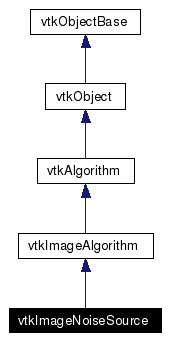

Inheritance diagram for vtkImageNoiseSource:
vtkImageNoiseSource just produces images filled with noise. The only option now is uniform noise specified by a min and a max. There is one major problem with this source. Every time it executes, it will output different pixel values. This has important implications when a stream requests overlapping regions. The same pixels will have different values on different updates.
Definition at line 36 of file vtkImageNoiseSource.h.
Public Types | |
typedef vtkImageAlgorithm | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
virtual void | SetMinimum (double) |
virtual double | GetMinimum () |
virtual void | SetMaximum (double) |
virtual double | GetMaximum () |
void | SetWholeExtent (int xMinx, int xMax, int yMin, int yMax, int zMin, int zMax) |
Static Public Member Functions | |
static vtkImageNoiseSource * | New () |
static int | IsTypeOf (const char *type) |
static vtkImageNoiseSource * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
vtkImageNoiseSource () | |
~vtkImageNoiseSource () | |
virtual int | RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
virtual void | ExecuteData (vtkDataObject *data) |
Protected Attributes | |
double | Minimum |
double | Maximum |
int | WholeExtent [6] |
|
Reimplemented from vtkImageAlgorithm. Definition at line 40 of file vtkImageNoiseSource.h. |
|
|
|
Definition at line 59 of file vtkImageNoiseSource.h. |
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm. |
|
Reimplemented from vtkImageAlgorithm. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageAlgorithm. |
|
Reimplemented from vtkImageAlgorithm. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageAlgorithm. |
|
Set/Get the minimum and maximum values for the generated noise. |
|
|
|
|
|
|
|
Set how large of an image to generate. |
|
Reimplemented from vtkImageAlgorithm. |
|
This method is the old style execute method Reimplemented from vtkImageAlgorithm. |
|
Definition at line 59 of file vtkImageNoiseSource.h. |
|
Definition at line 62 of file vtkImageNoiseSource.h. |
|
Definition at line 63 of file vtkImageNoiseSource.h. |
