vtkInterpolateDataSetAttributes Class Reference

#include <vtkInterpolateDataSetAttributes.h>

Inheritance diagram for vtkInterpolateDataSetAttributes:

Inheritance graph
[legend]

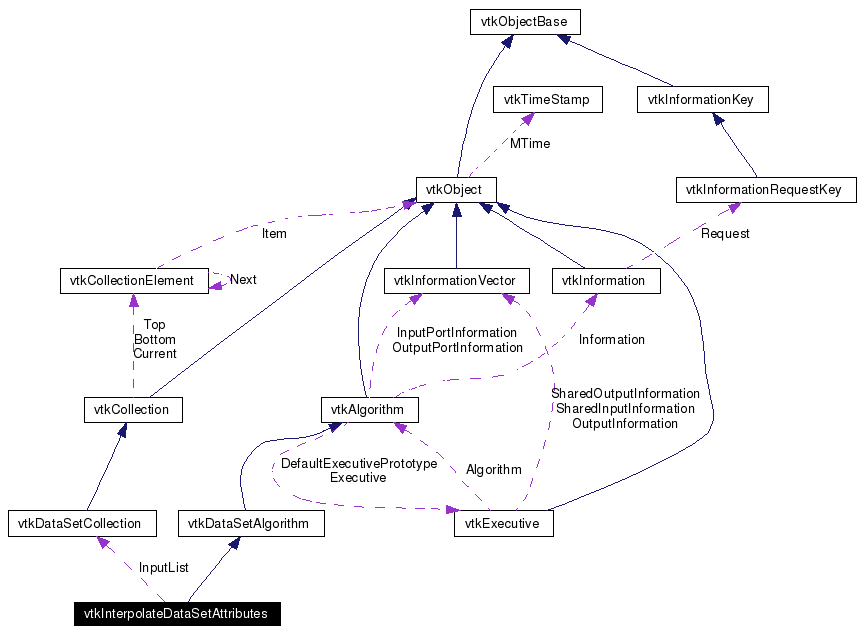

Collaboration diagram for vtkInterpolateDataSetAttributes:

Collaboration graph
[legend]
List of all members.

Detailed Description

interpolate scalars, vectors, etc. and other dataset attributes

vtkInterpolateDataSetAttributes is a filter that interpolates data set attribute values between input data sets. The input to the filter must be datasets of the same type, same number of cells, and same number of points. The output of the filter is a data set of the same type as the input dataset and whose attribute values have been interpolated at the parametric value specified.

The filter is used by specifying two or more input data sets (total of N), and a parametric value t (0 <= t <= N-1). The output will contain interpolated data set attributes common to all input data sets. (For example, if one input has scalars and vectors, and another has just scalars, then only scalars will be interpolated and output.)

Tests:
vtkInterpolateDataSetAttributes (Tests)

Definition at line 42 of file vtkInterpolateDataSetAttributes.h.

Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkDataSetCollectionGetInputList ()
virtual void SetT (double)
virtual double GetT ()

Static Public Member Functions

static vtkInterpolateDataSetAttributesNew ()
static int IsTypeOf (const char *type)
static vtkInterpolateDataSetAttributesSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkInterpolateDataSetAttributes ()
 ~vtkInterpolateDataSetAttributes ()
virtual void ReportReferences (vtkGarbageCollector *)
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkDataSetCollectionInputList
double T


Member Typedef Documentation

typedef vtkDataSetAlgorithm vtkInterpolateDataSetAttributes::Superclass


Reimplemented from vtkDataSetAlgorithm.

Definition at line 46 of file vtkInterpolateDataSetAttributes.h.


Constructor & Destructor Documentation

vtkInterpolateDataSetAttributes::vtkInterpolateDataSetAttributes  )  [protected]


vtkInterpolateDataSetAttributes::~vtkInterpolateDataSetAttributes  )  [protected]



Member Function Documentation

static vtkInterpolateDataSetAttributes* vtkInterpolateDataSetAttributes::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

virtual const char* vtkInterpolateDataSetAttributes::GetClassName  )  [virtual]


Reimplemented from vtkDataSetAlgorithm.

static int vtkInterpolateDataSetAttributes::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkInterpolateDataSetAttributes::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkInterpolateDataSetAttributes* vtkInterpolateDataSetAttributes::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkDataSetAlgorithm.

void vtkInterpolateDataSetAttributes::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

vtkDataSetCollection* vtkInterpolateDataSetAttributes::GetInputList  )


Return the list of inputs to this filter.

virtual void vtkInterpolateDataSetAttributes::SetT double   )  [virtual]


Specify interpolation parameter t.

virtual double vtkInterpolateDataSetAttributes::GetT  )  [virtual]


Return the list of inputs to this filter.

virtual void vtkInterpolateDataSetAttributes::ReportReferences vtkGarbageCollector  )  [protected, virtual]


Reimplemented from vtkAlgorithm.

int vtkInterpolateDataSetAttributes::RequestData vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkDataSetAlgorithm.

int vtkInterpolateDataSetAttributes::FillInputPortInformation int  port,
vtkInformation info
[protected, virtual]


Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataSetAlgorithm.


Member Data Documentation

vtkDataSetCollection* vtkInterpolateDataSetAttributes::InputList [protected]


Definition at line 67 of file vtkInterpolateDataSetAttributes.h.

double vtkInterpolateDataSetAttributes::T [protected]


Definition at line 68 of file vtkInterpolateDataSetAttributes.h.


The documentation for this class was generated from the following file:
