vtkIVExporter Class Reference

#include <vtkIVExporter.h>

Inheritance diagram for vtkIVExporter:

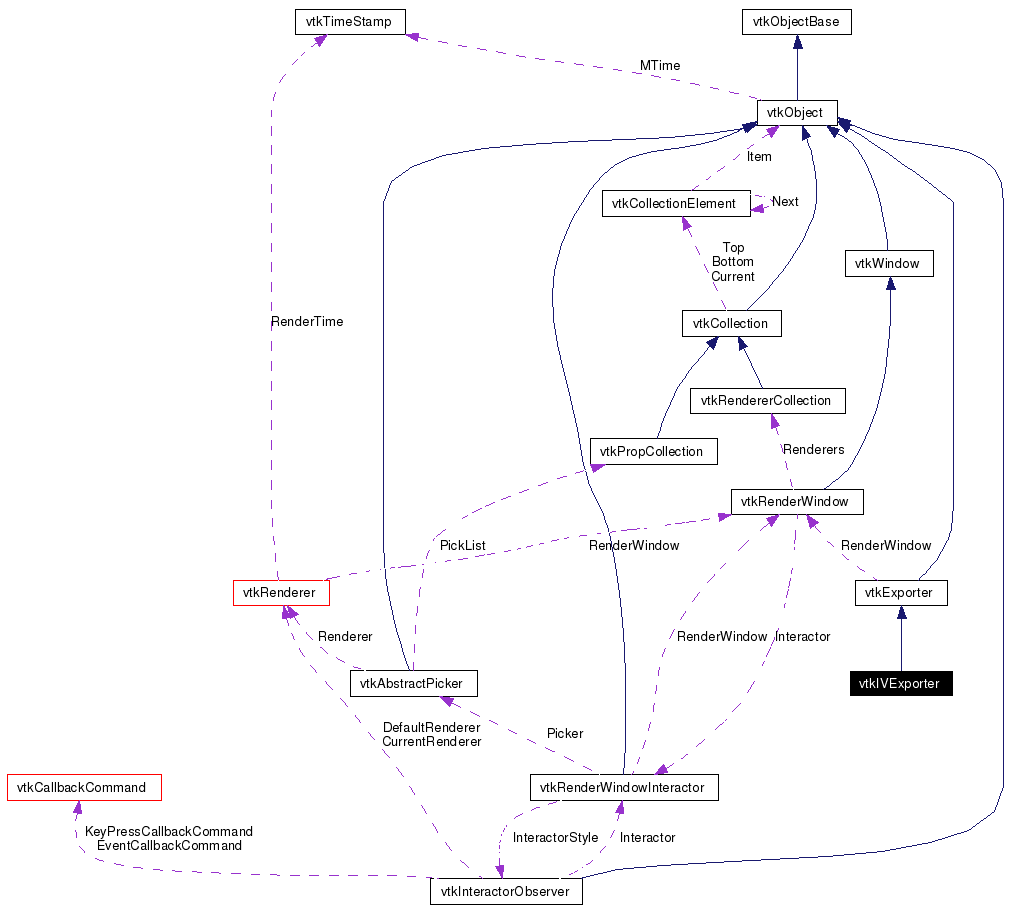

[legend]Collaboration diagram for vtkIVExporter:

[legend]List of all members.

---

Detailed Description

export a scene into OpenInventor 2.0 format.

vtkIVExporter is a concrete subclass of vtkExporter that writes OpenInventor 2.0 files.

See also:

vtkExporter

Tests:

vtkIVExporter (Tests)

Definition at line 39 of file vtkIVExporter.h.

Public Types
typedef vtkExporter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
Static Public Member Functions
static vtkIVExporter *	New ()
static int	IsTypeOf (const char *type)
static vtkIVExporter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkIVExporter ()
	~vtkIVExporter ()
void	WriteData ()
void	WriteALight (vtkLight *aLight, FILE *fp)
void	WriteAnActor (vtkActor *anActor, FILE *fp)
void	WritePointData (vtkPoints *points, vtkDataArray *normals, vtkDataArray *tcoords, vtkUnsignedCharArray *colors, FILE *fp)
Protected Attributes
char *	FileName

---

Member Typedef Documentation

typedef vtkExporter vtkIVExporter::Superclass

Reimplemented from vtkExporter. Definition at line 43 of file vtkIVExporter.h.

---

Constructor & Destructor Documentation

vtkIVExporter::vtkIVExporter (   )  [protected]

vtkIVExporter::~vtkIVExporter (   )  [protected]

---

Member Function Documentation

static vtkIVExporter* vtkIVExporter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkIVExporter::GetClassName (   )  [virtual]

Reimplemented from vtkExporter.

static int vtkIVExporter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkExporter.

virtual int vtkIVExporter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkExporter.

static vtkIVExporter* vtkIVExporter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkExporter.

void vtkIVExporter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkExporter.

virtual void vtkIVExporter::SetFileName (  const char *   )  [virtual]

Specify the name of the OpenInventor file to write.

virtual char* vtkIVExporter::GetFileName (   )  [virtual]

void vtkIVExporter::WriteData (   )  [protected, virtual]

Implements vtkExporter.

void vtkIVExporter::WriteALight (  vtkLight *  aLight, FILE *  fp )  [protected]

void vtkIVExporter::WriteAnActor (  vtkActor *  anActor, FILE *  fp )  [protected]

void vtkIVExporter::WritePointData (  vtkPoints *  points, vtkDataArray *  normals, vtkDataArray *  tcoords, vtkUnsignedCharArray *  colors, FILE *  fp )  [protected]

---

Member Data Documentation

char* vtkIVExporter::FileName [protected]

Definition at line 62 of file vtkIVExporter.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkIVExporter.h

---
