vtkLookupTable Class Reference

#include <vtkLookupTable.h>

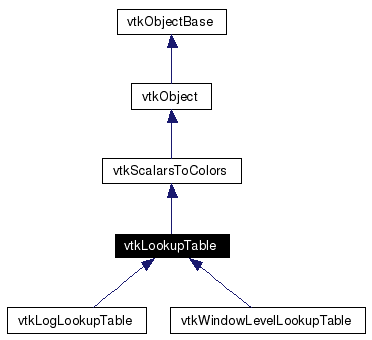

Inheritance diagram for vtkLookupTable:

[legend]Collaboration diagram for vtkLookupTable:

[legend]List of all members.

Detailed Description

map scalar values into colors via a lookup table

vtkLookupTable is an object that is used by mapper objects to map scalar values into rgba (red-green-blue-alpha transparency) color specification, or rgba into scalar values. The color table can be created by direct insertion of color values, or by specifying hue, saturation, value, and alpha range and generating a table.

Warning:: You need to explicitely call Build() when constructing the LUT by hand.

See also:: vtkLogLookupTable vtkWindowLevelLookupTable

Examples:: vtkLookupTable (Examples)

Tests:: vtkLookupTable (Tests)

Definition at line 50 of file vtkLookupTable.h.

Public Types

typedef vtkScalarsToColors Superclass

Public Member Functions

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

int Allocate (int sz=256, int ext=256)

virtual void Build ()

unsigned char * MapValue (double v)

void GetColor (double x, double rgb[3])

double GetOpacity (double v)

void SetTableValue (vtkIdType indx, double rgba[4])

void SetTableValue (vtkIdType indx, double r, double g, double b, double a=1.0)

double * GetTableValue (vtkIdType id)

void DeepCopy (vtkLookupTable *lut)

virtual void ForceBuild ()

virtual void SetRamp (int)

void SetRampToLinear ()

void SetRampToSCurve ()

void SetRampToSQRT ()

virtual int GetRamp ()

void SetScale (int scale)

void SetScaleToLinear ()

void SetScaleToLog10 ()

virtual int GetScale ()

void SetTableRange (double r[2])

virtual void SetTableRange (double min, double max)

virtual double * GetTableRange ()

virtual void GetTableRange (double data[2])

virtual void SetHueRange (double, double)

void SetHueRange (double[2])

virtual double * GetHueRange ()

virtual void GetHueRange (double &, double &)

virtual void GetHueRange (double[2])

virtual void SetSaturationRange (double, double)

void SetSaturationRange (double[2])

virtual double * GetSaturationRange ()

virtual void GetSaturationRange (double &, double &)

virtual void GetSaturationRange (double[2])

virtual void SetValueRange (double, double)

void SetValueRange (double[2])

virtual double * GetValueRange ()

virtual void GetValueRange (double &, double &)

virtual void GetValueRange (double[2])

virtual void SetAlphaRange (double, double)

void SetAlphaRange (double[2])

virtual double * GetAlphaRange ()

virtual void GetAlphaRange (double &, double &)

virtual void GetAlphaRange (double[2])

virtual vtkIdType GetIndex (double v)

void SetNumberOfTableValues (vtkIdType number)

vtkIdType GetNumberOfTableValues ()

void GetTableValue (vtkIdType id, double rgba[4])

unsigned char * GetPointer (const vtkIdType id)

unsigned char * WritePointer (const vtkIdType id, const int number)

double * GetRange ()

void SetRange (double min, double max)

void SetRange (double rng[2])

virtual void SetNumberOfColors (vtkIdType)

virtual vtkIdType GetNumberOfColors ()

void SetTable (vtkUnsignedCharArray *)

virtual vtkUnsignedCharArray * GetTable ()

void MapScalarsThroughTable2 (void *input, unsigned char *output, int inputDataType, int numberOfValues, int inputIncrement, int outputIncrement)

Static Public Member Functions

static vtkLookupTable * New ()

static int IsTypeOf (const char *type)

static vtkLookupTable * SafeDownCast (vtkObject *o)

Protected Member Functions

vtkLookupTable (int sze=256, int ext=256)

~vtkLookupTable ()

Protected Attributes

vtkIdType NumberOfColors

vtkUnsignedCharArray * Table

double TableRange [2]

double HueRange [2]

double SaturationRange [2]

double ValueRange [2]

double AlphaRange [2]

int Scale

int Ramp

vtkTimeStamp InsertTime

vtkTimeStamp BuildTime

double RGBA [4]

Member Typedef Documentation

typedef vtkScalarsToColors vtkLookupTable::Superclass

Reimplemented from vtkScalarsToColors.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.
Definition at line 57 of file vtkLookupTable.h.

Constructor & Destructor Documentation

vtkLookupTable::vtkLookupTable ( int sze = 256,

int ext = 256

) [protected]

vtkLookupTable::~vtkLookupTable ( ) [protected]

Member Function Documentation

static vtkLookupTable* vtkLookupTable::New ( ) [static]

Construct with range=[0,1]; and hsv ranges set up for rainbow color table (from red to blue).
Reimplemented from vtkObject.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

virtual const char* vtkLookupTable::GetClassName ( ) [virtual]

Reimplemented from vtkScalarsToColors.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

static int vtkLookupTable::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkScalarsToColors.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

virtual int vtkLookupTable::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkScalarsToColors.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

static vtkLookupTable* vtkLookupTable::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkScalarsToColors.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

void vtkLookupTable::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkScalarsToColors.
Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

int vtkLookupTable::Allocate ( int sz = 256,

int ext = 256

)

Allocate a color table of specified size.

virtual void vtkLookupTable::Build ( ) [virtual]

Generate lookup table from hue, saturation, value, alpha min/max values. Table is built from linear ramp of each value.
Reimplemented from vtkScalarsToColors.
Reimplemented in vtkWindowLevelLookupTable.

virtual void vtkLookupTable::ForceBuild ( ) [virtual]

Force the lookup table to regenerate from hue, saturation, value, and alpha min/max values. Table is built from a linear ramp of each value. ForceBuild() is useful if a lookup table has been defined manually (using SetTableValue) and then an application decides to rebuild the lookup table using the implicit process.

virtual void vtkLookupTable::SetRamp ( int ) [virtual]

Set the shape of the table ramp to either linear or S-curve. The default is S-curve, which tails off gradually at either end. The equation used for the S-curve is y = (sin((x - 1/2)*pi) + 1)/2, while the equation for the linear ramp is simply y = x. For an S-curve greyscale ramp, you should set NumberOfTableValues to 402 (which is 256*pi/2) to provide room for the tails of the ramp. The equation for the SQRT is y = sqrt(x).

void vtkLookupTable::SetRampToLinear ( ) [inline]

Force the lookup table to regenerate from hue, saturation, value, and alpha min/max values. Table is built from a linear ramp of each value. ForceBuild() is useful if a lookup table has been defined manually (using SetTableValue) and then an application decides to rebuild the lookup table using the implicit process.
Definition at line 83 of file vtkLookupTable.h.
References VTK_RAMP_LINEAR.

void vtkLookupTable::SetRampToSCurve ( ) [inline]

Force the lookup table to regenerate from hue, saturation, value, and alpha min/max values. Table is built from a linear ramp of each value. ForceBuild() is useful if a lookup table has been defined manually (using SetTableValue) and then an application decides to rebuild the lookup table using the implicit process.
Definition at line 84 of file vtkLookupTable.h.
References VTK_RAMP_SCURVE.

void vtkLookupTable::SetRampToSQRT ( ) [inline]

Force the lookup table to regenerate from hue, saturation, value, and alpha min/max values. Table is built from a linear ramp of each value. ForceBuild() is useful if a lookup table has been defined manually (using SetTableValue) and then an application decides to rebuild the lookup table using the implicit process.
Definition at line 85 of file vtkLookupTable.h.
References VTK_RAMP_SQRT.

virtual int vtkLookupTable::GetRamp ( ) [virtual]

Force the lookup table to regenerate from hue, saturation, value, and alpha min/max values. Table is built from a linear ramp of each value. ForceBuild() is useful if a lookup table has been defined manually (using SetTableValue) and then an application decides to rebuild the lookup table using the implicit process.

void vtkLookupTable::SetScale ( int scale )

Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.

void vtkLookupTable::SetScaleToLinear ( ) [inline]

Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.
Definition at line 94 of file vtkLookupTable.h.
References VTK_SCALE_LINEAR.

void vtkLookupTable::SetScaleToLog10 ( ) [inline]

Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.
Definition at line 95 of file vtkLookupTable.h.
References VTK_SCALE_LOG10.

virtual int vtkLookupTable::GetScale ( ) [virtual]

Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.

void vtkLookupTable::SetTableRange ( double r[2] )

Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.
Referenced by vtkWindowLevelLookupTable::SetLevel(), and vtkWindowLevelLookupTable::SetWindow().

virtual void vtkLookupTable::SetTableRange ( double min,

double max

) [virtual]

Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

virtual double* vtkLookupTable::GetTableRange ( ) [virtual]

Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

virtual void vtkLookupTable::GetTableRange ( double data[2] ) [virtual]

Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

virtual void vtkLookupTable::SetHueRange ( double ,

double

) [virtual]

Set the range in hue (using automatic generation). Hue ranges between [0,1].

void vtkLookupTable::SetHueRange ( double [2] )

Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual double* vtkLookupTable::GetHueRange ( ) [virtual]

Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual void vtkLookupTable::GetHueRange ( double & ,

double &

) [virtual]

Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual void vtkLookupTable::GetHueRange ( double [2] ) [virtual]

Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual void vtkLookupTable::SetSaturationRange ( double ,

double

) [virtual]

Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

void vtkLookupTable::SetSaturationRange ( double [2] )

Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual double* vtkLookupTable::GetSaturationRange ( ) [virtual]

Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual void vtkLookupTable::GetSaturationRange ( double & ,

double &

) [virtual]

Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual void vtkLookupTable::GetSaturationRange ( double [2] ) [virtual]

Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual void vtkLookupTable::SetValueRange ( double ,

double

) [virtual]

Set the range in value (using automatic generation). Value ranges between [0,1].

void vtkLookupTable::SetValueRange ( double [2] )

Set the range in value (using automatic generation). Value ranges between [0,1].

virtual double* vtkLookupTable::GetValueRange ( ) [virtual]

Set the range in value (using automatic generation). Value ranges between [0,1].

virtual void vtkLookupTable::GetValueRange ( double & ,

double &

) [virtual]

Set the range in value (using automatic generation). Value ranges between [0,1].

virtual void vtkLookupTable::GetValueRange ( double [2] ) [virtual]

Set the range in value (using automatic generation). Value ranges between [0,1].

virtual void vtkLookupTable::SetAlphaRange ( double ,

double

) [virtual]

Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

void vtkLookupTable::SetAlphaRange ( double [2] )

Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

virtual double* vtkLookupTable::GetAlphaRange ( ) [virtual]

Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

virtual void vtkLookupTable::GetAlphaRange ( double & ,

double &

) [virtual]

Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

virtual void vtkLookupTable::GetAlphaRange ( double [2] ) [virtual]

Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

unsigned char* vtkLookupTable::MapValue ( double v ) [virtual]

Map one value through the lookup table.
Implements vtkScalarsToColors.

void vtkLookupTable::GetColor ( double x,

double rgb[3]

) [virtual]

Map one value through the lookup table and return the color as an RGB array of doubles between 0 and 1.
Implements vtkScalarsToColors.

double vtkLookupTable::GetOpacity ( double v )

Map one value through the lookup table and return the alpha value (the opacity) as a double between 0 and 1.

virtual vtkIdType vtkLookupTable::GetIndex ( double v ) [virtual]

Return the table index associated with a particular value.

void vtkLookupTable::SetNumberOfTableValues ( vtkIdType number )

Specify the number of values (i.e., colors) in the lookup table.

vtkIdType vtkLookupTable::GetNumberOfTableValues ( ) [inline]

Return the table index associated with a particular value.
Definition at line 154 of file vtkLookupTable.h.

void vtkLookupTable::SetTableValue ( vtkIdType indx,

double rgba[4]

)

Directly load color into lookup table. Use [0,1] double values for color component specification. Make sure that you've either used the Build() method or used SetNumberOfTableValues() prior to using this method.

void vtkLookupTable::SetTableValue ( vtkIdType indx,

double r,

double g,

double b,

double a = 1.0

)

Directly load color into lookup table. Use [0,1] double values for color component specification.

double* vtkLookupTable::GetTableValue ( vtkIdType id )

Return a rgba color value for the given index into the lookup table. Color components are expressed as [0,1] double values.

void vtkLookupTable::GetTableValue ( vtkIdType id,

double rgba[4]

)

Return a rgba color value for the given index into the lookup table. Color components are expressed as [0,1] double values.

unsigned char* vtkLookupTable::GetPointer ( const vtkIdType id ) [inline]

Get pointer to color table data. Format is array of unsigned char r-g-b-a-r-g-b-a...
Definition at line 178 of file vtkLookupTable.h.

unsigned char * vtkLookupTable::WritePointer ( const vtkIdType id,

const int number

) [inline]

Get pointer to data. Useful for direct writes into object. MaxId is bumped by number (and memory allocated if necessary). Id is the location you wish to write into; number is the number of rgba values to write.
Definition at line 246 of file vtkLookupTable.h.
References InsertTime, vtkTimeStamp::Modified(), Table, and vtkUnsignedCharArray::WritePointer().

double* vtkLookupTable::GetRange ( ) [inline, virtual]

Sets/Gets the range of scalars which will be mapped. This is a duplicate of Get/SetTableRange.
Implements vtkScalarsToColors.
Definition at line 191 of file vtkLookupTable.h.

void vtkLookupTable::SetRange ( double min,

double max

) [inline, virtual]

Get pointer to data. Useful for direct writes into object. MaxId is bumped by number (and memory allocated if necessary). Id is the location you wish to write into; number is the number of rgba values to write.
Implements vtkScalarsToColors.
Definition at line 192 of file vtkLookupTable.h.

void vtkLookupTable::SetRange ( double rng[2] ) [inline]

Get pointer to data. Useful for direct writes into object. MaxId is bumped by number (and memory allocated if necessary). Id is the location you wish to write into; number is the number of rgba values to write.
Reimplemented from vtkScalarsToColors.
Definition at line 193 of file vtkLookupTable.h.
References vtkScalarsToColors::SetRange().

virtual void vtkLookupTable::SetNumberOfColors ( vtkIdType ) [virtual]

Set the number of colors in the lookup table. Use SetNumberOfTableValues() instead, it can be used both before and after the table has been built whereas SetNumberOfColors() has no effect after the table has been built.

virtual vtkIdType vtkLookupTable::GetNumberOfColors ( ) [virtual]

Set the number of colors in the lookup table. Use SetNumberOfTableValues() instead, it can be used both before and after the table has been built whereas SetNumberOfColors() has no effect after the table has been built.

void vtkLookupTable::SetTable ( vtkUnsignedCharArray * )

Set/Get the internal table array that is used to map the scalars to colors. The table array is an unsigned char array with 4 components representing RGBA.

virtual vtkUnsignedCharArray* vtkLookupTable::GetTable ( ) [virtual]

Set/Get the internal table array that is used to map the scalars to colors. The table array is an unsigned char array with 4 components representing RGBA.

void vtkLookupTable::MapScalarsThroughTable2 ( void * input,

unsigned char * output,

int inputDataType,

int numberOfValues,

int inputIncrement,

int outputIncrement

) [virtual]

map a set of scalars through the lookup table
Implements vtkScalarsToColors.

void vtkLookupTable::DeepCopy ( vtkLookupTable * lut )

Copy the contents from another LookupTable

Member Data Documentation

vtkIdType vtkLookupTable::NumberOfColors [protected]

Definition at line 227 of file vtkLookupTable.h.

vtkUnsignedCharArray* vtkLookupTable::Table [protected]

Definition at line 228 of file vtkLookupTable.h.
Referenced by WritePointer().

double vtkLookupTable::TableRange[2] [protected]

Definition at line 229 of file vtkLookupTable.h.

double vtkLookupTable::HueRange[2] [protected]

Definition at line 230 of file vtkLookupTable.h.

double vtkLookupTable::SaturationRange[2] [protected]

Definition at line 231 of file vtkLookupTable.h.

double vtkLookupTable::ValueRange[2] [protected]

Definition at line 232 of file vtkLookupTable.h.

double vtkLookupTable::AlphaRange[2] [protected]

Definition at line 233 of file vtkLookupTable.h.

int vtkLookupTable::Scale [protected]

Definition at line 234 of file vtkLookupTable.h.

int vtkLookupTable::Ramp [protected]

Definition at line 235 of file vtkLookupTable.h.

vtkTimeStamp vtkLookupTable::InsertTime [protected]

Definition at line 236 of file vtkLookupTable.h.
Referenced by WritePointer().

vtkTimeStamp vtkLookupTable::BuildTime [protected]

Definition at line 237 of file vtkLookupTable.h.

double vtkLookupTable::RGBA[4] [protected]

Definition at line 238 of file vtkLookupTable.h.

The documentation for this class was generated from the following file:

dox/Common/vtkLookupTable.h

Generated on Mon Jan 21 23:59:29 2008 for VTK by

1.4.3-20050530


Public Types
typedef vtkScalarsToColors	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	Allocate (int sz=256, int ext=256)
virtual void	Build ()
unsigned char *	MapValue (double v)
void	GetColor (double x, double rgb[3])
double	GetOpacity (double v)
void	SetTableValue (vtkIdType indx, double rgba[4])
void	SetTableValue (vtkIdType indx, double r, double g, double b, double a=1.0)
double *	GetTableValue (vtkIdType id)
void	DeepCopy (vtkLookupTable *lut)

virtual void	ForceBuild ()
virtual void	SetRamp (int)
void	SetRampToLinear ()
void	SetRampToSCurve ()
void	SetRampToSQRT ()
virtual int	GetRamp ()

void	SetScale (int scale)
void	SetScaleToLinear ()
void	SetScaleToLog10 ()
virtual int	GetScale ()

void	SetTableRange (double r[2])
virtual void	SetTableRange (double min, double max)
virtual double *	GetTableRange ()
virtual void	GetTableRange (double data[2])

virtual void	SetHueRange (double, double)
void	SetHueRange (double[2])
virtual double *	GetHueRange ()
virtual void	GetHueRange (double &, double &)
virtual void	GetHueRange (double[2])

virtual void	SetSaturationRange (double, double)
void	SetSaturationRange (double[2])
virtual double *	GetSaturationRange ()
virtual void	GetSaturationRange (double &, double &)
virtual void	GetSaturationRange (double[2])

virtual void	SetValueRange (double, double)
void	SetValueRange (double[2])
virtual double *	GetValueRange ()
virtual void	GetValueRange (double &, double &)
virtual void	GetValueRange (double[2])

virtual void	SetAlphaRange (double, double)
void	SetAlphaRange (double[2])
virtual double *	GetAlphaRange ()
virtual void	GetAlphaRange (double &, double &)
virtual void	GetAlphaRange (double[2])

virtual vtkIdType	GetIndex (double v)
void	SetNumberOfTableValues (vtkIdType number)
vtkIdType	GetNumberOfTableValues ()

void	GetTableValue (vtkIdType id, double rgba[4])
unsigned char *	GetPointer (const vtkIdType id)

unsigned char *	WritePointer (const vtkIdType id, const int number)
double *	GetRange ()
void	SetRange (double min, double max)
void	SetRange (double rng[2])

virtual void	SetNumberOfColors (vtkIdType)
virtual vtkIdType	GetNumberOfColors ()

void	SetTable (vtkUnsignedCharArray *)
virtual vtkUnsignedCharArray *	GetTable ()

void	MapScalarsThroughTable2 (void input, unsigned char output, int inputDataType, int numberOfValues, int inputIncrement, int outputIncrement)
Static Public Member Functions
static vtkLookupTable *	New ()
static int	IsTypeOf (const char *type)
static vtkLookupTable *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkLookupTable (int sze=256, int ext=256)
	~vtkLookupTable ()
Protected Attributes
vtkIdType	NumberOfColors
vtkUnsignedCharArray *	Table
double	TableRange [2]
double	HueRange [2]
double	SaturationRange [2]
double	ValueRange [2]
double	AlphaRange [2]
int	Scale
int	Ramp
vtkTimeStamp	InsertTime
vtkTimeStamp	BuildTime
double	RGBA [4]
