vtkMatrixToLinearTransform Class Reference

#include <vtkMatrixToLinearTransform.h>

Inheritance diagram for vtkMatrixToLinearTransform:

Inheritance graph

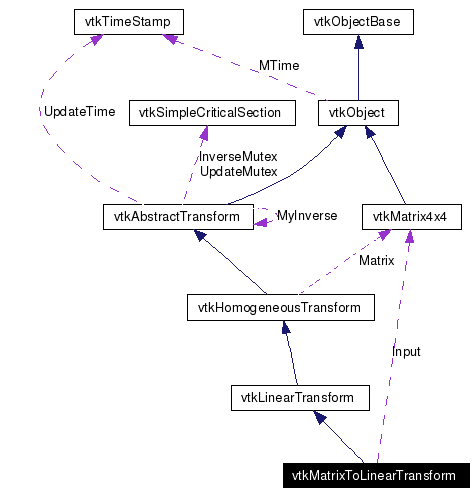

Collaboration diagram for vtkMatrixToLinearTransform:

Collaboration graph
List of all members.

Detailed Description

convert a matrix to a transform

This is a very simple class which allows a vtkMatrix4x4 to be used in place of a vtkLinearTransform or vtkAbstractTransform. For example, if you use it as a proxy between a matrix and vtkTransformPolyDataFilter then any modifications to the matrix will automatically be reflected in the output of the filter.

See also:
vtkTransform vtkMatrix4x4 vtkMatrixToHomogeneousTransform
vtkMatrixToLinearTransform (Tests)

Definition at line 38 of file vtkMatrixToLinearTransform.h.

Public Types

typedef vtkLinearTransform Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void Inverse ()
unsigned long GetMTime ()
vtkAbstractTransformMakeTransform ()
void SetMatrix (vtkMatrix4x4 *matrix)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetInput (vtkMatrix4x4 *)
virtual vtkMatrix4x4GetInput ()

Static Public Member Functions

static vtkMatrixToLinearTransformNew ()
static int IsTypeOf (const char *type)
static vtkMatrixToLinearTransformSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkMatrixToLinearTransform ()
 ~vtkMatrixToLinearTransform ()
void InternalUpdate ()
void InternalDeepCopy (vtkAbstractTransform *transform)

Protected Attributes

int InverseFlag

Member Typedef Documentation

typedef vtkLinearTransform vtkMatrixToLinearTransform::Superclass

Reimplemented from vtkLinearTransform.

Definition at line 42 of file vtkMatrixToLinearTransform.h.

Constructor & Destructor Documentation

vtkMatrixToLinearTransform::vtkMatrixToLinearTransform  )  [protected]

vtkMatrixToLinearTransform::~vtkMatrixToLinearTransform  )  [protected]

Member Function Documentation

static vtkMatrixToLinearTransform* vtkMatrixToLinearTransform::New  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkMatrixToLinearTransform::GetClassName  )  [virtual]

Reimplemented from vtkLinearTransform.

static int vtkMatrixToLinearTransform::IsTypeOf const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkLinearTransform.

virtual int vtkMatrixToLinearTransform::IsA const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkLinearTransform.

static vtkMatrixToLinearTransform* vtkMatrixToLinearTransform::SafeDownCast vtkObject o  )  [static]

Reimplemented from vtkLinearTransform.

void vtkMatrixToLinearTransform::PrintSelf ostream &  os,
vtkIndent  indent

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLinearTransform.

virtual void vtkMatrixToLinearTransform::SetInput vtkMatrix4x4  )  [virtual]

Set the input matrix. Any modifications to the matrix will be reflected in the transformation.

virtual vtkMatrix4x4* vtkMatrixToLinearTransform::GetInput  )  [virtual]

void vtkMatrixToLinearTransform::Inverse  )  [virtual]

The input matrix is left as-is, but the transformation matrix is inverted.

Implements vtkAbstractTransform.

unsigned long vtkMatrixToLinearTransform::GetMTime  )  [virtual]

Get the MTime: this is the bit of magic that makes everything work.

Reimplemented from vtkAbstractTransform.

vtkAbstractTransform* vtkMatrixToLinearTransform::MakeTransform  )  [virtual]

Make a new transform of the same type.

Implements vtkAbstractTransform.

void vtkMatrixToLinearTransform::SetMatrix vtkMatrix4x4 matrix  )

This method is deprecated.

void vtkMatrixToLinearTransform::InternalUpdate  )  [protected, virtual]

Perform any subclass-specific Update.

Reimplemented from vtkAbstractTransform.

void vtkMatrixToLinearTransform::InternalDeepCopy vtkAbstractTransform transform  )  [protected, virtual]

Perform any subclass-specific DeepCopy.

Reimplemented from vtkHomogeneousTransform.

Member Data Documentation

int vtkMatrixToLinearTransform::InverseFlag [protected]

Definition at line 72 of file vtkMatrixToLinearTransform.h.

vtkMatrix4x4* vtkMatrixToLinearTransform::Input [protected]

Definition at line 73 of file vtkMatrixToLinearTransform.h.

The documentation for this class was generated from the following file:
