vtkMedicalImageReader2 Class Reference

#include <vtkMedicalImageReader2.h>

Inheritance diagram for vtkMedicalImageReader2:

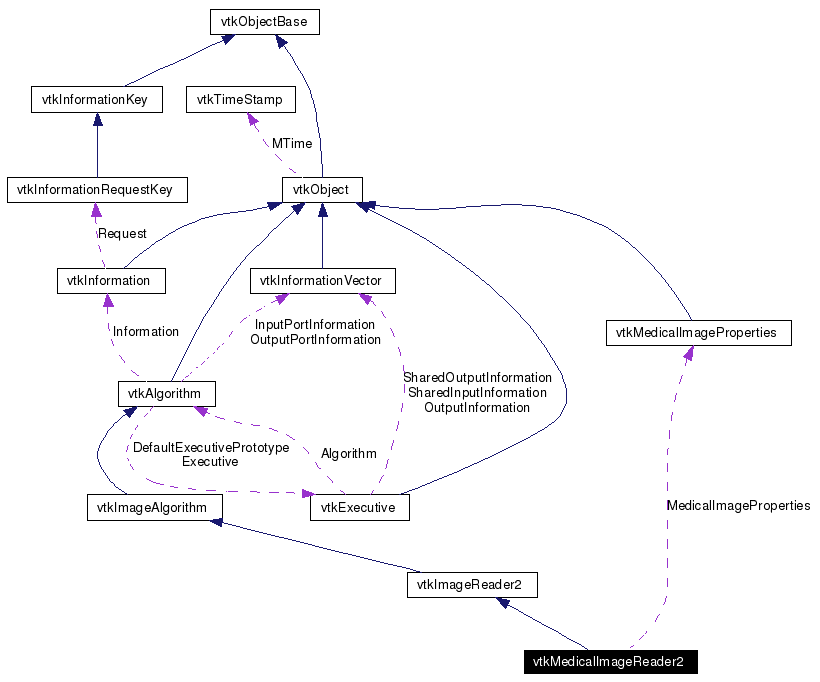

[legend]Collaboration diagram for vtkMedicalImageReader2:

[legend]List of all members.

---

Detailed Description

vtkImageReader2 with medical meta data.

vtkMedicalImageReader2 is a parent class for medical image readers. It provides a place to store patient information that may be stored in the image header.

See also:

vtkImageReader2 vtkGESignaReader vtkMedicalImageProperties

Definition at line 32 of file vtkMedicalImageReader2.h.

Public Types
typedef vtkImageReader2	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkMedicalImageProperties *	GetMedicalImageProperties ()
virtual void	SetPatientName (const char *)
virtual const char *	GetPatientName ()
virtual void	SetPatientID (const char *)
virtual const char *	GetPatientID ()
virtual void	SetDate (const char *)
virtual const char *	GetDate ()
virtual void	SetSeries (const char *)
virtual const char *	GetSeries ()
virtual void	SetStudy (const char *)
virtual const char *	GetStudy ()
virtual void	SetImageNumber (const char *)
virtual const char *	GetImageNumber ()
virtual void	SetModality (const char *)
virtual const char *	GetModality ()
Static Public Member Functions
static vtkMedicalImageReader2 *	New ()
static int	IsTypeOf (const char *type)
static vtkMedicalImageReader2 *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMedicalImageReader2 ()
	~vtkMedicalImageReader2 ()
Protected Attributes
vtkMedicalImageProperties *	MedicalImageProperties

---

Member Typedef Documentation

typedef vtkImageReader2 vtkMedicalImageReader2::Superclass

Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader. Definition at line 36 of file vtkMedicalImageReader2.h.

---

Constructor & Destructor Documentation

vtkMedicalImageReader2::vtkMedicalImageReader2 (   )  [protected]

vtkMedicalImageReader2::~vtkMedicalImageReader2 (   )  [protected]

---

Member Function Documentation

static vtkMedicalImageReader2* vtkMedicalImageReader2::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader.

virtual const char* vtkMedicalImageReader2::GetClassName (   )  [virtual]

Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader.

static int vtkMedicalImageReader2::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader.

virtual int vtkMedicalImageReader2::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader.

static vtkMedicalImageReader2* vtkMedicalImageReader2::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader.

void vtkMedicalImageReader2::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageReader2. Reimplemented in vtkGESignaReader.

virtual vtkMedicalImageProperties* vtkMedicalImageReader2::GetMedicalImageProperties (   )  [virtual]

Get the medical image properties object

virtual void vtkMedicalImageReader2::SetPatientName (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetPatientName (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual void vtkMedicalImageReader2::SetPatientID (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetPatientID (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual void vtkMedicalImageReader2::SetDate (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetDate (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual void vtkMedicalImageReader2::SetSeries (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetSeries (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual void vtkMedicalImageReader2::SetStudy (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetStudy (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual void vtkMedicalImageReader2::SetImageNumber (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetImageNumber (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual void vtkMedicalImageReader2::SetModality (  const char *   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

virtual const char* vtkMedicalImageReader2::GetModality (   )  [virtual]

For backward compatibility, propagate calls to the MedicalImageProperties object.

---

Member Data Documentation

vtkMedicalImageProperties* vtkMedicalImageReader2::MedicalImageProperties [protected]

Medical Image properties Definition at line 68 of file vtkMedicalImageReader2.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkMedicalImageReader2.h

---
