vtkOpenGLExtensionManager Class Reference

#include <vtkOpenGLExtensionManager.h>

Inheritance diagram for vtkOpenGLExtensionManager:

Inheritance graph
[legend]

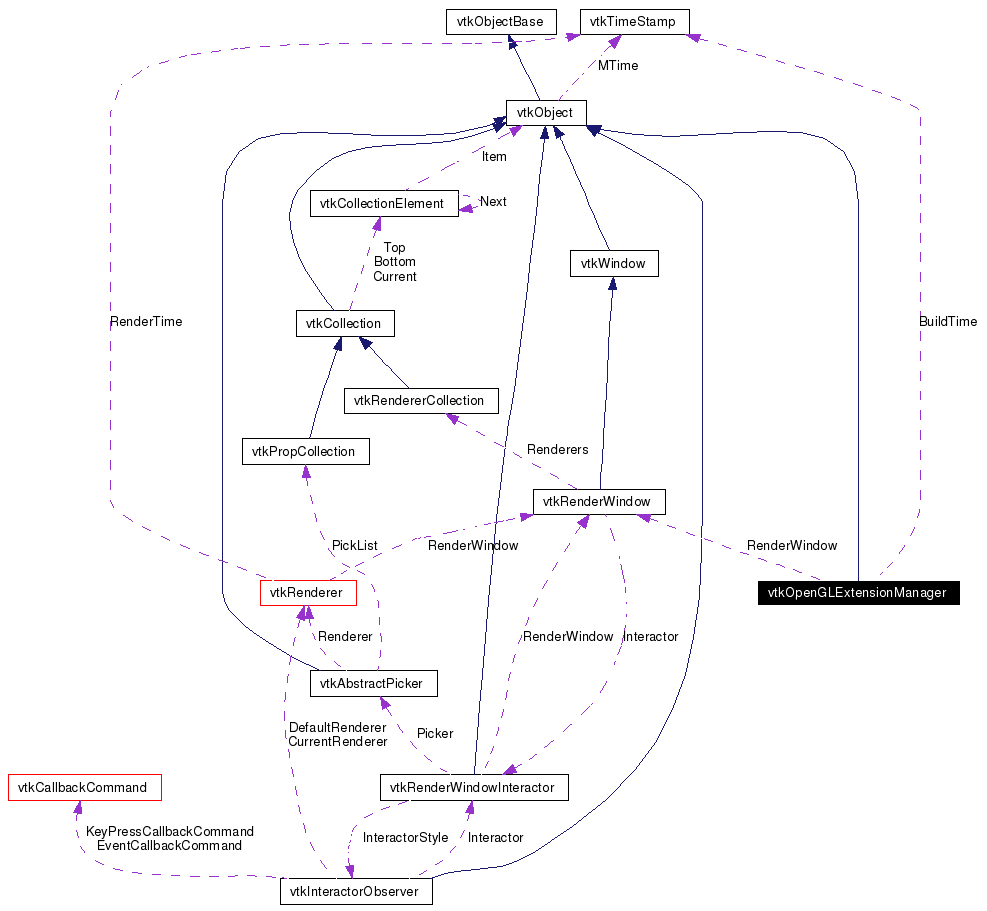

Collaboration diagram for vtkOpenGLExtensionManager:

Collaboration graph
[legend]
List of all members.

Detailed Description

Interface class for querying and using OpenGL extensions.

vtkOpenGLExtensionManager acts as an interface to OpenGL extensions. It provides methods to query OpenGL extensions on the current or a given render window and to load extension function pointers. Currently does not support GLU extensions since the GLU library is not linked to VTK.

Before using vtkOpenGLExtensionManager, an OpenGL context must be created. This is generally done with a vtkRenderWindow. Note that simply creating the vtkRenderWindow is not sufficient. Usually you have to call Render before the actual OpenGL context is created. You can specify the RenderWindow with the SetRenderWindow method.

 vtkOpenGLExtensionManager *extensions = vtkOpenGLExtensionManager::New();
 extensions->SetRenderWindow(renwin);
If no vtkRenderWindow is specified, the current OpenGL context (if any) is used.

Generally speaking, when using OpenGL extensions, you will need an vtkOpenGLExtensionManager and the prototypes defined in vtkgl.h.

 #include "vtkOpenGLExtensionManager.h"
 #include "vtkgl.h"
The vtkgl.h include file contains all the constants and function pointers required for using OpenGL extensions in a portable and namespace safe way. vtkgl.h is built from parsed glext.h, glxext.h, and wglext.h files. Snapshots of these files are distributed with VTK, but you can also set CMake options to use other files.

To use an OpenGL extension, you first need to make an instance of vtkOpenGLExtensionManager and give it a vtkRenderWindow. You can then query the vtkOpenGLExtensionManager to see if the extension is supported with the ExtensionSupported method. Valid names for extensions are given in the OpenGL extension registry at http://www.opengl.org/registry/ . You can also grep vtkgl.h (which will be in the binary build directory if VTK is not installed) for appropriate names. There are also special extensions GL_VERSION_X_X (where X_X is replaced with a major and minor version, respectively) which contain all the constants and functions for OpenGL versions for which the gl.h header file is of an older version than the driver.

 if (   !extensions->ExtensionSupported("GL_VERSION_1_2")
     || !extensions->ExtensionSupported("GL_ARB_multitexture") ) {
   {
   vtkErrorMacro("Required extensions not supported!");
   }

Once you have verified that the extensions you want exist, before you use them you have to load them with the LoadExtension method.

 extensions->LoadExtension("GL_VERSION_1_2");
 extensions->LoadExtension("GL_ARB_multitexture");

Alternatively, you can use the LoadSupportedExtension method, which checks whether the requested extension is supported and, if so, loads it. The LoadSupportedExtension method will not raise any errors or warnings if it fails, so it is important for callers to pay attention to the return value.

 if (   extensions->LoadSupportedExtension("GL_VERSION_1_2")
     && extensions->LoadSupportedExtension("GL_ARB_multitexture") ) {
   {
   vtkgl::ActiveTexture(vtkgl::TEXTURE0_ARB);
   }
 else
   {
   vtkErrorMacro("Required extensions could not be loaded!");
   }

Once you have queried and loaded all of the extensions you need, you can delete the vtkOpenGLExtensionManager. To use a constant of an extension, simply replace the "GL_" prefix with "vtkgl::". Likewise, replace the "gl" prefix of functions with "vtkgl::". In rare cases, an extension will add a type. In this case, add vtkgl:: to the type (i.e. vtkgl::GLchar).

 extensions->Delete();
 ...
 vtkgl::ActiveTexture(vtkgl::TEXTURE0_ARB);

For wgl extensions, replace the "WGL_" and "wgl" prefixes with "vtkwgl::". For glX extensions, replace the "GLX_" and "glX" prefixes with "vtkglX::".

Tests:
vtkOpenGLExtensionManager (Tests)

Definition at line 144 of file vtkOpenGLExtensionManager.h.

Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void LoadExtension (const char *name)
virtual int LoadSupportedExtension (const char *name)
virtual void LoadCorePromotedExtension (const char *name)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkRenderWindowGetRenderWindow ()
virtual void SetRenderWindow (vtkRenderWindow *renwin)
virtual void Update ()
virtual char * GetExtensionsString ()
virtual int ExtensionSupported (const char *name)
virtual vtkOpenGLExtensionManagerFunctionPointer GetProcAddress (const char *fname)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkOpenGLExtensionManagerSafeDownCast (vtkObject *o)
static vtkOpenGLExtensionManagerNew ()

Protected Member Functions

 vtkOpenGLExtensionManager ()
virtual ~vtkOpenGLExtensionManager ()
virtual void ReadOpenGLExtensions ()
virtual int SafeLoadExtension (const char *name)

Protected Attributes

vtkRenderWindowRenderWindow
char * ExtensionsString
vtkTimeStamp BuildTime


Member Typedef Documentation

typedef vtkObject vtkOpenGLExtensionManager::Superclass


Reimplemented from vtkObject.

Definition at line 147 of file vtkOpenGLExtensionManager.h.


Constructor & Destructor Documentation

vtkOpenGLExtensionManager::vtkOpenGLExtensionManager  )  [protected]


virtual vtkOpenGLExtensionManager::~vtkOpenGLExtensionManager  )  [protected, virtual]



Member Function Documentation

virtual const char* vtkOpenGLExtensionManager::GetClassName  )  [virtual]


Reimplemented from vtkObject.

static int vtkOpenGLExtensionManager::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkOpenGLExtensionManager::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkOpenGLExtensionManager* vtkOpenGLExtensionManager::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkObject.

static vtkOpenGLExtensionManager* vtkOpenGLExtensionManager::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

void vtkOpenGLExtensionManager::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual vtkRenderWindow* vtkOpenGLExtensionManager::GetRenderWindow  )  [virtual]


Set/Get the render window to query extensions on. If set to null, justs queries the current render window.

virtual void vtkOpenGLExtensionManager::SetRenderWindow vtkRenderWindow renwin  )  [virtual]


virtual void vtkOpenGLExtensionManager::Update  )  [virtual]


Updates the extensions string.

virtual char* vtkOpenGLExtensionManager::GetExtensionsString  )  [virtual]


Returns a string listing all available extensions. Call Update first to validate this string.

virtual int vtkOpenGLExtensionManager::ExtensionSupported const char *  name  )  [virtual]


Returns true if the extension is supported, false otherwise.

virtual vtkOpenGLExtensionManagerFunctionPointer vtkOpenGLExtensionManager::GetProcAddress const char *  fname  )  [virtual]


Returns a function pointer to the OpenGL extension function with the given name. Returns NULL if the function could not be retrieved.

virtual void vtkOpenGLExtensionManager::LoadExtension const char *  name  )  [virtual]


Loads all the functions associated with the given extension into the appropriate static members of vtkgl. This method emits a warning if the requested extension is not supported. It emits an error if the extension does not load successfully.

virtual int vtkOpenGLExtensionManager::LoadSupportedExtension const char *  name  )  [virtual]


Returns true if the extension is supported and loaded successfully, false otherwise. This method will "fail silently/gracefully" if the extension is not supported or does not load properly. It emits neither warnings nor errors. It is up to the caller to determine if the extension loaded properly by paying attention to the return value.

virtual void vtkOpenGLExtensionManager::LoadCorePromotedExtension const char *  name  )  [virtual]


Loads all the functions associated with the given core-promoted extension into the appropriate static members of vtkgl associated with the OpenGL version that promoted the extension as a core feature. This method emits a warning if the requested extension is not supported. It emits an error if the extension does not load successfully. For instance, extension GL_ARB_multitexture was promoted as a core feature into OpenGL 1.3. An implementation that uses this feature has to (IN THIS ORDER), check if OpenGL 1.3 is supported with ExtensionSupported("GL_VERSION_1_3"), if true, load the extension with LoadExtension("GL_VERSION_1_3"). If false, test for the extension with ExtensionSupported("GL_ARB_multitexture"),if true load the extension with this method LoadCorePromotedExtension("GL_ARB_multitexture"). If any of those loading stage succeeded, use vtgl::ActiveTexture() in any case, NOT vtgl::ActiveTextureARB(). This method avoids the use of if statements everywhere in implementations using core-promoted extensions. Without this method, the implementation code should look like:

 int
      opengl_1_3=extensions->ExtensionSupported("GL_VERSION_1_3");
      if(opengl_1_3) { extensions->LoadExtension("GL_VERSION_1_3"); } else
      { if(extensions->ExtensionSupported("GL_ARB_multitexture")) {
      extensions->LoadCorePromotedExtension("GL_ARB_multitexture"); } else
      { vtkErrorMacro("Required multitexture feature is not supported!"); }
      } ... if(opengl_1_3) { vtkgl::ActiveTexture(vtkgl::TEXTURE0) } else {
      vtkgl::ActiveTextureARB(vtkgl::TEXTURE0_ARB) }
Thanks to this method, the code looks like:
 int
      opengl_1_3=extensions->ExtensionSupported("GL_VERSION_1_3");
      if(opengl_1_3) { extensions->LoadExtension("GL_VERSION_1_3"); } else
      { if(extensions->ExtensionSupported("GL_ARB_multitexture")) {
      extensions->LoadCorePromotedExtension("GL_ARB_multitexture"); } else
      { vtkErrorMacro("Required multitexture feature is not supported!"); }
      } ... vtkgl::ActiveTexture(vtkgl::TEXTURE0);

virtual void vtkOpenGLExtensionManager::ReadOpenGLExtensions  )  [protected, virtual]


virtual int vtkOpenGLExtensionManager::SafeLoadExtension const char *  name  )  [protected, virtual]


Wrap around the generated vtkgl::LoadExtension to deal with OpenGL 1.2 and its optional part GL_ARB_imaging. Also functions like glBlendEquation() or glBlendColor() are optional in OpenGL 1.2 or 1.3 and provided by the GL_ARB_imaging but there are core features in OpenGL 1.4.


Member Data Documentation

vtkRenderWindow* vtkOpenGLExtensionManager::RenderWindow [protected]


Definition at line 231 of file vtkOpenGLExtensionManager.h.

char* vtkOpenGLExtensionManager::ExtensionsString [protected]


Definition at line 233 of file vtkOpenGLExtensionManager.h.

vtkTimeStamp vtkOpenGLExtensionManager::BuildTime [protected]


Definition at line 235 of file vtkOpenGLExtensionManager.h.


The documentation for this class was generated from the following file:
