vtkOutlineFilter Class Reference

#include <vtkOutlineFilter.h>

Inheritance diagram for vtkOutlineFilter:

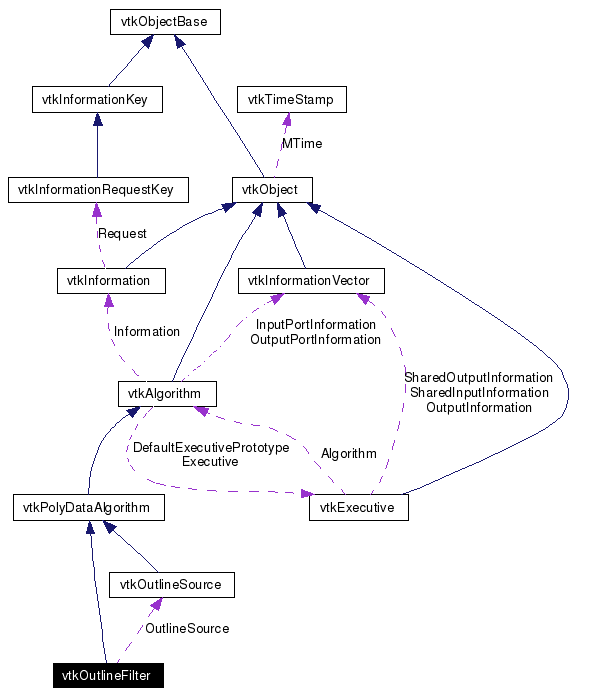

[legend]Collaboration diagram for vtkOutlineFilter:

[legend]List of all members.

---

Detailed Description

create wireframe outline for arbitrary data set

vtkOutlineFilter is a filter that generates a wireframe outline of any data set. The outline consists of the twelve edges of the dataset bounding box.

Examples:

vtkOutlineFilter (Examples)

Tests:

vtkOutlineFilter (Tests)

Definition at line 36 of file vtkOutlineFilter.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
Static Public Member Functions
static vtkOutlineFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkOutlineFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOutlineFilter ()
	~vtkOutlineFilter ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
vtkOutlineSource *	OutlineSource

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkOutlineFilter::Superclass

Reimplemented from vtkPolyDataAlgorithm. Definition at line 40 of file vtkOutlineFilter.h.

---

Constructor & Destructor Documentation

vtkOutlineFilter::vtkOutlineFilter (   )  [protected]

vtkOutlineFilter::~vtkOutlineFilter (   )  [protected]

---

Member Function Documentation

static vtkOutlineFilter* vtkOutlineFilter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkOutlineFilter::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkOutlineFilter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkOutlineFilter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

static vtkOutlineFilter* vtkOutlineFilter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkOutlineFilter::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkOutlineFilter::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkPolyDataAlgorithm.

---

Member Data Documentation

vtkOutlineSource* vtkOutlineFilter::OutlineSource [protected]

Definition at line 46 of file vtkOutlineFilter.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkOutlineFilter.h

---
