vtkParametricFunctionSource Class Reference

#include <vtkParametricFunctionSource.h>

Inheritance diagram for vtkParametricFunctionSource:

Inheritance graph
[legend]

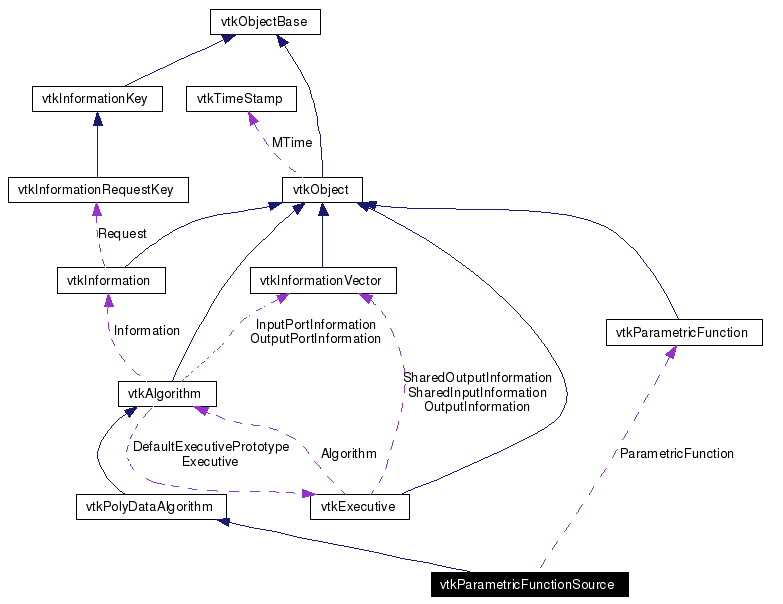

Collaboration diagram for vtkParametricFunctionSource:

Collaboration graph
[legend]
List of all members.

Detailed Description

tessellate parametric functions

This class tessellates parametric functions. The user must specify how many points in the parametric coordinate directions are required (i.e., the resolution), and the mode to use to generate scalars.

Thanks:
Andrew Maclean a.maclean@cas.edu.au for creating and contributing the class.
See also:
vtkParametricFunction

Implementation of parametrics for 1D lines: vtkParametricSpline

Subclasses of vtkParametricFunction implementing non-orentable surfaces: vtkParametricBoy vtkParametricCrossCap vtkParametricFigure8Klein vtkParametricKlein vtkParametricMobius vtkParametricRoman

Subclasses of vtkParametricFunction implementing orientable surfaces: vtkParametricConicSpiral vtkParametricDini vtkParametricEllipsoid vtkParametricEnneper vtkParametricRandomHills vtkParametricSuperEllipsoid vtkParametricSuperToroid vtkParametricTorus

Tests:
vtkParametricFunctionSource (Tests)

Definition at line 57 of file vtkParametricFunctionSource.h.
virtual void SetParametricFunction (vtkParametricFunction *)
virtual vtkParametricFunction * GetParametricFunction ()
static vtkParametricFunctionSource * New ()

Public Types

typedef vtkPolyDataAlgorithm Superclass
enum  SCALAR_MODE {
  SCALAR_NONE = 0, SCALAR_U, SCALAR_V, SCALAR_U0,
  SCALAR_V0, SCALAR_U0V0, SCALAR_MODULUS, SCALAR_PHASE,
  SCALAR_QUADRANT, SCALAR_X, SCALAR_Y, SCALAR_Z,
  SCALAR_DISTANCE, SCALAR_FUNCTION_DEFINED
}

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
virtual void SetUResolution (int)
virtual int GetUResolution ()
virtual void SetVResolution (int)
virtual int GetVResolution ()
virtual void SetWResolution (int)
virtual int GetWResolution ()
virtual void GenerateTextureCoordinatesOn ()
virtual void GenerateTextureCoordinatesOff ()
virtual void SetGenerateTextureCoordinates (int)
virtual int GetGenerateTextureCoordinates ()
virtual void SetScalarMode (int)
virtual int GetScalarMode ()
void SetScalarModeToNone (void)
void SetScalarModeToU (void)
void SetScalarModeToV (void)
void SetScalarModeToU0 (void)
void SetScalarModeToV0 (void)
void SetScalarModeToU0V0 (void)
void SetScalarModeToModulus (void)
void SetScalarModeToPhase (void)
void SetScalarModeToQuadrant (void)
void SetScalarModeToX (void)
void SetScalarModeToY (void)
void SetScalarModeToZ (void)
void SetScalarModeToDistance (void)
void SetScalarModeToFunctionDefined (void)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkParametricFunctionSource * SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkParametricFunctionSource ()
virtual ~vtkParametricFunctionSource ()
int RequestData (vtkInformation *info, vtkInformationVector **input, vtkInformationVector *output)

Protected Attributes

vtkParametricFunction * ParametricFunction
int UResolution
int VResolution
int WResolution
int GenerateTextureCoordinates
int ScalarMode

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkParametricFunctionSource::Superclass


Reimplemented from vtkPolyDataAlgorithm.

Definition at line 60 of file vtkParametricFunctionSource.h.

Member Enumeration Documentation

enum vtkParametricFunctionSource::SCALAR_MODE


Enumerate the supported scalar generation modes.

 SCALAR_NONE,
      (default) scalars are not generated. SCALAR_U, the scalar is set to
      the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0,
      the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise.
      SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0
      otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v
      == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS,
      the scalar is set to (sqrt(u*u+v*v)), this is measured relative to
      (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in
      degrees, 0 to 360), this is measured relative to (u_avg,v_avg).
      SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the
      quadrant of the point (u,v). SCALAR_X, the scalar is set to the
      x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the
      scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to
      (sqrt(x*x+y*y+z*z)). I.e. distance from the origin.
      SCALAR_USER_DEFINED, the scalar is set to the value returned from
      EvaluateScalar().
Enumerator:
SCALAR_NONE
SCALAR_U
SCALAR_V
SCALAR_U0
SCALAR_V0
SCALAR_U0V0
SCALAR_MODULUS
SCALAR_PHASE
SCALAR_QUADRANT
SCALAR_X
SCALAR_Y
SCALAR_Z
SCALAR_DISTANCE
SCALAR_FUNCTION_DEFINED

Definition at line 126 of file vtkParametricFunctionSource.h.

Constructor & Destructor Documentation

vtkParametricFunctionSource::vtkParametricFunctionSource (   )  [protected]


virtual vtkParametricFunctionSource::~vtkParametricFunctionSource (   )  [protected, virtual]


Member Function Documentation

virtual const char* vtkParametricFunctionSource::GetClassName (   )  [virtual]


Reimplemented from vtkPolyDataAlgorithm.

static int vtkParametricFunctionSource::IsTypeOf (  const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkParametricFunctionSource::IsA (  const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkParametricFunctionSource* vtkParametricFunctionSource::SafeDownCast (  vtkObject *  o  )  [static]


Reimplemented from vtkPolyDataAlgorithm.

void vtkParametricFunctionSource::PrintSelf (  ostream &  os,
vtkIndent  indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkParametricFunctionSource* vtkParametricFunctionSource::New (   )  [static]


Create a new instance with (50,50,50) points in the (u-v-w) directions.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkParametricFunctionSource::SetParametricFunction (  vtkParametricFunction *   )  [virtual]


Specify the parametric function to use to generate the tessellation.

virtual vtkParametricFunction* vtkParametricFunctionSource::GetParametricFunction (   )  [virtual]


Specify the parametric function to use to generate the tessellation.

virtual void vtkParametricFunctionSource::SetUResolution (  int   )  [virtual]


Set/Get the number of subdivisions / tessellations in the u parametric direction. Note that the number of tessellant points in the u direction is the UResolution + 1.

virtual int vtkParametricFunctionSource::GetUResolution (   )  [virtual]


Set/Get the number of subdivisions / tessellations in the u parametric direction. Note that the number of tessellant points in the u direction is the UResolution + 1.

virtual void vtkParametricFunctionSource::SetVResolution (  int   )  [virtual]


Set/Get the number of subdivisions / tessellations in the v parametric direction. Note that the number of tessellant points in the v direction is the VResolution + 1.

virtual int vtkParametricFunctionSource::GetVResolution (   )  [virtual]


Set/Get the number of subdivisions / tessellations in the v parametric direction. Note that the number of tessellant points in the v direction is the VResolution + 1.

virtual void vtkParametricFunctionSource::SetWResolution (  int   )  [virtual]


Set/Get the number of subdivisions / tessellations in the w parametric direction. Note that the number of tessellant points in the w direction is the WResolution + 1.

virtual int vtkParametricFunctionSource::GetWResolution (   )  [virtual]


Set/Get the number of subdivisions / tessellations in the w parametric direction. Note that the number of tessellant points in the w direction is the WResolution + 1.

virtual void vtkParametricFunctionSource::GenerateTextureCoordinatesOn (   )  [virtual]


Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual void vtkParametricFunctionSource::GenerateTextureCoordinatesOff (   )  [virtual]


Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual void vtkParametricFunctionSource::SetGenerateTextureCoordinates (  int   )  [virtual]


Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual int vtkParametricFunctionSource::GetGenerateTextureCoordinates (   )  [virtual]


Set/Get the generation of texture coordinates. This is off by default. Note that this is only applicable to parametric surfaces whose parametric dimension is 2. Note that texturing may fail in some cases.

virtual void vtkParametricFunctionSource::SetScalarMode (  int   )  [virtual]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

virtual int vtkParametricFunctionSource::GetScalarMode (   )  [virtual]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

void vtkParametricFunctionSource::SetScalarModeToNone (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 155 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToU (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 156 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToV (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 157 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToU0 (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 158 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToV0 (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 159 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToU0V0 (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 160 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToModulus (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 161 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToPhase (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 162 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToQuadrant (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 163 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToX (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 164 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToY (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 165 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToZ (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 166 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToDistance (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 167 of file vtkParametricFunctionSource.h.

void vtkParametricFunctionSource::SetScalarModeToFunctionDefined (  void   )  [inline]


Get/Set the mode used for the scalar data. The options are: SCALAR_NONE, (default) scalars are not generated. SCALAR_U, the scalar is set to the u-value. SCALAR_V, the scalar is set to the v-value. SCALAR_U0, the scalar is set to 1 if u = (u_max - u_min)/2 = u_avg, 0 otherwise. SCALAR_V0, the scalar is set to 1 if v = (v_max - v_min)/2 = v_avg, 0 otherwise. SCALAR_U0V0, the scalar is set to 1 if u == u_avg, 2 if v == v_avg, 3 if u = u_avg && v = v_avg, 0 otherwise. SCALAR_MODULUS, the scalar is set to (sqrt(u*u+v*v)), this is measured relative to (u_avg,v_avg). SCALAR_PHASE, the scalar is set to (atan2(v,u)) (in degrees, 0 to 360), this is measured relative to (u_avg,v_avg). SCALAR_QUADRANT, the scalar is set to 1, 2, 3 or 4 depending upon the quadrant of the point (u,v). SCALAR_X, the scalar is set to the x-value. SCALAR_Y, the scalar is set to the y-value. SCALAR_Z, the scalar is set to the z-value. SCALAR_DISTANCE, the scalar is set to (sqrt(x*x+y*y+z*z)). I.e. distance from the origin. SCALAR_FUNCTION_DEFINED, the scalar is set to the value returned from EvaluateScalar().

Definition at line 168 of file vtkParametricFunctionSource.h.

unsigned long vtkParametricFunctionSource::GetMTime (   )  [virtual]


Return the MTime also considering the parametric function.

Reimplemented from vtkObject.

int vtkParametricFunctionSource::RequestData (  vtkInformation *  info,
vtkInformationVector **  input,
vtkInformationVector *  output
)  [protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

Member Data Documentation

vtkParametricFunction* vtkParametricFunctionSource::ParametricFunction [protected]


Definition at line 183 of file vtkParametricFunctionSource.h.

int vtkParametricFunctionSource::UResolution [protected]


Definition at line 185 of file vtkParametricFunctionSource.h.

int vtkParametricFunctionSource::VResolution [protected]


Definition at line 186 of file vtkParametricFunctionSource.h.

int vtkParametricFunctionSource::WResolution [protected]


Definition at line 187 of file vtkParametricFunctionSource.h.

int vtkParametricFunctionSource::GenerateTextureCoordinates [protected]


Definition at line 188 of file vtkParametricFunctionSource.h.

int vtkParametricFunctionSource::ScalarMode [protected]


Definition at line 189 of file vtkParametricFunctionSource.h.

The documentation for this class was generated from the following file:
Generated on Tue Jan 22 00:05:48 2008 for VTK by  doxygen 1.4.3-20050530
