vtkPLYWriter Class Reference

#include <vtkPLYWriter.h>

Inheritance diagram for vtkPLYWriter:

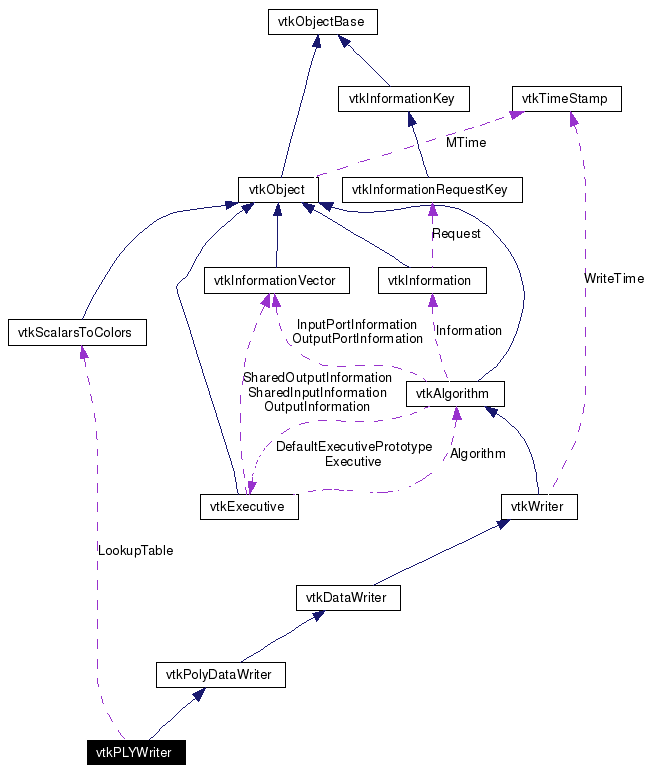

[legend]Collaboration diagram for vtkPLYWriter:

[legend]List of all members.

---

Detailed Description

write Stanford PLY file format

vtkPLYWriter writes polygonal data in Stanford University PLY format (see http://graphics.stanford.edu/data/3Dscanrep/). The data can be written in either binary (little or big endian) or ASCII representation.

Warning:

PLY does not handle big endian versus little endian correctly. Also, this class is compiled into VTK only if the PLY library is found during the make process (using CMake).

See also:

vtkPLYReader

Tests:

vtkPLYWriter (Tests)

Definition at line 52 of file vtkPLYWriter.h.

Public Types
typedef vtkPolyDataWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetDataByteOrder (int)
virtual int	GetDataByteOrder ()
void	SetDataByteOrderToBigEndian ()
void	SetDataByteOrderToLittleEndian ()
virtual void	SetColorMode (int)
virtual int	GetColorMode ()
void	SetColorModeToDefault ()
void	SetColorModeToUniformCellColor ()
void	SetColorModeToUniformPointColor ()
void	SetColorModeToUniformColor ()
void	SetColorModeToOff ()
virtual void	SetArrayName (const char *)
virtual char *	GetArrayName ()
virtual void	SetComponent (int)
virtual int	GetComponent ()
virtual void	SetLookupTable (vtkScalarsToColors *)
virtual vtkScalarsToColors *	GetLookupTable ()
virtual void	SetColor (unsigned char, unsigned char, unsigned char)
virtual void	SetColor (unsigned char[3])
virtual unsigned char *	GetColor ()
virtual void	GetColor (unsigned char &, unsigned char &, unsigned char &)
virtual void	GetColor (unsigned char[3])
Static Public Member Functions
static vtkPLYWriter *	New ()
static int	IsTypeOf (const char *type)
static vtkPLYWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPLYWriter ()
	~vtkPLYWriter ()
void	WriteData ()
unsigned char *	GetColors (vtkIdType num, vtkDataSetAttributes *dsa)
Protected Attributes
int	DataByteOrder
char *	ArrayName
int	Component
int	ColorMode
vtkScalarsToColors *	LookupTable
unsigned char	Color [3]

---

Member Typedef Documentation

typedef vtkPolyDataWriter vtkPLYWriter::Superclass

Reimplemented from vtkPolyDataWriter. Definition at line 56 of file vtkPLYWriter.h.

---

Constructor & Destructor Documentation

vtkPLYWriter::vtkPLYWriter (   )  [protected]

vtkPLYWriter::~vtkPLYWriter (   )  [protected]

---

Member Function Documentation

static vtkPLYWriter* vtkPLYWriter::New (   )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkPolyDataWriter.

virtual const char* vtkPLYWriter::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataWriter.

static int vtkPLYWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataWriter.

virtual int vtkPLYWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataWriter.

static vtkPLYWriter* vtkPLYWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataWriter.

void vtkPLYWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataWriter.

virtual void vtkPLYWriter::SetDataByteOrder (  int   )  [virtual]

If the file type is binary, then the user can specify which byte order to use (little versus big endian).

virtual int vtkPLYWriter::GetDataByteOrder (   )  [virtual]

void vtkPLYWriter::SetDataByteOrderToBigEndian (   )  [inline]

Definition at line 64 of file vtkPLYWriter.h. References VTK_BIG_ENDIAN.

void vtkPLYWriter::SetDataByteOrderToLittleEndian (   )  [inline]

Definition at line 66 of file vtkPLYWriter.h. References VTK_LITTLE_ENDIAN.

virtual void vtkPLYWriter::SetColorMode (  int   )  [virtual]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

virtual int vtkPLYWriter::GetColorMode (   )  [virtual]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

void vtkPLYWriter::SetColorModeToDefault (   )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.) Definition at line 86 of file vtkPLYWriter.h. References VTK_COLOR_MODE_DEFAULT.

void vtkPLYWriter::SetColorModeToUniformCellColor (   )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.) Definition at line 88 of file vtkPLYWriter.h. References VTK_COLOR_MODE_UNIFORM_CELL_COLOR.

void vtkPLYWriter::SetColorModeToUniformPointColor (   )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.) Definition at line 90 of file vtkPLYWriter.h. References VTK_COLOR_MODE_UNIFORM_POINT_COLOR.

void vtkPLYWriter::SetColorModeToUniformColor (   )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.) Definition at line 92 of file vtkPLYWriter.h. References VTK_COLOR_MODE_UNIFORM_COLOR.

void vtkPLYWriter::SetColorModeToOff (   )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.) Definition at line 94 of file vtkPLYWriter.h. References VTK_COLOR_MODE_OFF.

virtual void vtkPLYWriter::SetArrayName (  const char *   )  [virtual]

Specify the array name to use to color the data.

virtual char* vtkPLYWriter::GetArrayName (   )  [virtual]

Specify the array name to use to color the data.

virtual void vtkPLYWriter::SetComponent (  int   )  [virtual]

Specify the array component to use to color the data.

virtual int vtkPLYWriter::GetComponent (   )  [virtual]

Specify the array component to use to color the data.

virtual void vtkPLYWriter::SetLookupTable (  vtkScalarsToColors *   )  [virtual]

A lookup table can be specified in order to convert data arrays to RGBA colors.

virtual vtkScalarsToColors* vtkPLYWriter::GetLookupTable (   )  [virtual]

A lookup table can be specified in order to convert data arrays to RGBA colors.

virtual void vtkPLYWriter::SetColor (  unsigned  char, unsigned  char, unsigned  char )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::SetColor (  unsigned  char[3]  )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual unsigned char* vtkPLYWriter::GetColor (   )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::GetColor (  unsigned char &  , unsigned char &  , unsigned char &  )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::GetColor (  unsigned  char[3]  )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

void vtkPLYWriter::WriteData (   )  [protected, virtual]

Reimplemented from vtkPolyDataWriter.

unsigned char* vtkPLYWriter::GetColors (  vtkIdType  num, vtkDataSetAttributes *  dsa )  [protected]

---

Member Data Documentation

int vtkPLYWriter::DataByteOrder [protected]

Definition at line 133 of file vtkPLYWriter.h.

char* vtkPLYWriter::ArrayName [protected]

Definition at line 134 of file vtkPLYWriter.h.

int vtkPLYWriter::Component [protected]

Definition at line 135 of file vtkPLYWriter.h.

int vtkPLYWriter::ColorMode [protected]

Definition at line 136 of file vtkPLYWriter.h.

vtkScalarsToColors* vtkPLYWriter::LookupTable [protected]

Definition at line 137 of file vtkPLYWriter.h.

unsigned char vtkPLYWriter::Color[3] [protected]

Definition at line 138 of file vtkPLYWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkPLYWriter.h

---
