vtkPolyDataToImageStencil Class Reference

#include <vtkPolyDataToImageStencil.h>

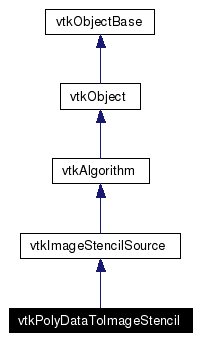

Inheritance diagram for vtkPolyDataToImageStencil:

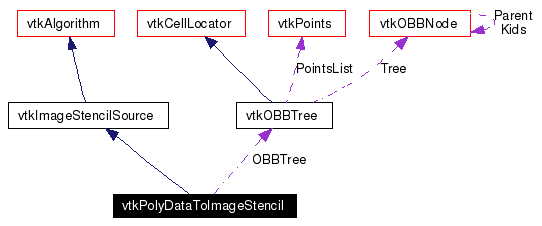

[legend]Collaboration diagram for vtkPolyDataToImageStencil:

[legend]List of all members.

---

Detailed Description

clip an image with polydata

vtkPolyDataToImageStencil will convert a vtkPolyData into an image that can be used with vtkImageStencil or other vtk classes that apply a stencil to an image.

See also:

vtkPolyData vtkImageStencil vtkImplicitFunctionToImageStencil

Examples:

vtkPolyDataToImageStencil (Examples)

Tests:

vtkPolyDataToImageStencil (Tests)

Definition at line 40 of file vtkPolyDataToImageStencil.h.

Public Types
typedef vtkImageStencilSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInput (vtkPolyData *input)
vtkPolyData *	GetInput ()
virtual void	SetTolerance (double)
virtual double	GetTolerance ()
Static Public Member Functions
static vtkPolyDataToImageStencil *	New ()
static int	IsTypeOf (const char *type)
static vtkPolyDataToImageStencil *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkPolyDataToImageStencil ()
	~vtkPolyDataToImageStencil ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void	ReportReferences (vtkGarbageCollector *)
virtual int	FillInputPortInformation (int, vtkInformation *)
Protected Attributes
double	Tolerance
vtkOBBTree *	OBBTree

---

Member Typedef Documentation

typedef vtkImageStencilSource vtkPolyDataToImageStencil::Superclass

Reimplemented from vtkImageStencilSource. Definition at line 44 of file vtkPolyDataToImageStencil.h.

---

Constructor & Destructor Documentation

vtkPolyDataToImageStencil::vtkPolyDataToImageStencil (   )  [protected]

vtkPolyDataToImageStencil::~vtkPolyDataToImageStencil (   )  [protected]

---

Member Function Documentation

static vtkPolyDataToImageStencil* vtkPolyDataToImageStencil::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkImageStencilSource.

virtual const char* vtkPolyDataToImageStencil::GetClassName (   )  [virtual]

Reimplemented from vtkImageStencilSource.

static int vtkPolyDataToImageStencil::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageStencilSource.

virtual int vtkPolyDataToImageStencil::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageStencilSource.

static vtkPolyDataToImageStencil* vtkPolyDataToImageStencil::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImageStencilSource.

void vtkPolyDataToImageStencil::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageStencilSource.

void vtkPolyDataToImageStencil::SetInput (  vtkPolyData *  input  )

Specify the polydata to convert into a stencil.

vtkPolyData* vtkPolyDataToImageStencil::GetInput (   )

virtual void vtkPolyDataToImageStencil::SetTolerance (  double   )  [virtual]

Set the tolerance for doing spatial searches of the polydata.

virtual double vtkPolyDataToImageStencil::GetTolerance (   )  [virtual]

Set the tolerance for doing spatial searches of the polydata.

virtual int vtkPolyDataToImageStencil::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

Reimplemented from vtkImageStencilSource.

virtual int vtkPolyDataToImageStencil::RequestInformation (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

Reimplemented from vtkImageStencilSource.

virtual void vtkPolyDataToImageStencil::ReportReferences (  vtkGarbageCollector *   )  [protected, virtual]

Reimplemented from vtkAlgorithm.

virtual int vtkPolyDataToImageStencil::FillInputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm.

---

Member Data Documentation

double vtkPolyDataToImageStencil::Tolerance [protected]

Definition at line 66 of file vtkPolyDataToImageStencil.h.

vtkOBBTree* vtkPolyDataToImageStencil::OBBTree [protected]

Definition at line 67 of file vtkPolyDataToImageStencil.h.

---

The documentation for this class was generated from the following file:

• dox/Hybrid/vtkPolyDataToImageStencil.h

---
