vtkQuadricClustering Class Reference

#include <vtkQuadricClustering.h>

Inheritance diagram for vtkQuadricClustering:

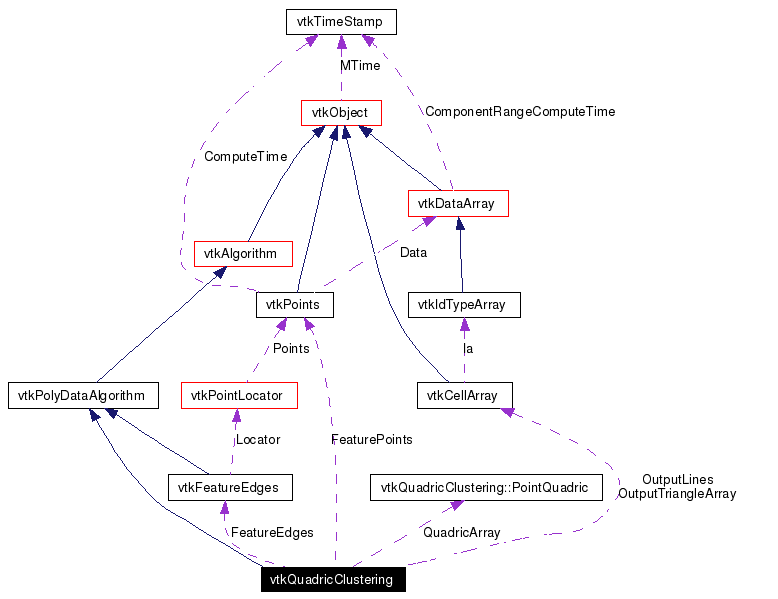

[legend]Collaboration diagram for vtkQuadricClustering:

[legend]List of all members.

---

Detailed Description

reduce the number of triangles in a mesh

vtkQuadricClustering is a filter to reduce the number of triangles in a triangle mesh, forming a good approximation to the original geometry. The input to vtkQuadricClustering is a vtkPolyData object, and all types of polygonal data are handled.

The algorithm used is the one described by Peter Lindstrom in his Siggraph 2000 paper, "Out-of-Core Simplification of Large Polygonal Models." The general approach of the algorithm is to cluster vertices in a uniform binning of space, accumulating the quadric of each triangle (pushed out to the triangles vertices) within each bin, and then determining an optimal position for a single vertex in a bin by using the accumulated quadric. In more detail, the algorithm first gets the bounds of the input poly data. It then breaks this bounding volume into a user-specified number of spatial bins. It then reads each triangle from the input and hashes its vertices into these bins. (If this is the first time a bin has been visited, initialize its quadric to the 0 matrix.) The algorithm computes the error quadric for this triangle and adds it to the existing quadric of the bin in which each vertex is contained. Then, if 2 or more vertices of the triangle fall in the same bin, the triangle is dicarded. If the triangle is not discarded, it adds the triangle to the list of output triangles as a list of vertex identifiers. (There is one vertex id per bin.) After all the triangles have been read, the representative vertex for each bin is computed (an optimal location is found) using the quadric for that bin. This determines the spatial location of the vertices of each of the triangles in the output.

To use this filter, specify the divisions defining the spatial subdivision in the x, y, and z directions. You must also specify an input vtkPolyData. Then choose to either 1) use the original points that minimize the quadric error to produce the output triangles or 2) compute an optimal position in each bin to produce the output triangles (recommended and default behavior).

This filter can take multiple inputs. To do this, the user must explicity call StartAppend, Append (once for each input), and EndAppend. StartAppend sets up the data structure to hold the quadric matrices. Append processes each triangle in the input poly data it was called on, hashes its vertices to the appropriate bins, determines whether to keep this triangle, and updates the appropriate quadric matrices. EndAppend determines the spatial location of each of the representative vertices for the visited bins. While this approach does not fit into the visualization architecture and requires manual control, it has the advantage that extremely large data can be processed in pieces and appended to the filter piece-by-piece.

Warning:

This filter can drastically affect topology, i.e., topology is not preserved.

The filter handles input triangle strips and arbitrary polygons. Arbitrary polygons are assumed convex: during insertion they are triangulated using a fan of triangles from the first point in the polygons. If the polygon is concave, this can produce bad results. In this case, use vtkTriangleFilter to triangulate the polygons first.

See also:

vtkQuadricDecimation vtkDecimatePro vtkDecimate

Tests:

vtkQuadricClustering (Tests)

Definition at line 88 of file vtkQuadricClustering.h.

void	SetNumberOfXDivisions (int num)
void	SetNumberOfYDivisions (int num)
void	SetNumberOfZDivisions (int num)
virtual int	GetNumberOfXDivisions ()
virtual int	GetNumberOfYDivisions ()
virtual int	GetNumberOfZDivisions ()
void	SetNumberOfDivisions (int div[3])
void	SetNumberOfDivisions (int div0, int div1, int div2)
int *	GetNumberOfDivisions ()
void	GetNumberOfDivisions (int div[3])
static vtkQuadricClustering *	New ()
void	FindFeaturePoints (vtkCellArray *edges, vtkPoints *edgePts, double angle)
void	EndAppendUsingPoints (vtkPolyData *input, vtkPolyData *output)
int	UseInputPoints
Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetAutoAdjustNumberOfDivisions (int)
virtual int	GetAutoAdjustNumberOfDivisions ()
virtual void	AutoAdjustNumberOfDivisionsOn ()
virtual void	AutoAdjustNumberOfDivisionsOff ()
void	SetDivisionOrigin (double x, double y, double z)
void	SetDivisionOrigin (double o[3])
virtual double *	GetDivisionOrigin ()
virtual void	GetDivisionOrigin (double &, double &, double &)
virtual void	GetDivisionOrigin (double[3])
void	SetDivisionSpacing (double x, double y, double z)
void	SetDivisionSpacing (double s[3])
virtual double *	GetDivisionSpacing ()
virtual void	GetDivisionSpacing (double &, double &, double &)
virtual void	GetDivisionSpacing (double[3])
virtual void	SetUseInputPoints (int)
virtual int	GetUseInputPoints ()
virtual void	UseInputPointsOn ()
virtual void	UseInputPointsOff ()
virtual void	SetUseFeatureEdges (int)
virtual int	GetUseFeatureEdges ()
virtual void	UseFeatureEdgesOn ()
virtual void	UseFeatureEdgesOff ()
vtkFeatureEdges *	GetFeatureEdges ()
virtual void	SetUseFeaturePoints (int)
virtual int	GetUseFeaturePoints ()
virtual void	UseFeaturePointsOn ()
virtual void	UseFeaturePointsOff ()
virtual void	SetFeaturePointsAngle (double)
virtual double	GetFeaturePointsAngle ()
virtual void	SetUseInternalTriangles (int)
virtual int	GetUseInternalTriangles ()
virtual void	UseInternalTrianglesOn ()
virtual void	UseInternalTrianglesOff ()
void	StartAppend (double *bounds)
void	StartAppend (double x0, double x1, double y0, double y1, double z0, double z1)
void	Append (vtkPolyData *piece)
void	EndAppend ()
virtual void	SetCopyCellData (int)
virtual int	GetCopyCellData ()
virtual void	CopyCellDataOn ()
virtual void	CopyCellDataOff ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkQuadricClustering *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQuadricClustering ()
	~vtkQuadricClustering ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int	FillInputPortInformation (int, vtkInformation *)
void	InitializeQuadric (double quadric[9])
void	AddQuadric (vtkIdType binId, double quadric[9])
void	EndAppendVertexGeometry (vtkPolyData *input, vtkPolyData *output)
void	AppendFeatureQuadrics (vtkPolyData *pd, vtkPolyData *output)
vtkIdType	HashPoint (double point[3])
void	ComputeRepresentativePoint (double quadric[9], vtkIdType binId, double point[3])
void	AddPolygons (vtkCellArray *polys, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void	AddStrips (vtkCellArray *strips, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void	AddTriangle (vtkIdType *binIds, double *pt0, double *pt1, double *pt2, int geometeryFlag, vtkPolyData *input, vtkPolyData *output)
void	AddEdges (vtkCellArray *edges, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void	AddEdge (vtkIdType *binIds, double *pt0, double *pt1, int geometeryFlag, vtkPolyData *input, vtkPolyData *output)
void	AddVertices (vtkCellArray *verts, vtkPoints *points, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
void	AddVertex (vtkIdType binId, double *pt, int geometryFlag, vtkPolyData *input, vtkPolyData *output)
Protected Attributes
int	UseFeatureEdges
int	UseFeaturePoints
int	UseInternalTriangles
int	NumberOfXDivisions
int	NumberOfYDivisions
int	NumberOfZDivisions
int	NumberOfDivisions [3]
int	ComputeNumberOfDivisions
double	DivisionOrigin [3]
double	DivisionSpacing [3]
int	AutoAdjustNumberOfDivisions
double	Bounds [6]
double	XBinSize
double	YBinSize
double	ZBinSize
vtkIdType	SliceSize
PointQuadric *	QuadricArray
vtkIdType	NumberOfBinsUsed
vtkCellArray *	OutputTriangleArray
vtkCellArray *	OutputLines
vtkFeatureEdges *	FeatureEdges
vtkPoints *	FeaturePoints
double	FeaturePointsAngle
int	CopyCellData
int	InCellCount
int	OutCellCount
Classes
struct	PointQuadric

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkQuadricClustering::Superclass

Reimplemented from vtkPolyDataAlgorithm. Definition at line 91 of file vtkQuadricClustering.h.

---

Constructor & Destructor Documentation

vtkQuadricClustering::vtkQuadricClustering (   )  [protected]

vtkQuadricClustering::~vtkQuadricClustering (   )  [protected]

---

Member Function Documentation

virtual const char* vtkQuadricClustering::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkQuadricClustering::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkQuadricClustering::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

static vtkQuadricClustering* vtkQuadricClustering::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkQuadricClustering::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataAlgorithm.

static vtkQuadricClustering* vtkQuadricClustering::New (   )  [static]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled. Reimplemented from vtkPolyDataAlgorithm.

void vtkQuadricClustering::SetNumberOfXDivisions (  int  num  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::SetNumberOfYDivisions (  int  num  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::SetNumberOfZDivisions (  int  num  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual int vtkQuadricClustering::GetNumberOfXDivisions (   )  [virtual]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual int vtkQuadricClustering::GetNumberOfYDivisions (   )  [virtual]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual int vtkQuadricClustering::GetNumberOfZDivisions (   )  [virtual]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::SetNumberOfDivisions (  int  div[3]  )  [inline]

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled. Definition at line 107 of file vtkQuadricClustering.h.

void vtkQuadricClustering::SetNumberOfDivisions (  int  div0, int  div1, int  div2 )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

int* vtkQuadricClustering::GetNumberOfDivisions (   )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

void vtkQuadricClustering::GetNumberOfDivisions (  int  div[3]  )

Set/Get the number of divisions along each axis for the spatial bins. The number of spatial bins is NumberOfXDivisions*NumberOfYDivisions* NumberOfZDivisions. The filter may choose to ignore large numbers of divisions if the input has few points and AutoAdjustNumberOfDivisions is enabled.

virtual void vtkQuadricClustering::SetAutoAdjustNumberOfDivisions (  int   )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

virtual int vtkQuadricClustering::GetAutoAdjustNumberOfDivisions (   )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

virtual void vtkQuadricClustering::AutoAdjustNumberOfDivisionsOn (   )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

virtual void vtkQuadricClustering::AutoAdjustNumberOfDivisionsOff (   )  [virtual]

Enable automatic adjustment of number of divisions. If off, the number of divisions specified by the user is always used (as long as it is valid).

void vtkQuadricClustering::SetDivisionOrigin (  double  x, double  y, double  z )

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

void vtkQuadricClustering::SetDivisionOrigin (  double  o[3]  )  [inline]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning. Definition at line 129 of file vtkQuadricClustering.h.

virtual double* vtkQuadricClustering::GetDivisionOrigin (   )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionOrigin (  double &  , double &  , double &  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionOrigin (  double  [3]  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

void vtkQuadricClustering::SetDivisionSpacing (  double  x, double  y, double  z )

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

void vtkQuadricClustering::SetDivisionSpacing (  double  s[3]  )  [inline]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning. Definition at line 133 of file vtkQuadricClustering.h.

virtual double* vtkQuadricClustering::GetDivisionSpacing (   )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionSpacing (  double &  , double &  , double &  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::GetDivisionSpacing (  double  [3]  )  [virtual]

This is an alternative way to set up the bins. If you are trying to match boundaries between pieces, then you should use these methods rather than SetNumberOfDivisions. To use these methods, specify the origin and spacing of the spatial binning.

virtual void vtkQuadricClustering::SetUseInputPoints (  int   )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual int vtkQuadricClustering::GetUseInputPoints (   )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual void vtkQuadricClustering::UseInputPointsOn (   )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual void vtkQuadricClustering::UseInputPointsOff (   )  [virtual]

Normally the point that minimizes the quadric error function is used as the output of the bin. When this flag is on, the bin point is forced to be one of the points from the input (the one with the smallest error). This option does not work (i.e., input points cannot be used) when the append methods (StartAppend(), Append(), EndAppend()) are being called directly.

virtual void vtkQuadricClustering::SetUseFeatureEdges (  int   )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

virtual int vtkQuadricClustering::GetUseFeatureEdges (   )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

virtual void vtkQuadricClustering::UseFeatureEdgesOn (   )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

virtual void vtkQuadricClustering::UseFeatureEdgesOff (   )  [virtual]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges".

vtkFeatureEdges* vtkQuadricClustering::GetFeatureEdges (   )  [inline]

By default, this flag is off. When "UseFeatureEdges" is on, then quadrics are computed for boundary edges/feature edges. They influence the quadrics (position of points), but not the mesh. Which features to use can be controlled by the filter "FeatureEdges". Definition at line 158 of file vtkQuadricClustering.h.

virtual void vtkQuadricClustering::SetUseFeaturePoints (  int   )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual int vtkQuadricClustering::GetUseFeaturePoints (   )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual void vtkQuadricClustering::UseFeaturePointsOn (   )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual void vtkQuadricClustering::UseFeaturePointsOff (   )  [virtual]

By default, this flag is off. It only has an effect when "UseFeatureEdges" is also on. When "UseFeaturePoints" is on, then quadrics are computed for boundary / feature points used in the boundary / feature edges. They influence the quadrics (position of points), but not the mesh.

virtual void vtkQuadricClustering::SetFeaturePointsAngle (  double   )  [virtual]

Set/Get the angle to use in determining whether a point on a boundary / feature edge is a feature point.

virtual double vtkQuadricClustering::GetFeaturePointsAngle (   )  [virtual]

Set/Get the angle to use in determining whether a point on a boundary / feature edge is a feature point.

virtual void vtkQuadricClustering::SetUseInternalTriangles (  int   )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

virtual int vtkQuadricClustering::GetUseInternalTriangles (   )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

virtual void vtkQuadricClustering::UseInternalTrianglesOn (   )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

virtual void vtkQuadricClustering::UseInternalTrianglesOff (   )  [virtual]

When this flag is on (and it is on by default), then triangles that are completely contained in a bin are added to the bin quadrics. When the the flag is off the filter operates faster, but the surface may not be as well behaved.

void vtkQuadricClustering::StartAppend (  double *  bounds  )

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

void vtkQuadricClustering::StartAppend (  double  x0, double  x1, double  y0, double  y1, double  z0, double  z1 )  [inline]

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method. Definition at line 195 of file vtkQuadricClustering.h.

void vtkQuadricClustering::Append (  vtkPolyData *  piece  )

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

void vtkQuadricClustering::EndAppend (   )

These methods provide an alternative way of executing the filter. PolyData can be added to the result in pieces (append). In this mode, the user must specify the bounds of the entire model as an argument to the "StartAppend" method.

virtual void vtkQuadricClustering::SetCopyCellData (  int   )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual int vtkQuadricClustering::GetCopyCellData (   )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual void vtkQuadricClustering::CopyCellDataOn (   )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

virtual void vtkQuadricClustering::CopyCellDataOff (   )  [virtual]

This flag makes the filter copy cell data from input to output (the best it can). It uses input cells that trigger the addition of output cells (no averaging). This is off by default, and does not work when append is being called explicitely (non-pipeline usage).

int vtkQuadricClustering::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

int vtkQuadricClustering::FillInputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkPolyDataAlgorithm.

vtkIdType vtkQuadricClustering::HashPoint (  double  point[3]  )  [protected]

Given a point, determine what bin it falls into.

void vtkQuadricClustering::ComputeRepresentativePoint (  double  quadric[9], vtkIdType  binId, double  point[3] )  [protected]

Determine the representative point for this bin.

void vtkQuadricClustering::AddPolygons (  vtkCellArray *  polys, vtkPoints *  points, int  geometryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add triangles to the quadric array. If geometry flag is on then triangles are added to the output.

void vtkQuadricClustering::AddStrips (  vtkCellArray *  strips, vtkPoints *  points, int  geometryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add triangles to the quadric array. If geometry flag is on then triangles are added to the output.

void vtkQuadricClustering::AddTriangle (  vtkIdType *  binIds, double *  pt0, double *  pt1, double *  pt2, int  geometeryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add triangles to the quadric array. If geometry flag is on then triangles are added to the output.

void vtkQuadricClustering::AddEdges (  vtkCellArray *  edges, vtkPoints *  points, int  geometryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add edges to the quadric array. If geometry flag is on then edges are added to the output.

void vtkQuadricClustering::AddEdge (  vtkIdType *  binIds, double *  pt0, double *  pt1, int  geometeryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add edges to the quadric array. If geometry flag is on then edges are added to the output.

void vtkQuadricClustering::AddVertices (  vtkCellArray *  verts, vtkPoints *  points, int  geometryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add vertices to the quadric array. If geometry flag is on then vertices are added to the output.

void vtkQuadricClustering::AddVertex (  vtkIdType  binId, double *  pt, int  geometryFlag, vtkPolyData *  input, vtkPolyData *  output )  [protected]

Add vertices to the quadric array. If geometry flag is on then vertices are added to the output.

void vtkQuadricClustering::InitializeQuadric (  double  quadric[9]  )  [protected]

Initialize the quadric matrix to 0's.

void vtkQuadricClustering::AddQuadric (  vtkIdType  binId, double  quadric[9] )  [protected]

Add this quadric to the quadric already associated with this bin.

void vtkQuadricClustering::FindFeaturePoints (  vtkCellArray *  edges, vtkPoints *  edgePts, double  angle )  [protected]

Find the feature points of a given set of edges. The points returned are (1) those used by only one edge, (2) those used by > 2 edges, and (3) those where the angle between 2 edges using this point is < angle.

void vtkQuadricClustering::EndAppendUsingPoints (  vtkPolyData *  input, vtkPolyData *  output )  [protected]

This method will rep[lace the quadric generated points with the input points with the lowest error.

void vtkQuadricClustering::EndAppendVertexGeometry (  vtkPolyData *  input, vtkPolyData *  output )  [protected]

This method sets the verticies of the output. It duplicates the structure of the input cells (but decimiated).

void vtkQuadricClustering::AppendFeatureQuadrics (  vtkPolyData *  pd, vtkPolyData *  output )  [protected]

---

Member Data Documentation

int vtkQuadricClustering::UseInputPoints [protected]

Find the feature points of a given set of edges. The points returned are (1) those used by only one edge, (2) those used by > 2 edges, and (3) those where the angle between 2 edges using this point is < angle. Definition at line 274 of file vtkQuadricClustering.h.

int vtkQuadricClustering::UseFeatureEdges [protected]

Definition at line 283 of file vtkQuadricClustering.h.

int vtkQuadricClustering::UseFeaturePoints [protected]

Definition at line 284 of file vtkQuadricClustering.h.

int vtkQuadricClustering::UseInternalTriangles [protected]

Definition at line 285 of file vtkQuadricClustering.h.

int vtkQuadricClustering::NumberOfXDivisions [protected]

Definition at line 287 of file vtkQuadricClustering.h.

int vtkQuadricClustering::NumberOfYDivisions [protected]

Definition at line 288 of file vtkQuadricClustering.h.

int vtkQuadricClustering::NumberOfZDivisions [protected]

Definition at line 289 of file vtkQuadricClustering.h.

int vtkQuadricClustering::NumberOfDivisions[3] [protected]

Definition at line 293 of file vtkQuadricClustering.h.

int vtkQuadricClustering::ComputeNumberOfDivisions [protected]

Definition at line 298 of file vtkQuadricClustering.h.

double vtkQuadricClustering::DivisionOrigin[3] [protected]

Definition at line 300 of file vtkQuadricClustering.h.

double vtkQuadricClustering::DivisionSpacing[3] [protected]

Definition at line 301 of file vtkQuadricClustering.h.

int vtkQuadricClustering::AutoAdjustNumberOfDivisions [protected]

Definition at line 302 of file vtkQuadricClustering.h.

double vtkQuadricClustering::Bounds[6] [protected]

Definition at line 304 of file vtkQuadricClustering.h.

double vtkQuadricClustering::XBinSize [protected]

Definition at line 305 of file vtkQuadricClustering.h.

double vtkQuadricClustering::YBinSize [protected]

Definition at line 306 of file vtkQuadricClustering.h.

double vtkQuadricClustering::ZBinSize [protected]

Definition at line 307 of file vtkQuadricClustering.h.

vtkIdType vtkQuadricClustering::SliceSize [protected]

Definition at line 308 of file vtkQuadricClustering.h.

PointQuadric* vtkQuadricClustering::QuadricArray [protected]

Definition at line 324 of file vtkQuadricClustering.h.

vtkIdType vtkQuadricClustering::NumberOfBinsUsed [protected]

Definition at line 325 of file vtkQuadricClustering.h.

vtkCellArray* vtkQuadricClustering::OutputTriangleArray [protected]

Definition at line 329 of file vtkQuadricClustering.h.

vtkCellArray* vtkQuadricClustering::OutputLines [protected]

Definition at line 330 of file vtkQuadricClustering.h.

vtkFeatureEdges* vtkQuadricClustering::FeatureEdges [protected]

Definition at line 332 of file vtkQuadricClustering.h.

vtkPoints* vtkQuadricClustering::FeaturePoints [protected]

Definition at line 333 of file vtkQuadricClustering.h.

double vtkQuadricClustering::FeaturePointsAngle [protected]

Definition at line 334 of file vtkQuadricClustering.h.

int vtkQuadricClustering::CopyCellData [protected]

Definition at line 336 of file vtkQuadricClustering.h.

int vtkQuadricClustering::InCellCount [protected]

Definition at line 337 of file vtkQuadricClustering.h.

int vtkQuadricClustering::OutCellCount [protected]

Definition at line 338 of file vtkQuadricClustering.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkQuadricClustering.h

---
