#include <vtkSimplePointsReader.h>

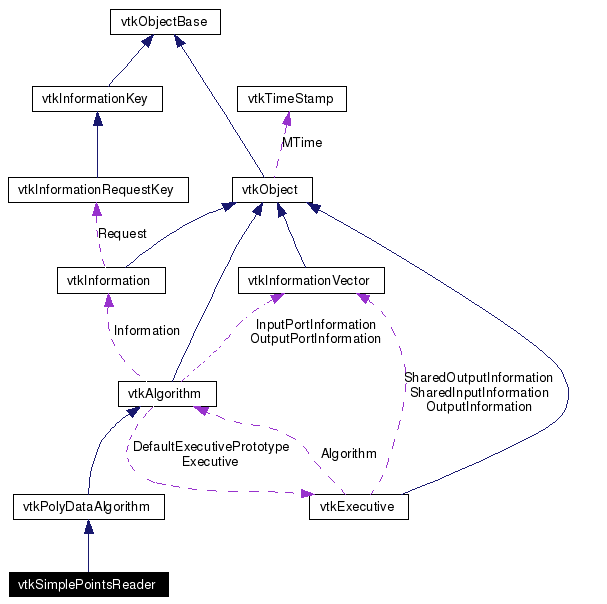

Inheritance diagram for vtkSimplePointsReader:
vtkSimplePointsReader is a source object that reads a list of points from a file. Each point is specified by three floating-point values in ASCII format. There is one point per line of the file. A vertex cell is created for each point in the output. This reader is meant as an example of how to write a reader in VTK.
Definition at line 34 of file vtkSimplePointsReader.h.
Public Types | |
typedef vtkPolyDataAlgorithm | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
virtual void | SetFileName (const char *) |
virtual char * | GetFileName () |
Static Public Member Functions | |
static vtkSimplePointsReader * | New () |
static int | IsTypeOf (const char *type) |
static vtkSimplePointsReader * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
vtkSimplePointsReader () | |
~vtkSimplePointsReader () | |
int | RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
Protected Attributes | |
char * | FileName |
|
Reimplemented from vtkPolyDataAlgorithm. Definition at line 38 of file vtkSimplePointsReader.h. |
|
|
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataAlgorithm. |
|
Reimplemented from vtkPolyDataAlgorithm. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm. |
|
Reimplemented from vtkPolyDataAlgorithm. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataAlgorithm. |
|
Set/Get the name of the file from which to read points. |
|
|
|
This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm. |
|
Definition at line 51 of file vtkSimplePointsReader.h. |
