vtkStructuredGridGeometryFilter Class Reference

#include <vtkStructuredGridGeometryFilter.h>

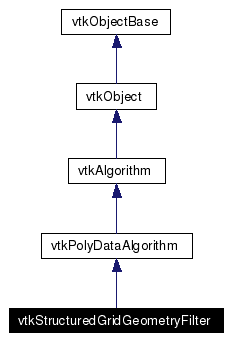

Inheritance diagram for vtkStructuredGridGeometryFilter:

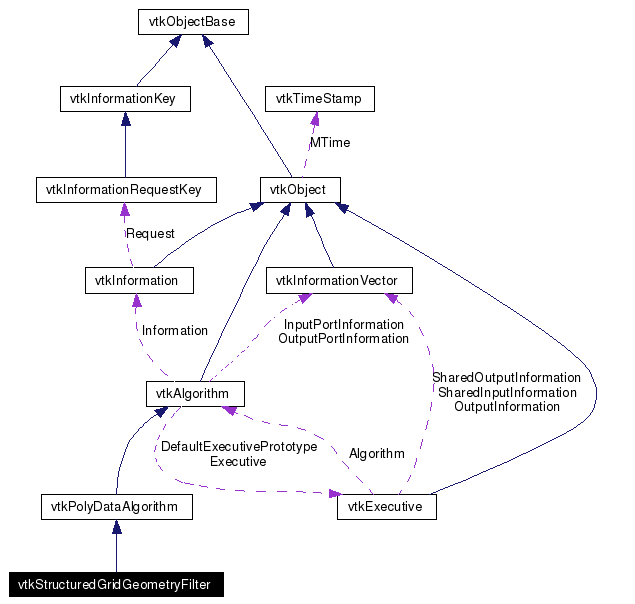

[legend]Collaboration diagram for vtkStructuredGridGeometryFilter:

[legend]List of all members.

---

Detailed Description

extract geometry for structured grid

vtkStructuredGridGeometryFilter is a filter that extracts geometry from a structured grid. By specifying appropriate i-j-k indices, it is possible to extract a point, a curve, a surface, or a "volume". Depending upon the type of data, the curve and surface may be curved or planar. (The volume is actually a (n x m x o) region of points.)

The extent specification is zero-offset. That is, the first k-plane in a 50x50x50 structured grid is given by (0,49, 0,49, 0,0).

The output of this filter is affected by the structured grid blanking. If blanking is on, and a blanking array defined, then those cells attached to blanked points are not output. (Blanking is a property of the input vtkStructuredGrid.)

Warning:

If you don't know the dimensions of the input dataset, you can use a large number to specify extent (the number will be clamped appropriately). For example, if the dataset dimensions are 50x50x50, and you want a the fifth k-plane, you can use the extents (0,100, 0,100, 4,4). The 100 will automatically be clamped to 49.

See also:

vtkGeometryFilter vtkExtractGrid vtkStructuredGrid

Examples:

vtkStructuredGridGeometryFilter (Examples)

Tests:

vtkStructuredGridGeometryFilter (Tests)

Definition at line 54 of file vtkStructuredGridGeometryFilter.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	SetExtent (int iMin, int iMax, int jMin, int jMax, int kMin, int kMax)
void	SetExtent (int extent[6])
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int *	GetExtent ()
virtual void	GetExtent (int data[6])
Static Public Member Functions
static vtkStructuredGridGeometryFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkStructuredGridGeometryFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkStructuredGridGeometryFilter ()
	~vtkStructuredGridGeometryFilter ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
int	Extent [6]

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkStructuredGridGeometryFilter::Superclass

Reimplemented from vtkPolyDataAlgorithm. Definition at line 58 of file vtkStructuredGridGeometryFilter.h.

---

Constructor & Destructor Documentation

vtkStructuredGridGeometryFilter::vtkStructuredGridGeometryFilter (   )  [protected]

vtkStructuredGridGeometryFilter::~vtkStructuredGridGeometryFilter (   )  [inline, protected]

Definition at line 75 of file vtkStructuredGridGeometryFilter.h.

---

Member Function Documentation

static vtkStructuredGridGeometryFilter* vtkStructuredGridGeometryFilter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkStructuredGridGeometryFilter::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkStructuredGridGeometryFilter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkStructuredGridGeometryFilter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

static vtkStructuredGridGeometryFilter* vtkStructuredGridGeometryFilter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkStructuredGridGeometryFilter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataAlgorithm.

virtual int* vtkStructuredGridGeometryFilter::GetExtent (   )  [virtual]

Get the extent in topological coordinate range (imin,imax, jmin,jmax, kmin,kmax).

virtual void vtkStructuredGridGeometryFilter::GetExtent (  int  data[6]  )  [virtual]

void vtkStructuredGridGeometryFilter::SetExtent (  int  iMin, int  iMax, int  jMin, int  jMax, int  kMin, int  kMax )

Specify (imin,imax, jmin,jmax, kmin,kmax) indices.

void vtkStructuredGridGeometryFilter::SetExtent (  int  extent[6]  )

Specify (imin,imax, jmin,jmax, kmin,kmax) indices in array form.

virtual int vtkStructuredGridGeometryFilter::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkStructuredGridGeometryFilter::RequestUpdateExtent (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkStructuredGridGeometryFilter::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkPolyDataAlgorithm.

---

Member Data Documentation

int vtkStructuredGridGeometryFilter::Extent[6] [protected]

Definition at line 81 of file vtkStructuredGridGeometryFilter.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkStructuredGridGeometryFilter.h

---
