vtkSynchronizedTemplatesCutter3D Class Reference

#include <vtkSynchronizedTemplatesCutter3D.h>

Inheritance diagram for vtkSynchronizedTemplatesCutter3D:

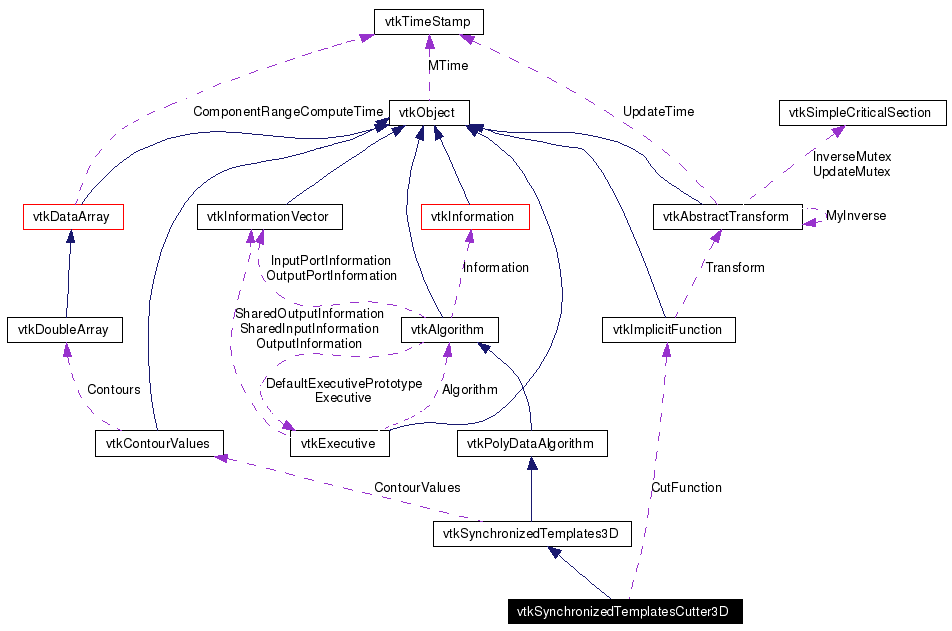

[legend]Collaboration diagram for vtkSynchronizedTemplatesCutter3D:

[legend]List of all members.

---

Detailed Description

generate cut surface from structured points

vtkSynchronizedTemplatesCutter3D is an implementation of the synchronized template algorithm. Note that vtkCutFilter will automatically use this class when appropriate.

See also:

vtkContourFilter vtkSynchronizedTemplates3D

Definition at line 34 of file vtkSynchronizedTemplatesCutter3D.h.

Public Types
typedef vtkSynchronizedTemplates3D	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	ThreadedExecute (vtkImageData *data, vtkInformation *outInfo, int *exExt, int)
virtual void	SetCutFunction (vtkImplicitFunction *)
virtual vtkImplicitFunction *	GetCutFunction ()
Static Public Member Functions
static vtkSynchronizedTemplatesCutter3D *	New ()
static int	IsTypeOf (const char *type)
static vtkSynchronizedTemplatesCutter3D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkSynchronizedTemplatesCutter3D ()
	~vtkSynchronizedTemplatesCutter3D ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
Protected Attributes
vtkImplicitFunction *	CutFunction

---

Member Typedef Documentation

typedef vtkSynchronizedTemplates3D vtkSynchronizedTemplatesCutter3D::Superclass

Reimplemented from vtkSynchronizedTemplates3D. Definition at line 39 of file vtkSynchronizedTemplatesCutter3D.h.

---

Constructor & Destructor Documentation

vtkSynchronizedTemplatesCutter3D::vtkSynchronizedTemplatesCutter3D (   )  [protected]

vtkSynchronizedTemplatesCutter3D::~vtkSynchronizedTemplatesCutter3D (   )  [protected]

---

Member Function Documentation

static vtkSynchronizedTemplatesCutter3D* vtkSynchronizedTemplatesCutter3D::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkSynchronizedTemplates3D.

virtual const char* vtkSynchronizedTemplatesCutter3D::GetClassName (   )  [virtual]

Reimplemented from vtkSynchronizedTemplates3D.

static int vtkSynchronizedTemplatesCutter3D::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkSynchronizedTemplates3D.

virtual int vtkSynchronizedTemplatesCutter3D::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkSynchronizedTemplates3D.

static vtkSynchronizedTemplatesCutter3D* vtkSynchronizedTemplatesCutter3D::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkSynchronizedTemplates3D.

void vtkSynchronizedTemplatesCutter3D::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSynchronizedTemplates3D.

void vtkSynchronizedTemplatesCutter3D::ThreadedExecute (  vtkImageData *  data, vtkInformation *  outInfo, int *  exExt, int  )

Needed by templated functions.

virtual void vtkSynchronizedTemplatesCutter3D::SetCutFunction (  vtkImplicitFunction *   )  [virtual]

Specify the implicit function to perform the cutting.

virtual vtkImplicitFunction* vtkSynchronizedTemplatesCutter3D::GetCutFunction (   )  [virtual]

Specify the implicit function to perform the cutting.

virtual int vtkSynchronizedTemplatesCutter3D::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkSynchronizedTemplates3D.

---

Member Data Documentation

vtkImplicitFunction* vtkSynchronizedTemplatesCutter3D::CutFunction [protected]

Definition at line 58 of file vtkSynchronizedTemplatesCutter3D.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkSynchronizedTemplatesCutter3D.h

---
