vtkTransformFilter Class Reference

#include <vtkTransformFilter.h>

Inheritance diagram for vtkTransformFilter:

Inheritance graph
[legend]

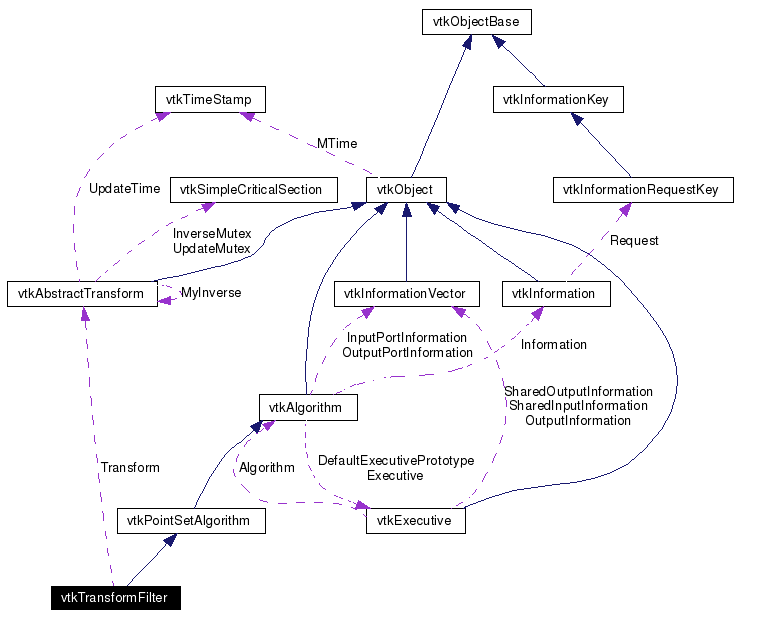

Collaboration diagram for vtkTransformFilter:

Collaboration graph
[legend]
List of all members.

Detailed Description

transform points and associated normals and vectors

vtkTransformFilter is a filter to transform point coordinates, and associated point normals and vectors. Other point data is passed through the filter.

An alternative method of transformation is to use vtkActor's methods to scale, rotate, and translate objects. The difference between the two methods is that vtkActor's transformation simply effects where objects are rendered (via the graphics pipeline), whereas vtkTransformFilter actually modifies point coordinates in the visualization pipeline. This is necessary for some objects (e.g., vtkProbeFilter) that require point coordinates as input.

See also:
vtkAbstractTransform vtkTransformPolyDataFilter vtkActor
Tests:
vtkTransformFilter (Tests)

Definition at line 44 of file vtkTransformFilter.h.

Public Types

typedef vtkPointSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
virtual void SetTransform (vtkAbstractTransform *)
virtual vtkAbstractTransformGetTransform ()

Static Public Member Functions

static vtkTransformFilterNew ()
static int IsTypeOf (const char *type)
static vtkTransformFilterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTransformFilter ()
 ~vtkTransformFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkAbstractTransformTransform


Member Typedef Documentation

typedef vtkPointSetAlgorithm vtkTransformFilter::Superclass


Reimplemented from vtkPointSetAlgorithm.

Definition at line 48 of file vtkTransformFilter.h.


Constructor & Destructor Documentation

vtkTransformFilter::vtkTransformFilter  )  [protected]


vtkTransformFilter::~vtkTransformFilter  )  [protected]



Member Function Documentation

static vtkTransformFilter* vtkTransformFilter::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPointSetAlgorithm.

virtual const char* vtkTransformFilter::GetClassName  )  [virtual]


Reimplemented from vtkPointSetAlgorithm.

static int vtkTransformFilter::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPointSetAlgorithm.

virtual int vtkTransformFilter::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPointSetAlgorithm.

static vtkTransformFilter* vtkTransformFilter::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkPointSetAlgorithm.

void vtkTransformFilter::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointSetAlgorithm.

unsigned long vtkTransformFilter::GetMTime  )  [virtual]


Return the MTime also considering the transform.

Reimplemented from vtkObject.

virtual void vtkTransformFilter::SetTransform vtkAbstractTransform  )  [virtual]


Specify the transform object used to transform points.

virtual vtkAbstractTransform* vtkTransformFilter::GetTransform  )  [virtual]


Return the MTime also considering the transform.

int vtkTransformFilter::RequestData vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkPointSetAlgorithm.


Member Data Documentation

vtkAbstractTransform* vtkTransformFilter::Transform [protected]


Definition at line 65 of file vtkTransformFilter.h.


The documentation for this class was generated from the following file:
