vtkTreeCompositer Class Reference

#include <vtkTreeCompositer.h>

Inheritance diagram for vtkTreeCompositer:

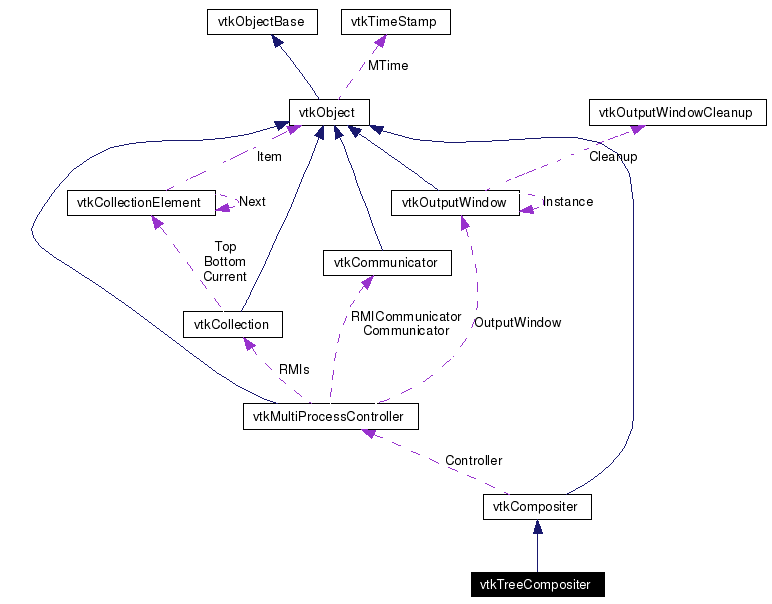

[legend]Collaboration diagram for vtkTreeCompositer:

[legend]List of all members.

---

Detailed Description

Implements tree based compositing.

vtkTreeCompositer operates in multiple processes. Each compositer has a render window. They use a vtkMultiProcessController to communicate the color and depth buffer to process 0's render window. It will not handle transparency well.

See also:

vtkCompositeManager

Definition at line 62 of file vtkTreeCompositer.h.

Public Types
typedef vtkCompositer	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	CompositeBuffer (vtkDataArray *pBuf, vtkFloatArray *zBuf, vtkDataArray *pTmp, vtkFloatArray *zTmp)
Static Public Member Functions
static vtkTreeCompositer *	New ()
static int	IsTypeOf (const char *type)
static vtkTreeCompositer *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTreeCompositer ()
	~vtkTreeCompositer ()

---

Member Typedef Documentation

typedef vtkCompositer vtkTreeCompositer::Superclass

Reimplemented from vtkCompositer. Definition at line 66 of file vtkTreeCompositer.h.

---

Constructor & Destructor Documentation

vtkTreeCompositer::vtkTreeCompositer (   )  [protected]

vtkTreeCompositer::~vtkTreeCompositer (   )  [protected]

---

Member Function Documentation

static vtkTreeCompositer* vtkTreeCompositer::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkCompositer.

virtual const char* vtkTreeCompositer::GetClassName (   )  [virtual]

Reimplemented from vtkCompositer.

static int vtkTreeCompositer::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkCompositer.

virtual int vtkTreeCompositer::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkCompositer.

static vtkTreeCompositer* vtkTreeCompositer::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkCompositer.

void vtkTreeCompositer::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkCompositer.

virtual void vtkTreeCompositer::CompositeBuffer (  vtkDataArray *  pBuf, vtkFloatArray *  zBuf, vtkDataArray *  pTmp, vtkFloatArray *  zTmp )  [virtual]

This method gets called on every process. The final image gets put into pBuf and zBuf. Reimplemented from vtkCompositer.

---

The documentation for this class was generated from the following file:

• dox/Parallel/vtkTreeCompositer.h

---
