#include <vtkTriangleStrip.h>

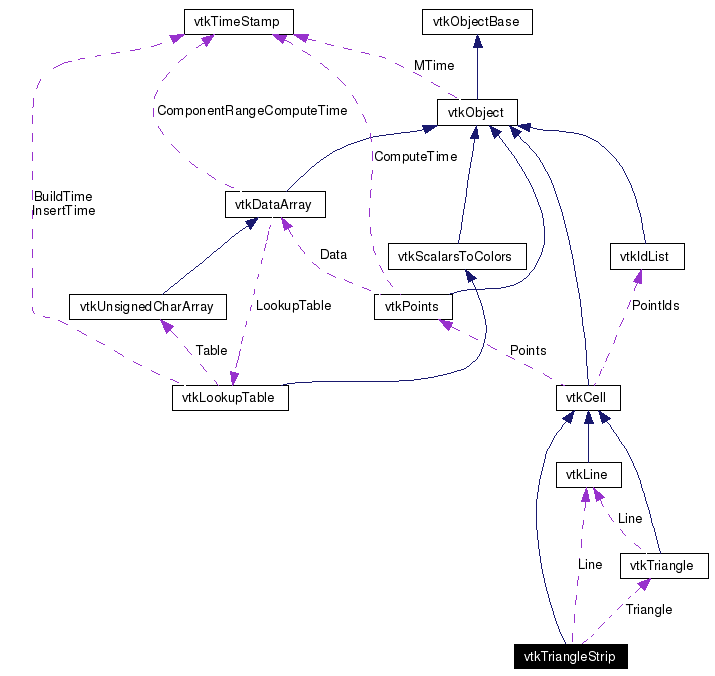

Inheritance diagram for vtkTriangleStrip:
vtkTriangleStrip is a concrete implementation of vtkCell to represent a 2D triangle strip. A triangle strip is a compact representation of triangles connected edge to edge in strip fashion. The connectivity of a triangle strip is three points defining an initial triangle, then for each additional triangle, a single point that, combined with the previous two points, defines the next triangle.
Definition at line 40 of file vtkTriangleStrip.h.
Public Types | |
| typedef vtkCell | Superclass |
Public Member Functions | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| int | EvaluatePosition (double x[3], double *closestPoint, int &subId, double pcoords[3], double &dist2, double *weights) |
| void | EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights) |
| int | IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId) |
| int | Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts) |
| void | Derivatives (int subId, double pcoords[3], double *values, int dim, double *derivs) |
| int | IsPrimaryCell () |
| int | GetParametricCenter (double pcoords[3]) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| int | GetCellType () |
| int | GetCellDimension () |
| int | GetNumberOfEdges () |
| int | GetNumberOfFaces () |
| vtkCell * | GetEdge (int edgeId) |
| vtkCell * | GetFace (int vtkNotUsed(faceId)) |
| int | CellBoundary (int subId, double pcoords[3], vtkIdList *pts) |
| void | Contour (double value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd) |
| void | Clip (double value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut) |
Static Public Member Functions | |
| static vtkTriangleStrip * | New () |
| static int | IsTypeOf (const char *type) |
| static vtkTriangleStrip * | SafeDownCast (vtkObject *o) |
| static void | DecomposeStrip (int npts, vtkIdType *pts, vtkCellArray *tris) |
Protected Member Functions | |
| vtkTriangleStrip () | |
| ~vtkTriangleStrip () | |
Protected Attributes | |
| vtkLine * | Line |
| vtkTriangle * | Triangle |
|
|
Reimplemented from vtkCell. Definition at line 44 of file vtkTriangleStrip.h. |
|
|
|
|
|
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject. |
|
|
Reimplemented from vtkCell. |
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkCell. |
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkCell. |
|
|
Reimplemented from vtkCell. |
|
||||||||||||
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkCell. |
|
|
See the vtkCell API for descriptions of these methods. Implements vtkCell. Definition at line 49 of file vtkTriangleStrip.h. References VTK_TRIANGLE_STRIP. |
|
|
Return the topological dimensional of the cell (0,1,2, or 3). Implements vtkCell. Definition at line 50 of file vtkTriangleStrip.h. |
|
|
Return the number of edges in the cell. Implements vtkCell. Definition at line 51 of file vtkTriangleStrip.h. References vtkCell::GetNumberOfPoints(). |
|
|
Return the number of faces in the cell. Implements vtkCell. Definition at line 52 of file vtkTriangleStrip.h. |
|
|
Return the edge cell from the edgeId of the cell. Implements vtkCell. |
|
|
Definition at line 54 of file vtkTriangleStrip.h. |
|
||||||||||||||||
|
Given parametric coordinates of a point, return the closest cell boundary, and whether the point is inside or outside of the cell. The cell boundary is defined by a list of points (pts) that specify a face (3D cell), edge (2D cell), or vertex (1D cell). If the return value of the method is != 0, then the point is inside the cell. Implements vtkCell. |
|
||||||||||||||||||||||||||||||||||||||||||||||||
|
Generate contouring primitives. The scalar list cellScalars are scalar values at each cell point. The point locator is essentially a points list that merges points as they are inserted (i.e., prevents duplicates). Contouring primitives can be vertices, lines, or polygons. It is possible to interpolate point data along the edge by providing input and output point data - if outPd is NULL, then no interpolation is performed. Also, if the output cell data is non-NULL, the cell data from the contoured cell is passed to the generated contouring primitives. (Note: the CopyAllocate() method must be invoked on both the output cell and point data. The cellId refers to the cell from which the cell data is copied.) Implements vtkCell. |
|
||||||||||||||||||||||||||||||||||||||||||||
|
Cut (or clip) the cell based on the input cellScalars and the specified value. The output of the clip operation will be one or more cells of the same topological dimension as the original cell. The flag insideOut controls what part of the cell is considered inside - normally cell points whose scalar value is greater than "value" are considered inside. If insideOut is on, this is reversed. Also, if the output cell data is non-NULL, the cell data from the clipped cell is passed to the generated contouring primitives. (Note: the CopyAllocate() method must be invoked on both the output cell and point data. The cellId refers to the cell from which the cell data is copied.) Implements vtkCell. |
|
||||||||||||||||||||||||||||
|
Given a point x[3] return inside(=1) or outside(=0) cell; evaluate parametric coordinates, sub-cell id (!=0 only if cell is composite), distance squared of point x[3] to cell (in particular, the sub-cell indicated), closest point on cell to x[3] (unless closestPoint is null, in which case, the closest point and dist2 are not found), and interpolation weights in cell. (The number of weights is equal to the number of points defining the cell). Note: on rare occasions a -1 is returned from the method. This means that numerical error has occurred and all data returned from this method should be ignored. Also, inside/outside is determine parametrically. That is, a point is inside if it satisfies parametric limits. This can cause problems for cells of topological dimension 2 or less, since a point in 3D can project onto the cell within parametric limits but be "far" from the cell. Thus the value dist2 may be checked to determine true in/out. Implements vtkCell. |
|
||||||||||||||||||||
|
Determine global coordinate (x[3]) from subId and parametric coordinates. Also returns interpolation weights. (The number of weights is equal to the number of points in the cell.) Implements vtkCell. |
|
||||||||||||||||||||||||||||||||
|
Intersect with a ray. Return parametric coordinates (both line and cell) and global intersection coordinates, given ray definition and tolerance. The method returns non-zero value if intersection occurs. Implements vtkCell. |
|
||||||||||||||||
|
Generate simplices of proper dimension. If cell is 3D, tetrahedron are generated; if 2D triangles; if 1D lines; if 0D points. The form of the output is a sequence of points, each n+1 points (where n is topological cell dimension) defining a simplex. The index is a parameter that controls which triangulation to use (if more than one is possible). If numerical degeneracy encountered, 0 is returned, otherwise 1 is returned. This method does not insert new points: all the points that define the simplices are the points that define the cell. Implements vtkCell. |
|
||||||||||||||||||||||||
|
Compute derivatives given cell subId and parametric coordinates. The values array is a series of data value(s) at the cell points. There is a one-to-one correspondence between cell point and data value(s). Dim is the number of data values per cell point. Derivs are derivatives in the x-y-z coordinate directions for each data value. Thus, if computing derivatives for a scalar function in a hexahedron, dim=1, 8 values are supplied, and 3 deriv values are returned (i.e., derivatives in x-y-z directions). On the other hand, if computing derivatives of velocity (vx,vy,vz) dim=3, 24 values are supplied ((vx,vy,vz)1, (vx,vy,vz)2, ....()8), and 9 deriv values are returned ((d(vx)/dx),(d(vx)/dy),(d(vx)/dz), (d(vy)/dx),(d(vy)/dy), (d(vy)/dz), (d(vz)/dx),(d(vz)/dy),(d(vz)/dz)). Implements vtkCell. |
|
|
Return whether this cell type has a fixed topology or whether the topology varies depending on the data (e.g., vtkConvexPointSet). This compares to composite cells that are typically composed of primary cells (e.g., a triangle strip composite cell is made up of triangle primary cells). Reimplemented from vtkCell. Definition at line 78 of file vtkTriangleStrip.h. |
|
|
Return the center of the point cloud in parametric coordinates. Reimplemented from vtkCell. |
|
||||||||||||||||
|
Given a triangle strip, decompose it into a list of (triangle) polygons. The polygons are appended to the end of the list of triangles. |
|
|
Definition at line 93 of file vtkTriangleStrip.h. |
|
|
Definition at line 94 of file vtkTriangleStrip.h. |
