#include <vtkTriangularTCoords.h>

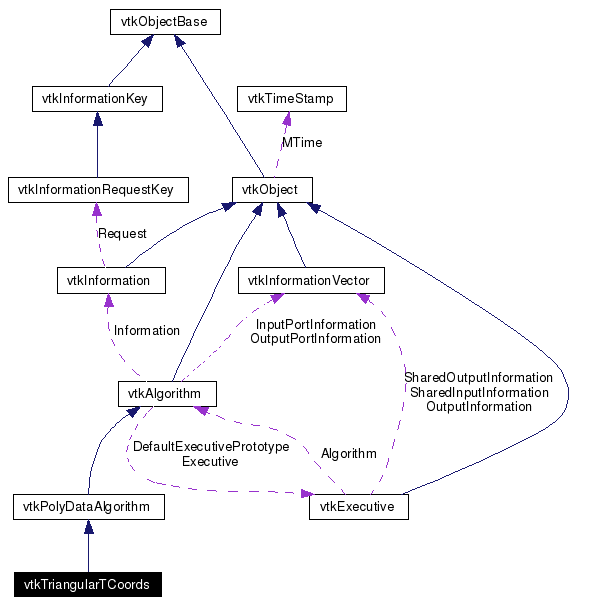

Inheritance diagram for vtkTriangularTCoords:
vtkTriangularTCoords is a filter that generates texture coordinates for triangles. Texture coordinates for each triangle are: (0,0), (1,0) and (.5,sqrt(3)/2). This filter assumes that the triangle texture map is symmetric about the center of the triangle. Thus the order Of the texture coordinates is not important. The procedural texture in vtkTriangularTexture is designed with this symmetry. For more information see the paper "Opacity-modulating Triangular Textures for Irregular Surfaces," by Penny Rheingans, IEEE Visualization '96, pp. 219-225.
Definition at line 39 of file vtkTriangularTCoords.h.
Public Types | |
typedef vtkPolyDataAlgorithm | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
Static Public Member Functions | |
static vtkTriangularTCoords * | New () |
static int | IsTypeOf (const char *type) |
static vtkTriangularTCoords * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
vtkTriangularTCoords () | |
~vtkTriangularTCoords () | |
int | RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
|
Reimplemented from vtkPolyDataAlgorithm. Definition at line 43 of file vtkTriangularTCoords.h. |
|
Definition at line 47 of file vtkTriangularTCoords.h. |
|
Definition at line 48 of file vtkTriangularTCoords.h. |
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataAlgorithm. |
|
Reimplemented from vtkPolyDataAlgorithm. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm. |
|
Reimplemented from vtkPolyDataAlgorithm. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataAlgorithm. |
|
This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm. |
