vtkVRMLExporter Class Reference

#include <vtkVRMLExporter.h>

Inheritance diagram for vtkVRMLExporter:

Inheritance graph
[legend]

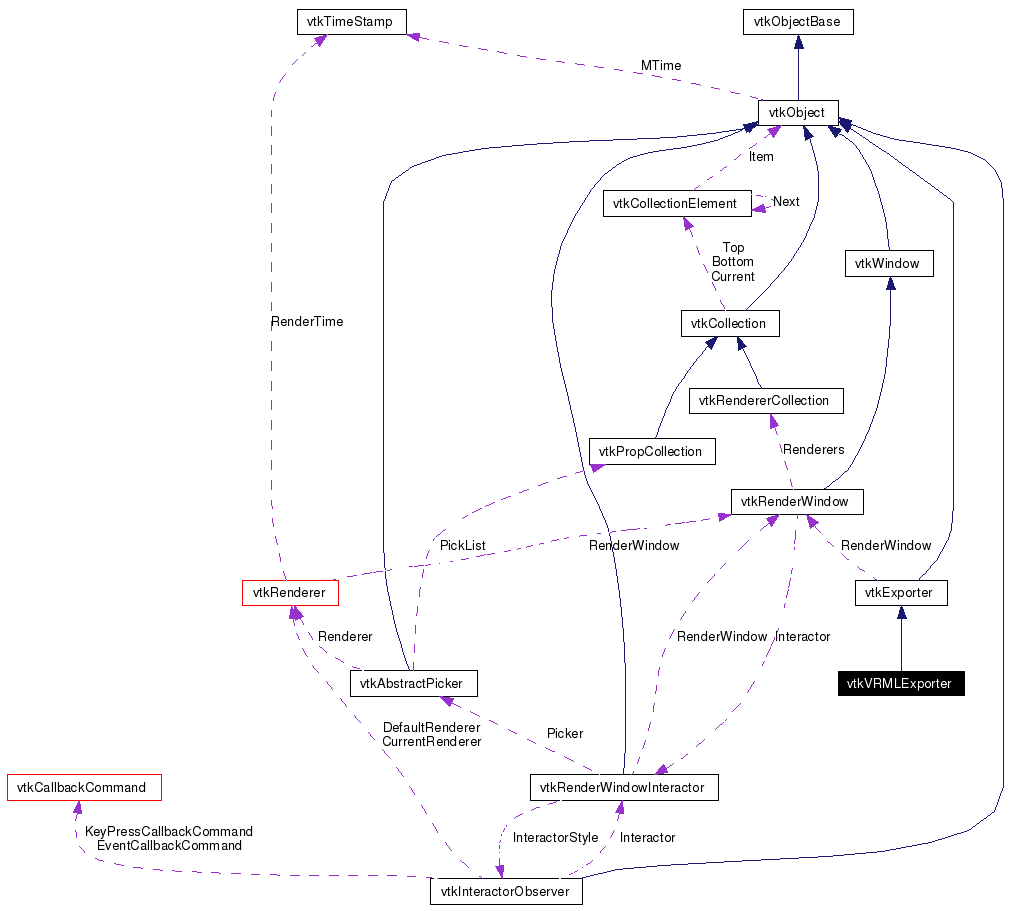

Collaboration diagram for vtkVRMLExporter:

Collaboration graph
[legend]
List of all members.

Detailed Description

export a scene into VRML 2.0 format.

vtkVRMLExporter is a concrete subclass of vtkExporter that writes VRML 2.0 files. This is based on the VRML 2.0 draft #3 but it should be pretty stable since we aren't using any of the newer features.

See also:
vtkExporter
Tests:
vtkVRMLExporter (Tests)

Definition at line 40 of file vtkVRMLExporter.h.

Public Types

typedef vtkExporter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void SetFilePointer (FILE *)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetSpeed (double)
virtual double GetSpeed ()

Static Public Member Functions

static vtkVRMLExporterNew ()
static int IsTypeOf (const char *type)
static vtkVRMLExporterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkVRMLExporter ()
 ~vtkVRMLExporter ()
void WriteData ()
void WriteALight (vtkLight *aLight, FILE *fp)
void WriteAnActor (vtkActor *anActor, FILE *fp)
void WritePointData (vtkPoints *points, vtkDataArray *normals, vtkDataArray *tcoords, vtkUnsignedCharArray *colors, FILE *fp)

Protected Attributes

char * FileName
FILE * FilePointer
double Speed


Member Typedef Documentation

typedef vtkExporter vtkVRMLExporter::Superclass


Reimplemented from vtkExporter.

Definition at line 44 of file vtkVRMLExporter.h.


Constructor & Destructor Documentation

vtkVRMLExporter::vtkVRMLExporter  )  [protected]


vtkVRMLExporter::~vtkVRMLExporter  )  [protected]



Member Function Documentation

static vtkVRMLExporter* vtkVRMLExporter::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkVRMLExporter::GetClassName  )  [virtual]


Reimplemented from vtkExporter.

static int vtkVRMLExporter::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

virtual int vtkVRMLExporter::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

static vtkVRMLExporter* vtkVRMLExporter::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkExporter.

void vtkVRMLExporter::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExporter.

virtual void vtkVRMLExporter::SetFileName const char *   )  [virtual]


Specify the name of the VRML file to write.

virtual char* vtkVRMLExporter::GetFileName  )  [virtual]


virtual void vtkVRMLExporter::SetSpeed double   )  [virtual]


Specify the Speed of navigation. Default is 4.

virtual double vtkVRMLExporter::GetSpeed  )  [virtual]


Specify the Speed of navigation. Default is 4.

void vtkVRMLExporter::SetFilePointer FILE *   )


Set the file pointer to write to. This will override a FileName if specified.

void vtkVRMLExporter::WriteData  )  [protected, virtual]


Implements vtkExporter.

void vtkVRMLExporter::WriteALight vtkLight aLight,
FILE *  fp
[protected]


void vtkVRMLExporter::WriteAnActor vtkActor anActor,
FILE *  fp
[protected]


void vtkVRMLExporter::WritePointData vtkPoints points,
vtkDataArray normals,
vtkDataArray tcoords,
vtkUnsignedCharArray colors,
FILE *  fp
[protected]



Member Data Documentation

char* vtkVRMLExporter::FileName [protected]


Definition at line 73 of file vtkVRMLExporter.h.

FILE* vtkVRMLExporter::FilePointer [protected]


Definition at line 74 of file vtkVRMLExporter.h.

double vtkVRMLExporter::Speed [protected]


Definition at line 75 of file vtkVRMLExporter.h.


The documentation for this class was generated from the following file:
