vtkXMLPUnstructuredGridReader Class Reference

#include <vtkXMLPUnstructuredGridReader.h>

Inheritance diagram for vtkXMLPUnstructuredGridReader:

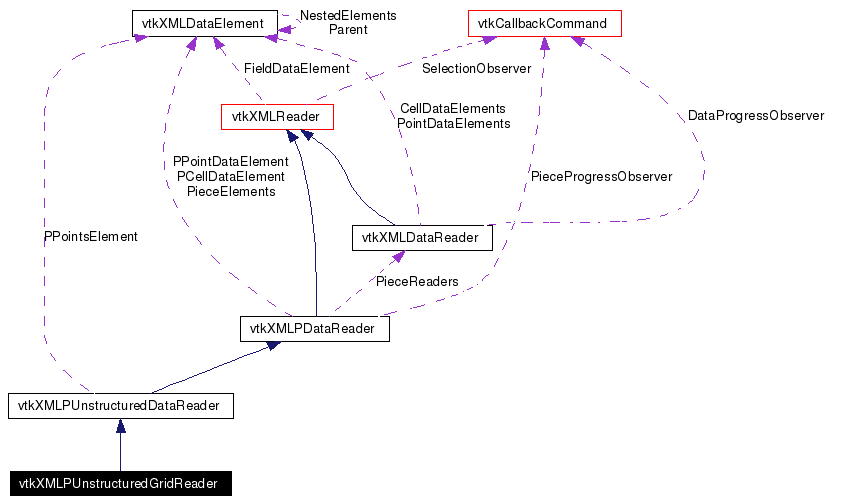

[legend]Collaboration diagram for vtkXMLPUnstructuredGridReader:

[legend]List of all members.

---

Detailed Description

Read PVTK XML UnstructuredGrid files.

vtkXMLPUnstructuredGridReader reads the PVTK XML UnstructuredGrid file format. This reads the parallel format's summary file and then uses vtkXMLUnstructuredGridReader to read data from the individual UnstructuredGrid piece files. Streaming is supported. The standard extension for this reader's file format is "pvtu".

See also:

vtkXMLUnstructuredGridReader

Definition at line 35 of file vtkXMLPUnstructuredGridReader.h.

void	SetOutput (vtkUnstructuredGrid *output)
vtkUnstructuredGrid *	GetOutput ()
vtkUnstructuredGrid *	GetOutput (int idx)
static vtkXMLPUnstructuredGridReader *	New ()
Public Types
typedef vtkXMLPUnstructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLPUnstructuredGridReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXMLPUnstructuredGridReader ()
	~vtkXMLPUnstructuredGridReader ()
const char *	GetDataSetName ()
void	GetOutputUpdateExtent (int &piece, int &numberOfPieces, int &ghostLevel)
void	SetupOutputTotals ()
void	SetupOutputData ()
void	SetupNextPiece ()
int	ReadPieceData ()
void	CopyArrayForCells (vtkDataArray *inArray, vtkDataArray *outArray)
vtkXMLDataReader *	CreatePieceReader ()
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
vtkIdType	StartCell

---

Member Typedef Documentation

typedef vtkXMLPUnstructuredDataReader vtkXMLPUnstructuredGridReader::Superclass

Reimplemented from vtkXMLPUnstructuredDataReader. Definition at line 38 of file vtkXMLPUnstructuredGridReader.h.

---

Constructor & Destructor Documentation

vtkXMLPUnstructuredGridReader::vtkXMLPUnstructuredGridReader (   )  [protected]

vtkXMLPUnstructuredGridReader::~vtkXMLPUnstructuredGridReader (   )  [protected]

---

Member Function Documentation

virtual const char* vtkXMLPUnstructuredGridReader::GetClassName (   )  [virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

static int vtkXMLPUnstructuredGridReader::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkXMLPUnstructuredDataReader.

virtual int vtkXMLPUnstructuredGridReader::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkXMLPUnstructuredDataReader.

static vtkXMLPUnstructuredGridReader* vtkXMLPUnstructuredGridReader::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkXMLPUnstructuredDataReader.

static vtkXMLPUnstructuredGridReader* vtkXMLPUnstructuredGridReader::New (   )  [static]

Get/Set the reader's output. Reimplemented from vtkAlgorithm.

void vtkXMLPUnstructuredGridReader::SetOutput (  vtkUnstructuredGrid *  output  )

Get/Set the reader's output.

vtkUnstructuredGrid* vtkXMLPUnstructuredGridReader::GetOutput (   )

Get/Set the reader's output.

vtkUnstructuredGrid* vtkXMLPUnstructuredGridReader::GetOutput (  int  idx  )

Get/Set the reader's output.

const char* vtkXMLPUnstructuredGridReader::GetDataSetName (   )  [protected, virtual]

Implements vtkXMLReader.

void vtkXMLPUnstructuredGridReader::GetOutputUpdateExtent (  int &  piece, int &  numberOfPieces, int &  ghostLevel )  [protected, virtual]

Implements vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::SetupOutputTotals (   )  [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::SetupOutputData (   )  [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::SetupNextPiece (   )  [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

int vtkXMLPUnstructuredGridReader::ReadPieceData (   )  [protected, virtual]

Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::CopyArrayForCells (  vtkDataArray *  inArray, vtkDataArray *  outArray )  [protected, virtual]

Implements vtkXMLPDataReader.

vtkXMLDataReader* vtkXMLPUnstructuredGridReader::CreatePieceReader (   )  [protected, virtual]

Implements vtkXMLPDataReader.

virtual int vtkXMLPUnstructuredGridReader::FillOutputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkIdType vtkXMLPUnstructuredGridReader::StartCell [protected]

Definition at line 67 of file vtkXMLPUnstructuredGridReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLPUnstructuredGridReader.h

---
