vtkXMLStructuredGridWriter Class Reference

#include <vtkXMLStructuredGridWriter.h>

Inheritance diagram for vtkXMLStructuredGridWriter:

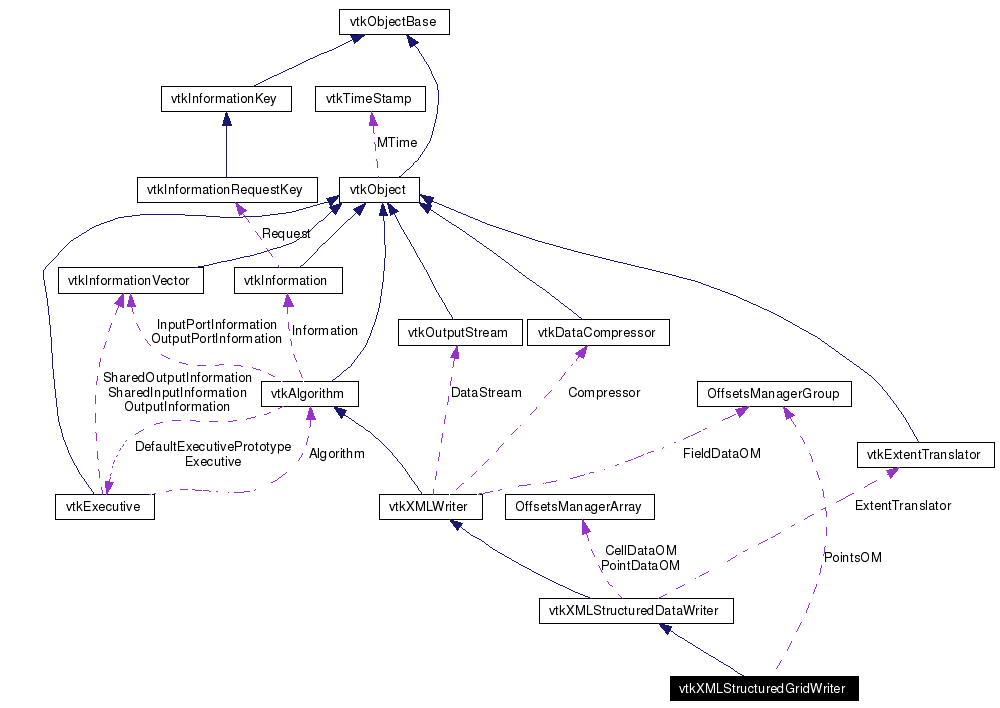

[legend]Collaboration diagram for vtkXMLStructuredGridWriter:

[legend]List of all members.

---

Detailed Description

Write VTK XML StructuredGrid files.

vtkXMLStructuredGridWriter writes the VTK XML StructuredGrid file format. One structured grid input can be written into one file in any number of streamed pieces. The standard extension for this writer's file format is "vts". This writer is also used to write a single piece of the parallel file format.

See also:

vtkXMLPStructuredGridWriter

Tests:

vtkXMLStructuredGridWriter (Tests)

Definition at line 38 of file vtkXMLStructuredGridWriter.h.

Public Types
typedef vtkXMLStructuredDataWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
const char *	GetDefaultFileExtension ()
void	PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGrid *	GetInput ()
Static Public Member Functions
static vtkXMLStructuredGridWriter *	New ()
static int	IsTypeOf (const char *type)
static vtkXMLStructuredGridWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXMLStructuredGridWriter ()
	~vtkXMLStructuredGridWriter ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
void	WriteAppendedPiece (int index, vtkIndent indent)
void	WriteAppendedPieceData (int index)
void	WriteInlinePiece (vtkIndent indent)
void	GetInputExtent (int *extent)
const char *	GetDataSetName ()
void	CalculateSuperclassFraction (float *fractions)
virtual void	AllocatePositionArrays ()
virtual void	DeletePositionArrays ()
Protected Attributes
OffsetsManagerGroup *	PointsOM

---

Member Typedef Documentation

typedef vtkXMLStructuredDataWriter vtkXMLStructuredGridWriter::Superclass

Reimplemented from vtkXMLStructuredDataWriter. Definition at line 42 of file vtkXMLStructuredGridWriter.h.

---

Constructor & Destructor Documentation

vtkXMLStructuredGridWriter::vtkXMLStructuredGridWriter (   )  [protected]

vtkXMLStructuredGridWriter::~vtkXMLStructuredGridWriter (   )  [protected]

---

Member Function Documentation

static vtkXMLStructuredGridWriter* vtkXMLStructuredGridWriter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkXMLStructuredGridWriter::GetClassName (   )  [virtual]

Reimplemented from vtkXMLStructuredDataWriter.

static int vtkXMLStructuredGridWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkXMLStructuredDataWriter.

virtual int vtkXMLStructuredGridWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkXMLStructuredDataWriter.

static vtkXMLStructuredGridWriter* vtkXMLStructuredGridWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Enumerate big and little endian byte order settings. Reimplemented from vtkXMLStructuredDataWriter.

vtkStructuredGrid* vtkXMLStructuredGridWriter::GetInput (   )

Get/Set the writer's input. Reimplemented from vtkXMLWriter.

const char* vtkXMLStructuredGridWriter::GetDefaultFileExtension (   )  [virtual]

Get the default file extension for files written by this writer. Implements vtkXMLWriter.

virtual int vtkXMLStructuredGridWriter::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm.

void vtkXMLStructuredGridWriter::WriteAppendedPiece (  int  index, vtkIndent  indent )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::WriteAppendedPieceData (  int  index  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::WriteInlinePiece (  vtkIndent  indent  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLStructuredGridWriter::GetInputExtent (  int *  extent  )  [protected, virtual]

Implements vtkXMLStructuredDataWriter.

const char* vtkXMLStructuredGridWriter::GetDataSetName (   )  [protected, virtual]

Implements vtkXMLWriter.

void vtkXMLStructuredGridWriter::CalculateSuperclassFraction (  float *  fractions  )  [protected]

virtual void vtkXMLStructuredGridWriter::AllocatePositionArrays (   )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

virtual void vtkXMLStructuredGridWriter::DeletePositionArrays (   )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

---

Member Data Documentation

OffsetsManagerGroup* vtkXMLStructuredGridWriter::PointsOM [protected]

Definition at line 71 of file vtkXMLStructuredGridWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLStructuredGridWriter.h

---
