vtkXOpenGLRenderWindow Class Reference

#include <vtkXOpenGLRenderWindow.h>

Inheritance diagram for vtkXOpenGLRenderWindow:

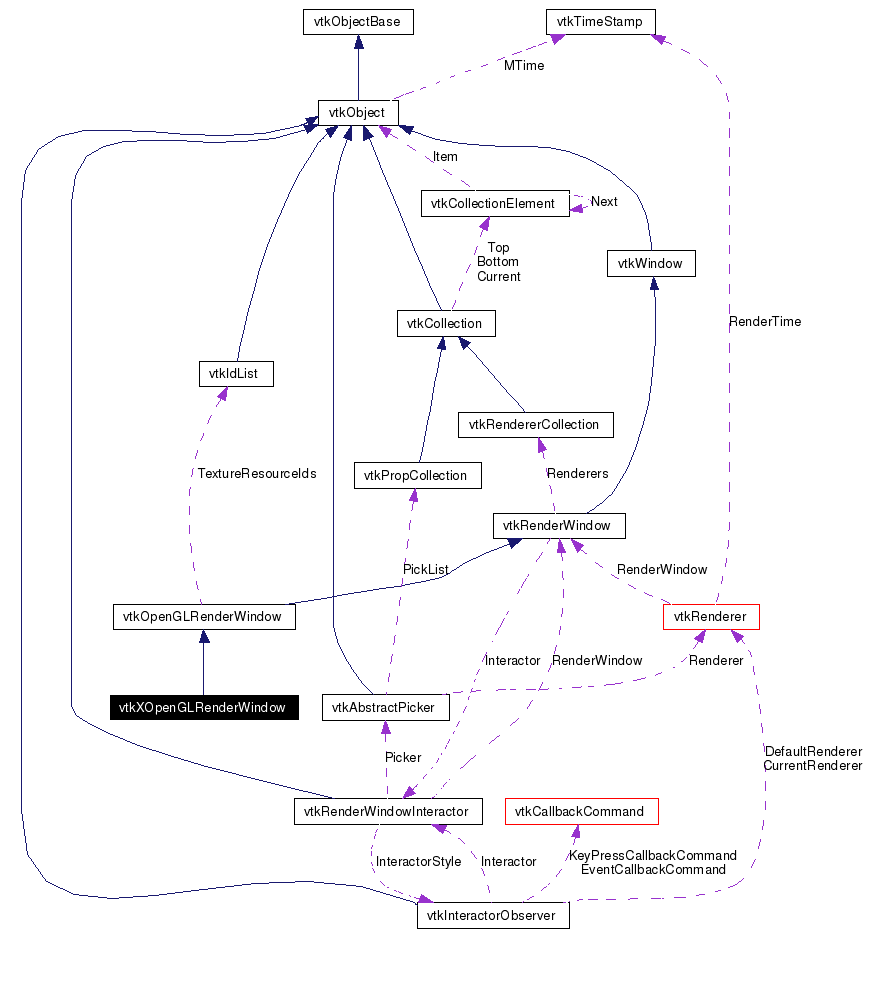

[legend]Collaboration diagram for vtkXOpenGLRenderWindow:

[legend]List of all members.

---

Detailed Description

OpenGL rendering window.

vtkXOpenGLRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkOpenGLRenderer interfaces to the OpenGL graphics library. Application programmers should normally use vtkRenderWindow instead of the OpenGL specific version.

Events:

vtkCommand::CursorChangedEvent vtkCommand::ExitEvent

Examples:

vtkXOpenGLRenderWindow (Examples)

Tests:

vtkXOpenGLRenderWindow (Tests)

Definition at line 43 of file vtkXOpenGLRenderWindow.h.

Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Start (void)
virtual void	Frame (void)
virtual void	WindowInitialize (void)
virtual void	Initialize (void)
virtual void	Finalize (void)
virtual void	SetFullScreen (int)
virtual void	WindowRemap (void)
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
void	SetForceMakeCurrent ()
const char *	ReportCapabilities ()
int	SupportsOpenGL ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
void	SetNextWindowId (Window)
void	SetNextWindowId (void *)
virtual void	SetCurrentCursor (int)
virtual int	GetEventPending ()
void	SetWindowInfo (char *info)
void	SetNextWindowInfo (char *info)
void	SetParentInfo (char *info)
void	Render ()
void	SetOffScreenRendering (int i)
virtual void	PrefFullScreen (void)
virtual void	SetSize (int, int)
virtual void	SetSize (int a[2])
virtual Colormap	GetDesiredColormap ()
virtual Visual *	GetDesiredVisual ()
virtual XVisualInfo *	GetDesiredVisualInfo ()
virtual int	GetDesiredDepth ()
int	IsDirect ()
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void *	GetGenericDrawable ()
Display *	GetDisplayId ()
void	SetDisplayId (Display *)
void	SetDisplayId (void *)
Window	GetParentId ()
void	SetParentId (Window)
void	SetParentId (void *)
Window	GetWindowId ()
void	SetWindowId (Window)
void	SetWindowId (void *)
void	SetWindowName (const char *)
void	SetPosition (int, int)
void	SetPosition (int a[2])
void	HideCursor ()
void	ShowCursor ()
Static Public Member Functions
static vtkXOpenGLRenderWindow *	New ()
static int	IsTypeOf (const char *type)
static vtkXOpenGLRenderWindow *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXOpenGLRenderWindow ()
	~vtkXOpenGLRenderWindow ()
Protected Attributes
vtkXOpenGLRenderWindowInternal *	Internal
Window	ParentId
Window	WindowId
Window	NextWindowId
Display *	DisplayId
Colormap	ColorMap
int	OwnWindow
int	OwnDisplay
int	ScreenSize [2]
int	CursorHidden
int	ForceMakeCurrent
int	UsingHardware
char *	Capabilities
Cursor	XCArrow
Cursor	XCSizeAll
Cursor	XCSizeNS
Cursor	XCSizeWE
Cursor	XCSizeNE
Cursor	XCSizeNW
Cursor	XCSizeSE
Cursor	XCSizeSW

---

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkXOpenGLRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow. Definition at line 47 of file vtkXOpenGLRenderWindow.h.

---

Constructor & Destructor Documentation

vtkXOpenGLRenderWindow::vtkXOpenGLRenderWindow (   )  [protected]

vtkXOpenGLRenderWindow::~vtkXOpenGLRenderWindow (   )  [protected]

---

Member Function Documentation

static vtkXOpenGLRenderWindow* vtkXOpenGLRenderWindow::New (   )  [static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on. Reimplemented from vtkRenderWindow.

virtual const char* vtkXOpenGLRenderWindow::GetClassName (   )  [virtual]

Reimplemented from vtkOpenGLRenderWindow.

static int vtkXOpenGLRenderWindow::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkXOpenGLRenderWindow::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkOpenGLRenderWindow.

static vtkXOpenGLRenderWindow* vtkXOpenGLRenderWindow::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkXOpenGLRenderWindow::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkXOpenGLRenderWindow::Start (  void   )  [virtual]

Begin the rendering process. Implements vtkRenderWindow.

virtual void vtkXOpenGLRenderWindow::Frame (  void   )  [virtual]

End the rendering process and display the image. Implements vtkRenderWindow.

virtual void vtkXOpenGLRenderWindow::WindowInitialize (  void   )  [virtual]

Initialize the window for rendering.

virtual void vtkXOpenGLRenderWindow::Initialize (  void   )  [virtual]

Initialize the rendering window. This will setup all system-specific resources. This method and Finalize() must be symmetric and it should be possible to call them multiple times, even changing WindowId in-between. This is what WindowRemap does.

virtual void vtkXOpenGLRenderWindow::Finalize (  void   )  [virtual]

"Deinitialize" the rendering window. This will shutdown all system-specific resources. After having called this, it should be possible to destroy a window that was used for a SetWindowId() call without any ill effects. Implements vtkRenderWindow.

virtual void vtkXOpenGLRenderWindow::SetFullScreen (  int   )  [virtual]

Change the window to fill the entire screen. Implements vtkRenderWindow.

virtual void vtkXOpenGLRenderWindow::WindowRemap (  void   )  [virtual]

Resize the window. Implements vtkRenderWindow.

virtual void vtkXOpenGLRenderWindow::PrefFullScreen (  void   )  [virtual]

Set the preferred window size to full screen.

virtual void vtkXOpenGLRenderWindow::SetSize (  int  , int  )  [virtual]

Specify the size of the rendering window. Reimplemented from vtkWindow.

virtual void vtkXOpenGLRenderWindow::SetSize (  int  a[2]  )  [inline, virtual]

Set the preferred window size to full screen. Reimplemented from vtkWindow. Definition at line 83 of file vtkXOpenGLRenderWindow.h. References vtkWindow::SetSize().

virtual Colormap vtkXOpenGLRenderWindow::GetDesiredColormap (   )  [virtual]

Get the X properties of an ideal rendering window.

virtual Visual* vtkXOpenGLRenderWindow::GetDesiredVisual (   )  [virtual]

Get the X properties of an ideal rendering window.

virtual XVisualInfo* vtkXOpenGLRenderWindow::GetDesiredVisualInfo (   )  [virtual]

Get the X properties of an ideal rendering window.

virtual int vtkXOpenGLRenderWindow::GetDesiredDepth (   )  [virtual]

Get the X properties of an ideal rendering window.

virtual void vtkXOpenGLRenderWindow::SetStereoCapableWindow (  int  capable  )  [virtual]

Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrides the superclass method since this class can actually check whether the window has been realized yet. Reimplemented from vtkRenderWindow.

void vtkXOpenGLRenderWindow::MakeCurrent (   )  [virtual]

Make this window the current OpenGL context. Implements vtkOpenGLRenderWindow.

void vtkXOpenGLRenderWindow::SetForceMakeCurrent (   )  [virtual]

If called, allow MakeCurrent() to skip cache-check when called. MakeCurrent() reverts to original behavior of cache-checking on the next render. Reimplemented from vtkRenderWindow.

const char* vtkXOpenGLRenderWindow::ReportCapabilities (   )  [virtual]

Get report of capabilities for the render window Reimplemented from vtkRenderWindow.

int vtkXOpenGLRenderWindow::SupportsOpenGL (   )  [virtual]

Does this render window support OpenGL? 0-false, 1-true Reimplemented from vtkRenderWindow.

int vtkXOpenGLRenderWindow::IsDirect (   )  [virtual]

Is this render window using hardware acceleration? 0-false, 1-true Reimplemented from vtkRenderWindow.

virtual void* vtkXOpenGLRenderWindow::GetGenericDisplayId (   )  [inline, virtual]

Xwindow get set functions Implements vtkRenderWindow. Definition at line 119 of file vtkXOpenGLRenderWindow.h.

virtual void* vtkXOpenGLRenderWindow::GetGenericWindowId (   )  [virtual]

Is this render window using hardware acceleration? 0-false, 1-true Implements vtkRenderWindow.

virtual void* vtkXOpenGLRenderWindow::GetGenericParentId (   )  [inline, virtual]

Is this render window using hardware acceleration? 0-false, 1-true Implements vtkRenderWindow. Definition at line 121 of file vtkXOpenGLRenderWindow.h.

virtual void* vtkXOpenGLRenderWindow::GetGenericContext (   )  [virtual]

Is this render window using hardware acceleration? 0-false, 1-true Implements vtkRenderWindow.

virtual void* vtkXOpenGLRenderWindow::GetGenericDrawable (   )  [inline, virtual]

Is this render window using hardware acceleration? 0-false, 1-true Implements vtkRenderWindow. Definition at line 123 of file vtkXOpenGLRenderWindow.h.

virtual int* vtkXOpenGLRenderWindow::GetScreenSize (   )  [virtual]

Get the size of the screen in pixels Implements vtkWindow.

virtual int* vtkXOpenGLRenderWindow::GetPosition (   )  [virtual]

Get the position in screen coordinates (pixels) of the window. Reimplemented from vtkWindow.

Display* vtkXOpenGLRenderWindow::GetDisplayId (   )

Get this RenderWindow's X display id.

void vtkXOpenGLRenderWindow::SetDisplayId (  Display *   )

Set the X display id for this RenderWindow to use to a pre-existing X display id.

void vtkXOpenGLRenderWindow::SetDisplayId (  void *   )  [virtual]

Get this RenderWindow's X display id. Implements vtkRenderWindow.

Window vtkXOpenGLRenderWindow::GetParentId (   )

Get this RenderWindow's parent X window id.

void vtkXOpenGLRenderWindow::SetParentId (  Window   )

Sets the parent of the window that WILL BE created.

void vtkXOpenGLRenderWindow::SetParentId (  void *   )  [virtual]

Get this RenderWindow's parent X window id. Implements vtkRenderWindow.

Window vtkXOpenGLRenderWindow::GetWindowId (   )

Get this RenderWindow's X window id.

void vtkXOpenGLRenderWindow::SetWindowId (  Window   )

Set this RenderWindow's X window id to a pre-existing window.

void vtkXOpenGLRenderWindow::SetWindowId (  void *   )  [virtual]

Get this RenderWindow's X window id. Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::SetNextWindowId (  Window   )

Specify the X window id to use if a WindowRemap is done.

void vtkXOpenGLRenderWindow::SetNextWindowId (  void *   )  [virtual]

Set the window id of the new window once a WindowRemap is done. This is the generic prototype as required by the vtkRenderWindow parent. Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::SetWindowName (  const char *   )  [virtual]

Get name of rendering window Reimplemented from vtkWindow.

void vtkXOpenGLRenderWindow::SetPosition (  int  , int  )  [virtual]

Move the window to a new position on the display. Reimplemented from vtkWindow.

void vtkXOpenGLRenderWindow::SetPosition (  int  a[2]  )  [inline, virtual]

Set/Get the position in screen coordinates of the rendering window. Reimplemented from vtkWindow. Definition at line 172 of file vtkXOpenGLRenderWindow.h. References vtkWindow::SetPosition().

void vtkXOpenGLRenderWindow::HideCursor (   )  [virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead. Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::ShowCursor (   )  [virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead. Implements vtkRenderWindow.

virtual void vtkXOpenGLRenderWindow::SetCurrentCursor (  int   )  [virtual]

Change the shape of the cursor Reimplemented from vtkRenderWindow.

virtual int vtkXOpenGLRenderWindow::GetEventPending (   )  [virtual]

Check to see if a mouse button has been pressed. All other events are ignored by this method. This is a useful check to abort a long render. Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::SetWindowInfo (  char *  info  )  [virtual]

Set this RenderWindow's X window id to a pre-existing window. Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::SetNextWindowInfo (  char *  info  )  [virtual]

Set the window info that will be used after WindowRemap() Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::SetParentInfo (  char *  info  )  [virtual]

Sets the X window id of the window that WILL BE created. Implements vtkRenderWindow.

void vtkXOpenGLRenderWindow::Render (   )  [virtual]

This computes the size of the render window before calling the supper classes render Reimplemented from vtkRenderWindow.

void vtkXOpenGLRenderWindow::SetOffScreenRendering (  int  i  )  [virtual]

Render without displaying the window. Reimplemented from vtkWindow.

---

Member Data Documentation

vtkXOpenGLRenderWindowInternal* vtkXOpenGLRenderWindow::Internal [protected]

Definition at line 210 of file vtkXOpenGLRenderWindow.h.

Window vtkXOpenGLRenderWindow::ParentId [protected]

Definition at line 212 of file vtkXOpenGLRenderWindow.h.

Window vtkXOpenGLRenderWindow::WindowId [protected]

Definition at line 213 of file vtkXOpenGLRenderWindow.h.

Window vtkXOpenGLRenderWindow::NextWindowId [protected]

Definition at line 214 of file vtkXOpenGLRenderWindow.h.

Display* vtkXOpenGLRenderWindow::DisplayId [protected]

Definition at line 215 of file vtkXOpenGLRenderWindow.h.

Colormap vtkXOpenGLRenderWindow::ColorMap [protected]

Definition at line 216 of file vtkXOpenGLRenderWindow.h.

int vtkXOpenGLRenderWindow::OwnWindow [protected]

Definition at line 217 of file vtkXOpenGLRenderWindow.h.

int vtkXOpenGLRenderWindow::OwnDisplay [protected]

Definition at line 218 of file vtkXOpenGLRenderWindow.h.

int vtkXOpenGLRenderWindow::ScreenSize[2] [protected]

Definition at line 219 of file vtkXOpenGLRenderWindow.h.

int vtkXOpenGLRenderWindow::CursorHidden [protected]

Definition at line 220 of file vtkXOpenGLRenderWindow.h.

int vtkXOpenGLRenderWindow::ForceMakeCurrent [protected]

Definition at line 221 of file vtkXOpenGLRenderWindow.h.

int vtkXOpenGLRenderWindow::UsingHardware [protected]

Definition at line 222 of file vtkXOpenGLRenderWindow.h.

char* vtkXOpenGLRenderWindow::Capabilities [protected]

Definition at line 223 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCArrow [protected]

Definition at line 226 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeAll [protected]

Definition at line 227 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeNS [protected]

Definition at line 228 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeWE [protected]

Definition at line 229 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeNE [protected]

Definition at line 230 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeNW [protected]

Definition at line 231 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeSE [protected]

Definition at line 232 of file vtkXOpenGLRenderWindow.h.

Cursor vtkXOpenGLRenderWindow::XCSizeSW [protected]

Definition at line 233 of file vtkXOpenGLRenderWindow.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkXOpenGLRenderWindow.h

---
