The vtkQtChartSeriesLayer class is the base class for chart layers that use the chart series model. More...

#include <vtkQtChartSeriesLayer.h>

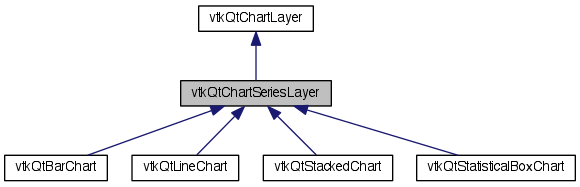

Inheritance diagram for vtkQtChartSeriesLayer:

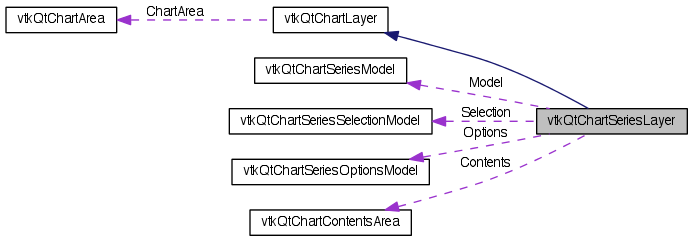

Collaboration diagram for vtkQtChartSeriesLayer:

Public Types
enum	{ Type = vtkQtChart_SeriesLayerType }
Public Slots
void	setXOffset (float offset)
	Sets the contents x-axis offset.
void	setYOffset (float offset)
	Sets the contents y-axis offset.
Signals
void	modelChanged (vtkQtChartSeriesModel previous, vtkQtChartSeriesModel current)
	Emitted when the series model is changed.
void	modelSeriesChanged (int first, int last)
	Emitted when the name or icon changes for a set of series.
Public Member Functions
	vtkQtChartSeriesLayer (bool useContents=true)
virtual	~vtkQtChartSeriesLayer ()
virtual void	setChartArea (vtkQtChartArea *area)
	Sets the chart area for the chart layer.
vtkQtChartSeriesModel *	getModel () const
	Gets the chart series model.
virtual void	setModel (vtkQtChartSeriesModel *model)
	Sets the chart series model.
vtkQtChartSeriesOptionsModel *	getOptionsModel () const
	Gets the chart series options model.
virtual void	setOptionsModel (vtkQtChartSeriesOptionsModel *model)
	Sets the chart series options model.
vtkQtChartSeriesOptions *	getSeriesOptions (int series) const
	Gets the drawing options for the given series.
int	getSeriesOptionsIndex (vtkQtChartSeriesOptions *options) const
	Gets the index for the given series options.
virtual QPixmap	getSeriesIcon (int series) const
	Gets the icon for a given series.
vtkQtChartSeriesSelectionModel *	getSelectionModel () const
	Gets the chart series selection model.
virtual void	getSeriesAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of series at a given position.
virtual void	getPointsAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of points at a given position.
virtual void	getSeriesIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of series in a given area.
virtual void	getPointsIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of points in a given area.
Protected Slots
virtual void	handleOptionsChanged (vtkQtChartSeriesOptions *, int type, const QVariant &newvalue, const QVariant &oldvalue)
	Called when any of the series options are changed.
Protected Member Functions
virtual void	setupOptions (vtkQtChartSeriesOptions *options)
	Sets up the default values for the series options object.
virtual void	cleanupOptions (vtkQtChartSeriesOptions *options)
	Cleans up the options by deallocating the style reservation for the option.
Protected Attributes
vtkQtChartSeriesSelectionModel *	Selection
	Stores the series/point selection.
vtkQtChartSeriesModel *	Model
	Stores the series model.
vtkQtChartContentsArea *	Contents
	Used for panning.
vtkQtChartSeriesOptionsModel *	Options
	Stores the series options.

Detailed Description

The vtkQtChartSeriesLayer class is the base class for chart layers that use the chart series model.

It stores the pointer to the chart series model and the list of options for the series.

Definition at line 48 of file vtkQtChartSeriesLayer.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

Type

Definition at line 53 of file vtkQtChartSeriesLayer.h.

Constructor & Destructor Documentation

vtkQtChartSeriesLayer::vtkQtChartSeriesLayer ( bool useContents = true )

virtual vtkQtChartSeriesLayer::~vtkQtChartSeriesLayer ( ) [inline, virtual]

Definition at line 57 of file vtkQtChartSeriesLayer.h.

Member Function Documentation

virtual void vtkQtChartSeriesLayer::setChartArea ( vtkQtChartArea * area ) [virtual]

Sets the chart area for the chart layer.

If the model is set before the chart layer is added to a chart area, series options will not be available. Setting the chart area will create the series options for the model in this case. Subclasses can extend this method to handle the new options.

Parameters:

area	The new chart area.

Reimplemented from vtkQtChartLayer.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesModel* vtkQtChartSeriesLayer::getModel ( ) const [inline]

Gets the chart series model.

Returns:: A pointer to the chart series model.

Definition at line 74 of file vtkQtChartSeriesLayer.h.

virtual void vtkQtChartSeriesLayer::setModel ( vtkQtChartSeriesModel * model ) [virtual]

Sets the chart series model.

Parameters:

model The new chart series model.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesOptionsModel* vtkQtChartSeriesLayer::getOptionsModel ( ) const [inline]

Gets the chart series options model.

Returns:: A pointer to the current chart series options model.

Definition at line 85 of file vtkQtChartSeriesLayer.h.

virtual void vtkQtChartSeriesLayer::setOptionsModel ( vtkQtChartSeriesOptionsModel * model ) [virtual]

Sets the chart series options model.

Parameters:

model The new chart series options model.

vtkQtChartSeriesOptions* vtkQtChartSeriesLayer::getSeriesOptions ( int series ) const

Gets the drawing options for the given series.

Parameters:

series The index of the series.

Returns:: A pointer to the drawing options for the given series.

int vtkQtChartSeriesLayer::getSeriesOptionsIndex ( vtkQtChartSeriesOptions * options ) const

Gets the index for the given series options.

Parameters:

options The series options object.

Returns:: The index for the given series options.

virtual QPixmap vtkQtChartSeriesLayer::getSeriesIcon ( int series ) const [virtual]

Gets the icon for a given series.

The icon is used by the chart legend.

Parameters:

series The index of the series.

Returns:: A pixmap representation of the series.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

vtkQtChartSeriesSelectionModel* vtkQtChartSeriesLayer::getSelectionModel ( ) const

Gets the chart series selection model.

Returns:: A pointer to the chart series selection model.

virtual void vtkQtChartSeriesLayer::getSeriesAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of series at a given position.

Parameters:

point	The position in scene coordinates.
selection	Used to return the list of series.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getPointsAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of points at a given position.

Parameters:

point	The position in scene coordinates.
selection	Used to return the list of points.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getSeriesIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of series in a given area.

Parameters:

area	The rectangle in scene coordinates.
selection	Used to return the list of series.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::getPointsIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)		const `[virtual]`

Gets the list of points in a given area.

Parameters:

area	The rectangle in scene coordinates.
selection	Used to return the list of points.

Reimplemented in vtkQtLineChart, vtkQtBarChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

void vtkQtChartSeriesLayer::setXOffset ( float offset ) [slot]

Sets the contents x-axis offset.

Parameters:

offset The new x-axis offset.

void vtkQtChartSeriesLayer::setYOffset ( float offset ) [slot]

Sets the contents y-axis offset.

Parameters:

offset The new y-axis offset.

void vtkQtChartSeriesLayer::modelChanged	(	vtkQtChartSeriesModel *	previous,
		vtkQtChartSeriesModel *	current
	)		`[signal]`

Emitted when the series model is changed.

Parameters:

previous	The previous series model.
current	The current series model.

void vtkQtChartSeriesLayer::modelSeriesChanged	(	int	first,
		int	last
	)		`[signal]`

Emitted when the name or icon changes for a set of series.

Parameters:

first	The first series index of the range.
last	The last series index of the range.

virtual void vtkQtChartSeriesLayer::handleOptionsChanged	(	vtkQtChartSeriesOptions *	,
		int	type,
		const QVariant &	newvalue,
		const QVariant &	oldvalue
	)		`[protected, virtual, slot]`

Called when any of the series options are changed.

Default implementation fires the modelSeriesChanged() signal.

Parameters:

options	The options that fired the dataChanged() signal.
type	Type of the option that was changed.
newValue	The new value for the option.
oldValue	The previous value for the option, if any.

Reimplemented in vtkQtBarChart, vtkQtLineChart, vtkQtStackedChart, and vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::setupOptions ( vtkQtChartSeriesOptions * options ) [protected, virtual]

Sets up the default values for the series options object.

The style manager should be used to help set up the series options. Subclass must call this method every time a new series options is set up.

Parameters:

options The newly created series options.

Reimplemented in vtkQtStatisticalBoxChart.

virtual void vtkQtChartSeriesLayer::cleanupOptions ( vtkQtChartSeriesOptions * options ) [protected, virtual]

Cleans up the options by deallocating the style reservation for the option.

Subclass must call this method before a series options object is cleaned up.
