Wraps a vtkQtLineChart into a VTK view. More...

#include <vtkQtLineChartView.h>

Inheritance diagram for vtkQtLineChartView:

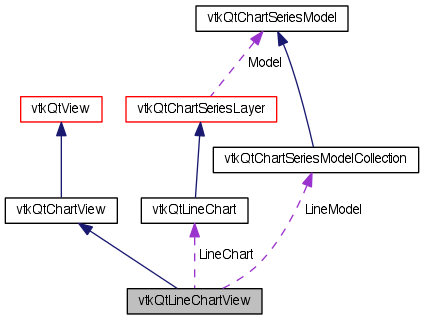

Collaboration diagram for vtkQtLineChartView:

Public Types
typedef vtkQtChartView	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
void	SetHelpFormat (const char *format)
virtual void	AddChartSelectionHandlers (vtkQtChartMouseSelection *selector)
virtual vtkQtChartSeriesModelCollection *	GetChartSeriesModel ()
virtual vtkQtChartSeriesLayer *	GetChartSeriesLayer ()
virtual vtkQtChartSeriesOptions *	GetChartSeriesOptions (int series)
Static Public Member Functions
static vtkQtLineChartView *	New ()
static int	IsTypeOf (const char *type)
static vtkQtLineChartView *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQtLineChartView ()
	~vtkQtLineChartView ()
Protected Attributes
vtkQtLineChart *	LineChart
vtkQtChartSeriesModelCollection *	LineModel

Detailed Description

Wraps a vtkQtLineChart into a VTK view.

vtkQtLineChartView is a type vtkQtChartView designed for line charts.

See also:: vtkQtChartView

Examples:: vtkQtLineChartView (Examples)

Tests:: vtkQtLineChartView (Tests)

Definition at line 45 of file vtkQtLineChartView.h.

Member Typedef Documentation

typedef vtkQtChartView vtkQtLineChartView::Superclass

Reimplemented from vtkQtChartView.

Definition at line 51 of file vtkQtLineChartView.h.

Constructor & Destructor Documentation

vtkQtLineChartView::vtkQtLineChartView ( ) [protected]

vtkQtLineChartView::~vtkQtLineChartView ( ) [protected]

Member Function Documentation

static vtkQtLineChartView* vtkQtLineChartView::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkView.

virtual const char* vtkQtLineChartView::GetClassName ( ) [virtual]

Reimplemented from vtkQtChartView.

static int vtkQtLineChartView::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtChartView.

virtual int vtkQtLineChartView::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtChartView.

static vtkQtLineChartView* vtkQtLineChartView::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkQtChartView.

void vtkQtLineChartView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtChartView.

virtual void vtkQtLineChartView::Update ( ) [virtual]

Updates the view.

Reimplemented from vtkQtChartView.

void vtkQtLineChartView::SetHelpFormat ( const char * format )

Sets the bar chart help format.

virtual void vtkQtLineChartView::AddChartSelectionHandlers ( vtkQtChartMouseSelection * selector ) [virtual]

Adds line chart selection handlers to the mouse selection.

Reimplemented from vtkQtChartView.

virtual vtkQtChartSeriesModelCollection* vtkQtLineChartView::GetChartSeriesModel ( ) [virtual]

Gets the line chart series model.

Implements vtkQtChartView.
