vtkBoostBrandesCentrality Class Reference

#include <vtkBoostBrandesCentrality.h>

Inheritance diagram for vtkBoostBrandesCentrality:

[legend]

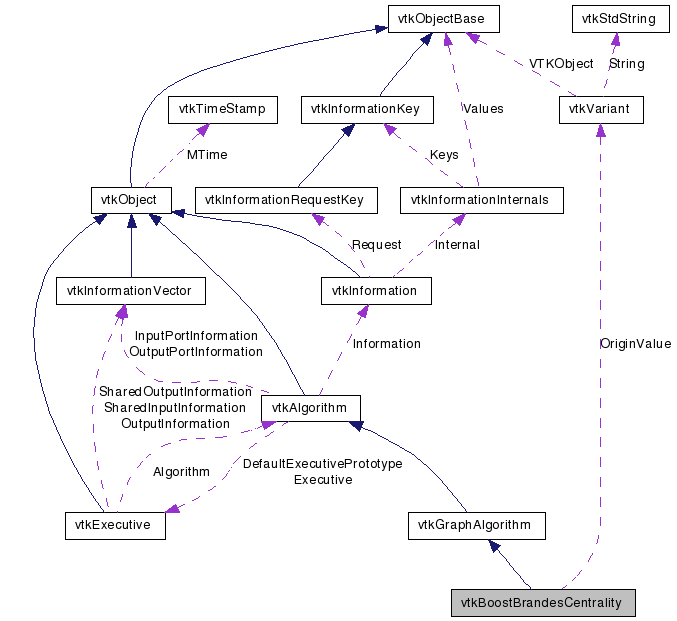

Collaboration diagram for vtkBoostBrandesCentrality:

[legend]

List of all members.

---

Detailed Description

Compute Brandes betweenness centrality on a vtkGraph.

This vtk class uses the Boost brandes_betweeness_centrality generic algorithm to compute betweenness centrality on the input graph (a vtkGraph).

See also:

vtkGraph vtkBoostGraphAdapter

Tests:

vtkBoostBrandesCentrality (Tests)

Definition at line 44 of file vtkBoostBrandesCentrality.h.

Public Types
typedef vtkGraphAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkBoostBrandesCentrality *	New ()
static int	IsTypeOf (const char *type)
static vtkBoostBrandesCentrality *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkBoostBrandesCentrality ()
	~vtkBoostBrandesCentrality ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

---

Member Typedef Documentation

typedef vtkGraphAlgorithm vtkBoostBrandesCentrality::Superclass

Reimplemented from vtkGraphAlgorithm.

Definition at line 48 of file vtkBoostBrandesCentrality.h.

---

Constructor & Destructor Documentation

vtkBoostBrandesCentrality::vtkBoostBrandesCentrality

(

)

[protected]

vtkBoostBrandesCentrality::~vtkBoostBrandesCentrality

(

)

[protected]

---

Member Function Documentation

static vtkBoostBrandesCentrality* vtkBoostBrandesCentrality::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkGraphAlgorithm.

virtual const char* vtkBoostBrandesCentrality::GetClassName

(

)

[virtual]

Reimplemented from vtkGraphAlgorithm.

static int vtkBoostBrandesCentrality::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGraphAlgorithm.

virtual int vtkBoostBrandesCentrality::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGraphAlgorithm.

static vtkBoostBrandesCentrality* vtkBoostBrandesCentrality::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkGraphAlgorithm.

void vtkBoostBrandesCentrality::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGraphAlgorithm.

int vtkBoostBrandesCentrality::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkGraphAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkBoostBrandesCentrality.h
