vtkGraphAlgorithm Class Reference
#include <vtkGraphAlgorithm.h>
Detailed Description
Superclass for algorithms that produce only graph as output.vtkGraphAlgorithm is a convenience class to make writing algorithms easier. It is also designed to help transition old algorithms to the new pipeline architecture. There are some assumptions and defaults made by this class you should be aware of. This class defaults such that your filter will have one input port and one output port. If that is not the case simply change it with SetNumberOfInputPorts etc. See this class constructor for the default. This class also provides a FillInputPortInfo method that by default says that all inputs will be Graph. If that isn't the case then please override this method in your subclass. This class breaks out the downstream requests into separate functions such as ExecuteData and ExecuteInformation. For new algorithms you should implement RequestData( request, inputVec, outputVec) but for older filters there is a default implementation that calls the old ExecuteData(output) signature. For even older filters that don't implement ExecuteData the default implementation calls the even older Execute() signature.
- Thanks:
- Thanks to Patricia Crossno, Ken Moreland, Andrew Wilson and Brian Wylie from Sandia National Laboratories for their help in developing this class.
Definition at line 56 of file vtkGraphAlgorithm.h.
Member Typedef Documentation
Reimplemented from vtkAlgorithm.

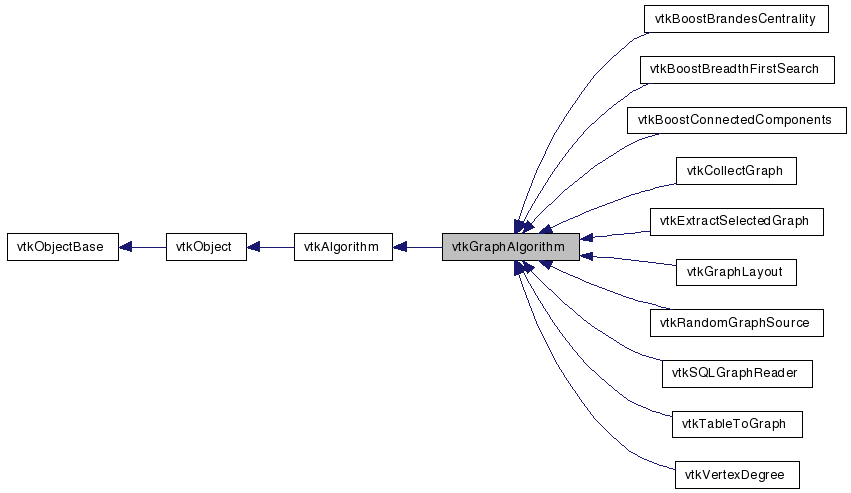

Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
Definition at line 60 of file vtkGraphAlgorithm.h.
Constructor & Destructor Documentation
| vtkGraphAlgorithm::vtkGraphAlgorithm | ( | ) | [protected] |
| vtkGraphAlgorithm::~vtkGraphAlgorithm | ( | ) | [protected] |
Member Function Documentation
| static vtkGraphAlgorithm* vtkGraphAlgorithm::New | ( | ) | [static] |
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| virtual const char* vtkGraphAlgorithm::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| static int vtkGraphAlgorithm::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| virtual int vtkGraphAlgorithm::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| static vtkGraphAlgorithm* vtkGraphAlgorithm::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| void vtkGraphAlgorithm::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| virtual int vtkGraphAlgorithm::ProcessRequest | ( | vtkInformation * | , | |
| vtkInformationVector ** | , | |||
| vtkInformationVector * | ||||
| ) | [virtual] |
see vtkAlgorithm for details
Reimplemented from vtkAlgorithm.
| vtkGraph* vtkGraphAlgorithm::GetOutput | ( | ) | [inline] |
Get the output data object for a port on this algorithm.
Definition at line 72 of file vtkGraphAlgorithm.h.
| vtkGraph* vtkGraphAlgorithm::GetOutput | ( | int | index | ) |
Get the output data object for a port on this algorithm.
| void vtkGraphAlgorithm::SetInput | ( | vtkDataObject * | obj | ) | [inline] |
Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.
Definition at line 84 of file vtkGraphAlgorithm.h.
| void vtkGraphAlgorithm::SetInput | ( | int | index, | |
| vtkDataObject * | obj | |||
| ) |
Set an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::SetInputConnection(). These methods transform the input index to the input port index, not an index of a connection within a single port.
| virtual int vtkGraphAlgorithm::RequestInformation | ( | vtkInformation * | request, | |
| vtkInformationVector ** | inputVector, | |||
| vtkInformationVector * | outputVector | |||
| ) | [protected, virtual] |
Reimplemented in vtkCollectGraph.
| virtual int vtkGraphAlgorithm::RequestData | ( | vtkInformation * | request, | |
| vtkInformationVector ** | inputVector, | |||
| vtkInformationVector * | outputVector | |||
| ) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented in vtkBoostBrandesCentrality, vtkBoostBreadthFirstSearch, vtkBoostConnectedComponents, vtkExtractSelectedGraph, vtkGraphLayout, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, vtkVertexDegree, and vtkCollectGraph.
| virtual int vtkGraphAlgorithm::RequestUpdateExtent | ( | vtkInformation * | , | |
| vtkInformationVector ** | , | |||
| vtkInformationVector * | ||||
| ) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented in vtkCollectGraph.
| virtual int vtkGraphAlgorithm::RequestDataObject | ( | vtkInformation * | , | |
| vtkInformationVector ** | inputVector, | |||
| vtkInformationVector * | outputVector | |||
| ) | [protected, virtual] |
By default, creates the same output type as the input type.
Reimplemented in vtkExtractSelectedGraph, vtkRandomGraphSource, vtkSQLGraphReader, vtkTableToGraph, and vtkCollectGraph.
| virtual int vtkGraphAlgorithm::FillOutputPortInformation | ( | int | port, | |
| vtkInformation * | info | |||
| ) | [protected, virtual] |
Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBreadthFirstSearch.
| virtual int vtkGraphAlgorithm::FillInputPortInformation | ( | int | port, | |
| vtkInformation * | info | |||
| ) | [protected, virtual] |
Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkBoostBreadthFirstSearch, vtkExtractSelectedGraph, and vtkTableToGraph.
The documentation for this class was generated from the following file:
- dox/Filtering/vtkGraphAlgorithm.h
