vtkCocoaRenderWindow Class Reference

#include <vtkCocoaRenderWindow.h>

Inheritance diagram for vtkCocoaRenderWindow:

[legend]

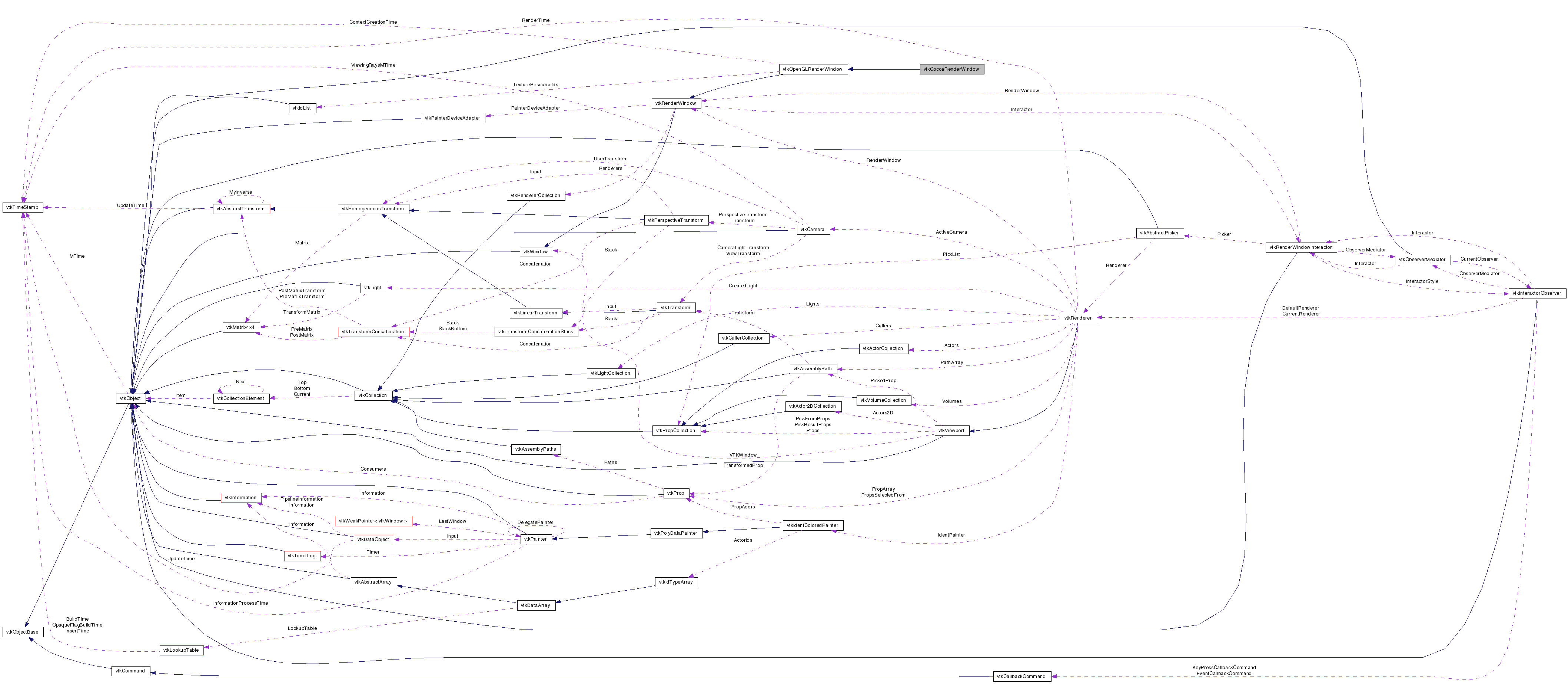

Collaboration diagram for vtkCocoaRenderWindow:

[legend]

List of all members.

---

Detailed Description

Cocoa OpenGL rendering window.

vtkCocoaRenderWindow is a concrete implementation of the abstract class vtkOpenGLRenderWindow. It is only available on Mac OS X 10.3 and later. To use this class, build VTK with VTK_USE_COCOA turned ON. This class can be used by 32 and 64 bit processes, and either in garbage collected or reference counted modes. vtkCocoaRenderWindow uses Objective-C++, and the OpenGL and Cocoa APIs. This class's default behaviour is to create an NSWindow and a vtkCocoaGLView which are used together to draw all vtk stuff into. If you already have an NSWindow and vtkCocoaGLView and you want this class to use them you must call both SetWindowId() and SetDisplayId() early on (before WindowInitialize() is executed).

See also:

vtkOpenGLRenderWindow vtkCocoaGLView

Warning:

This header must be in C++ only because it is included by .cxx files. That means no Objective-C may be used. That's why some instance variables are void* instead of what they really should be.

Definition at line 46 of file vtkCocoaRenderWindow.h.

Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Start ()
virtual void	Frame ()
virtual void	WindowConfigure ()
virtual void	Initialize ()
virtual void	SetFullScreen (int)
virtual void	WindowRemap ()
virtual void	PrefFullScreen ()
virtual int *	GetSize ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
virtual void	SetWindowName (const char *)
void	SetNextWindowInfo (char *)
virtual void	SetParentId (void *)
virtual void *	GetGenericParentId ()
virtual void *	GetGenericDrawable ()
virtual void	SetWindowInfo (char *)
virtual void	SetParentInfo (char *)
void	SetNextWindowId (void *)
virtual void	StereoUpdate ()
virtual void	SetStereoCapableWindow (int capable)
virtual void	MakeCurrent ()
void	UpdateContext ()
const char *	ReportCapabilities ()
int	SupportsOpenGL ()
int	IsDirect ()
virtual void	SetForceMakeCurrent ()
virtual int	GetEventPending ()
void	Finalize ()
void	RegisterTextureResource (GLuint id)
int	GetDepthBufferSize ()
virtual int	GetWindowCreated ()
virtual void	SetWindowId (void *)
virtual void	SetDisplayId (void *)
virtual void	SetSize (int *)
virtual void	SetSize (int, int)
virtual void	SetPosition (int *)
virtual void	SetPosition (int, int)
virtual void	SetupPalette (void *hDC)
virtual void	SetupPixelFormat (void *hDC, void *dwFlags, int debug, int bpp=16, int zbpp=16)
virtual void	HideCursor ()
virtual void	ShowCursor ()
void	SetContextId (void *)
void *	GetContextId ()
virtual void *	GetGenericContext ()
virtual void *	GetWindowId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetDisplayId ()
virtual void *	GetGenericDisplayId ()
virtual double	GetScaleFactor ()
Static Public Member Functions
static vtkCocoaRenderWindow *	New ()
static int	IsTypeOf (const char *type)
static vtkCocoaRenderWindow *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCocoaRenderWindow ()
	~vtkCocoaRenderWindow ()
void	CreateGLContext ()
void	CreateAWindow ()
void	DestroyWindow ()
void	DestroyOffScreenWindow ()
void	SetPixelFormat (void *pixelFormat)
void *	GetPixelFormat ()
void	SetCocoaManager (void *manager)
void *	GetCocoaManager ()
Protected Attributes
int	OffScreenInitialized
int	OnScreenInitialized
double	ScaleFactor

---

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkCocoaRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow.

Definition at line 50 of file vtkCocoaRenderWindow.h.

---

Constructor & Destructor Documentation

vtkCocoaRenderWindow::vtkCocoaRenderWindow

(

)

[protected]

vtkCocoaRenderWindow::~vtkCocoaRenderWindow

(

)

[protected]

---

Member Function Documentation

static vtkCocoaRenderWindow* vtkCocoaRenderWindow::New

(

)

[static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkCocoaRenderWindow::GetClassName

(

)

[virtual]

Reimplemented from vtkOpenGLRenderWindow.

static int vtkCocoaRenderWindow::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkCocoaRenderWindow::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

static vtkCocoaRenderWindow* vtkCocoaRenderWindow::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkCocoaRenderWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::Start

(

)

[virtual]

Begin the rendering process.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::Frame

(

)

[virtual]

Finish the rendering process.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::WindowConfigure

(

)

[virtual]

Specify various window parameters.

virtual void vtkCocoaRenderWindow::Initialize

(

)

[virtual]

Initialize the window for rendering. virtual void WindowInitialize();

Initialize the rendering window.

virtual void vtkCocoaRenderWindow::SetFullScreen

(

int

)

[virtual]

Change the window to fill the entire screen.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::WindowRemap

(

)

[virtual]

Remap the window.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::PrefFullScreen

(

)

[virtual]

Set the preferred window size to full screen.

virtual void vtkCocoaRenderWindow::SetSize

(

int *

)

[virtual]

Set the size of the window in pixels.

virtual void vtkCocoaRenderWindow::SetSize	(	int	,
		int
	)			[virtual]

Set the size of the window in pixels.

Reimplemented from vtkWindow.

virtual int* vtkCocoaRenderWindow::GetSize

(

)

[virtual]

Get the current size of the window in pixels.

Reimplemented from vtkWindow.

virtual void vtkCocoaRenderWindow::SetPosition

(

int *

)

[virtual]

Set the position of the window.

virtual void vtkCocoaRenderWindow::SetPosition	(	int	,
		int
	)			[virtual]

Set the position of the window.

Reimplemented from vtkWindow.

virtual int* vtkCocoaRenderWindow::GetScreenSize

(

)

[virtual]

Get the current size of the screen in pixels.

Implements vtkWindow.

virtual int* vtkCocoaRenderWindow::GetPosition

(

)

[virtual]

Get the position in screen coordinates of the window.

Reimplemented from vtkWindow.

virtual void vtkCocoaRenderWindow::SetWindowName

(

const char *

)

[virtual]

Set the name of the window. This appears at the top of the window normally.

Reimplemented from vtkWindow.

void vtkCocoaRenderWindow::SetNextWindowInfo

(

char *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 101 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetParentId

(

void *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 105 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetGenericParentId

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 109 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetGenericDrawable

(

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 114 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetWindowInfo

(

char *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 119 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetParentInfo

(

char *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 123 of file vtkCocoaRenderWindow.h.

void vtkCocoaRenderWindow::SetNextWindowId

(

void *

)

[inline, virtual]

Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 127 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::StereoUpdate

(

)

[virtual]

Update system if needed due to stereo rendering.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::SetStereoCapableWindow

(

int

capable

)

[virtual]

Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrrides the superclass method since this class can actually check whether the window has been realized yet.

Reimplemented from vtkRenderWindow.

virtual void vtkCocoaRenderWindow::MakeCurrent

(

)

[virtual]

Make this windows OpenGL context the current context.

Implements vtkOpenGLRenderWindow.

void vtkCocoaRenderWindow::UpdateContext

(

)

Update this window's OpenGL context, e.g. when the window is resized.

const char* vtkCocoaRenderWindow::ReportCapabilities

(

)

[virtual]

Get report of capabilities for the render window

Reimplemented from vtkRenderWindow.

int vtkCocoaRenderWindow::SupportsOpenGL

(

)

[virtual]

Does this render window support OpenGL? 0-false, 1-true

Reimplemented from vtkRenderWindow.

int vtkCocoaRenderWindow::IsDirect

(

)

[virtual]

Is this render window using hardware acceleration? 0-false, 1-true

Reimplemented from vtkRenderWindow.

virtual void vtkCocoaRenderWindow::SetForceMakeCurrent

(

)

[virtual]

If called, allow MakeCurrent() to skip cache-check when called. MakeCurrent() reverts to original behavior of cache-checking on the next render.

Reimplemented from vtkRenderWindow.

virtual int vtkCocoaRenderWindow::GetEventPending

(

)

[virtual]

Check to see if an event is pending for this window. This is a useful check to abort a long render.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::SetupPalette

(

void *

hDC

)

[virtual]

Initialize OpenGL for this window.

virtual void vtkCocoaRenderWindow::SetupPixelFormat	(	void *	hDC,
		void *	dwFlags,
		int	debug,
		int	bpp = 16,
		int	zbpp = 16
	)			[virtual]

Initialize OpenGL for this window.

void vtkCocoaRenderWindow::Finalize

(

)

[virtual]

Clean up device contexts, rendering contexts, etc.

Implements vtkRenderWindow.

void vtkCocoaRenderWindow::RegisterTextureResource

(

GLuint

id

)

Register a texture name with this render window

Reimplemented from vtkOpenGLRenderWindow.

int vtkCocoaRenderWindow::GetDepthBufferSize

(

)

[virtual]

Get the size of the depth buffer.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::HideCursor

(

)

[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::ShowCursor

(

)

[virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

virtual int vtkCocoaRenderWindow::GetWindowCreated

(

)

[virtual]

Get the WindowCreated flag. It is 1 if this object created an instance of NSWindow, 0 otherwise.

void vtkCocoaRenderWindow::SetContextId

(

void *

)

Accessors for the OpenGL context (Really an NSOpenGLContext*).

void* vtkCocoaRenderWindow::GetContextId

(

)

Accessors for the OpenGL context (Really an NSOpenGLContext*).

virtual void* vtkCocoaRenderWindow::GetGenericContext

(

)

[inline, virtual]

Accessors for the OpenGL context (Really an NSOpenGLContext*).

Implements vtkRenderWindow.

Definition at line 197 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetWindowId

(

void *

)

[virtual]

Sets the NSWindow* associated with this vtkRenderWindow. This class' default behaviour, that is, if you never call this SetDisplayId()/SetWindowId() is to create an NSWindow and a vtkCocoaGLView (NSView subclass) which are used together to draw all vtk stuff into. If you already have an NSWindow and NSView and you want this class to use them you must call both SetWindowId() and SetDisplayId() early on (before WindowInitialize() is executed). In the case of Java, you should call only SetDisplayId().

Implements vtkRenderWindow.

virtual void* vtkCocoaRenderWindow::GetWindowId

(

)

[virtual]

Returns the NSWindow* associated with this vtkRenderWindow.

virtual void* vtkCocoaRenderWindow::GetGenericWindowId

(

)

[inline, virtual]

Returns the NSWindow* associated with this vtkRenderWindow.

Implements vtkRenderWindow.

Definition at line 213 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetDisplayId

(

void *

)

[virtual]

Sets the NSView* associated with this vtkRenderWindow. This class' default behaviour, that is, if you never call this SetDisplayId()/SetWindowId() is to create an NSWindow and a vtkCocoaGLView (NSView subclass) which are used together to draw all vtk stuff into. If you already have an NSWindow and NSView and you want this class to use them you must call both SetWindowId() and SetDisplayId() early on (before WindowInitialize() is executed). In the case of Java, you should call only SetDisplayId().

Implements vtkRenderWindow.

virtual void* vtkCocoaRenderWindow::GetDisplayId

(

)

[virtual]

Returns the NSView* associated with this vtkRenderWindow.

virtual void* vtkCocoaRenderWindow::GetGenericDisplayId

(

)

[inline, virtual]

Returns the NSView* associated with this vtkRenderWindow.

Implements vtkRenderWindow.

Definition at line 229 of file vtkCocoaRenderWindow.h.

virtual double vtkCocoaRenderWindow::GetScaleFactor

(

)

[virtual]

Returns the scaling factor for 'resolution independence', to convert between points and pixels.

void vtkCocoaRenderWindow::CreateGLContext

(

)

[protected]

void vtkCocoaRenderWindow::CreateAWindow

(

)

[protected, virtual]

Create a not-off-screen window.

Implements vtkOpenGLRenderWindow.

void vtkCocoaRenderWindow::DestroyWindow

(

)

[protected, virtual]

Destroy a not-off-screen window.

Implements vtkOpenGLRenderWindow.

void vtkCocoaRenderWindow::DestroyOffScreenWindow

(

)

[protected]

void vtkCocoaRenderWindow::SetPixelFormat

(

void *

pixelFormat

)

[protected]

Accessors for the pixel format object (Really an NSOpenGLPixelFormat*).

void* vtkCocoaRenderWindow::GetPixelFormat

(

)

[protected]

Accessors for the pixel format object (Really an NSOpenGLPixelFormat*).

void vtkCocoaRenderWindow::SetCocoaManager

(

void *

manager

)

[protected]

Accessors for the cocoa manager (Really an NSMutableDictionary*). It manages all Cocoa objects in this C++ class.

void* vtkCocoaRenderWindow::GetCocoaManager

(

)

[protected]

Accessors for the cocoa manager (Really an NSMutableDictionary*). It manages all Cocoa objects in this C++ class.

---

Member Data Documentation

int vtkCocoaRenderWindow::OffScreenInitialized [protected]

Definition at line 248 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::OnScreenInitialized [protected]

Definition at line 249 of file vtkCocoaRenderWindow.h.

double vtkCocoaRenderWindow::ScaleFactor [protected]

Definition at line 251 of file vtkCocoaRenderWindow.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkCocoaRenderWindow.h
