vtkOpenGLRenderWindow Class Reference

#include <vtkOpenGLRenderWindow.h>

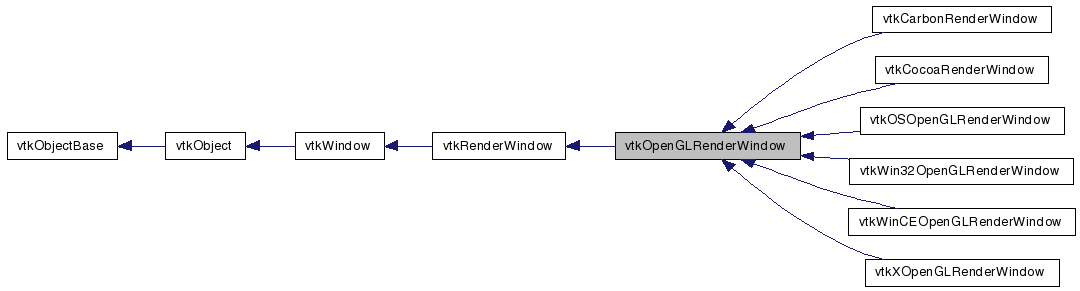

Inheritance diagram for vtkOpenGLRenderWindow:

[legend]

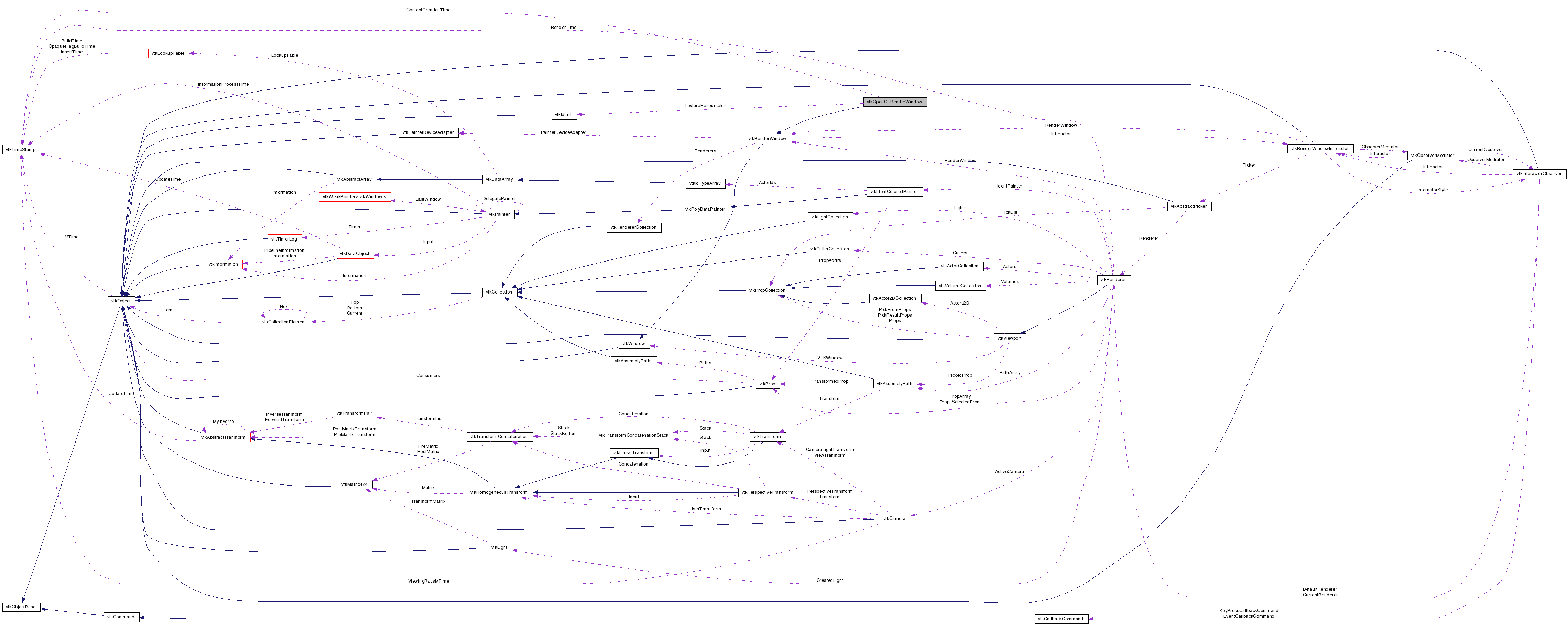

Collaboration diagram for vtkOpenGLRenderWindow:

[legend]

List of all members.

---

Detailed Description

OpenGL rendering window.

vtkOpenGLRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkOpenGLRenderer interfaces to the OpenGL graphics library. Application programmers should normally use vtkRenderWindow instead of the OpenGL specific version.

Definition at line 33 of file vtkOpenGLRenderWindow.h.

Public Types
typedef vtkRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	StereoUpdate ()
void	MakeCurrent ()=0
void	RegisterTextureResource (GLuint id)
int	GetDepthBufferSize ()
int	GetColorBufferSizes (int *rgba)
virtual void	OpenGLInit ()
unsigned int	GetBackLeftBuffer ()
unsigned int	GetBackRightBuffer ()
unsigned int	GetFrontLeftBuffer ()
unsigned int	GetFrontRightBuffer ()
unsigned int	GetBackBuffer ()
unsigned int	GetFrontBuffer ()
virtual void	CheckGraphicError ()
virtual int	HasGraphicError ()
virtual const char *	GetLastGraphicErrorString ()
virtual unsigned char *	GetPixelData (int x, int y, int x2, int y2, int front)
virtual int	GetPixelData (int x, int y, int x2, int y2, int front, vtkUnsignedCharArray *data)
virtual int	SetPixelData (int x, int y, int x2, int y2, unsigned char *data, int front)
virtual int	SetPixelData (int x, int y, int x2, int y2, vtkUnsignedCharArray *data, int front)
virtual float *	GetRGBAPixelData (int x, int y, int x2, int y2, int front)
virtual int	GetRGBAPixelData (int x, int y, int x2, int y2, int front, vtkFloatArray *data)
virtual int	SetRGBAPixelData (int x, int y, int x2, int y2, float *data, int front, int blend=0)
virtual int	SetRGBAPixelData (int x, int y, int x2, int y2, vtkFloatArray *data, int front, int blend=0)
virtual void	ReleaseRGBAPixelData (float *data)
virtual unsigned char *	GetRGBACharPixelData (int x, int y, int x2, int y2, int front)
virtual int	GetRGBACharPixelData (int x, int y, int x2, int y2, int front, vtkUnsignedCharArray *data)
virtual int	SetRGBACharPixelData (int x, int y, int x2, int y2, unsigned char *data, int front, int blend=0)
virtual int	SetRGBACharPixelData (int x, int y, int x2, int y2, vtkUnsignedCharArray *data, int front, int blend=0)
virtual float *	GetZbufferData (int x1, int y1, int x2, int y2)
virtual int	GetZbufferData (int x1, int y1, int x2, int y2, float *z)
virtual int	GetZbufferData (int x1, int y1, int x2, int y2, vtkFloatArray *z)
virtual int	SetZbufferData (int x1, int y1, int x2, int y2, float *buffer)
virtual int	SetZbufferData (int x1, int y1, int x2, int y2, vtkFloatArray *buffer)
virtual vtkTimeStamp	GetContextCreationTime ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkOpenGLRenderWindow *	SafeDownCast (vtkObject *o)
static void	SetGlobalMaximumNumberOfMultiSamples (int val)
static int	GetGlobalMaximumNumberOfMultiSamples ()
Protected Member Functions
	vtkOpenGLRenderWindow ()
	~vtkOpenGLRenderWindow ()
int	GetPixelData (int x, int y, int x2, int y2, int front, unsigned char *data)
int	GetRGBAPixelData (int x, int y, int x2, int y2, int front, float *data)
int	GetRGBACharPixelData (int x, int y, int x2, int y2, int front, unsigned char *data)
int	CreateHardwareOffScreenWindow (int width, int height)
void	DestroyHardwareOffScreenWindow ()
virtual void	CreateAWindow ()=0
virtual void	DestroyWindow ()=0
Protected Attributes
long	OldMonitorSetting
vtkIdList *	TextureResourceIds
int	OffScreenUseFrameBuffer
unsigned int	BackLeftBuffer
unsigned int	BackRightBuffer
unsigned int	FrontLeftBuffer
unsigned int	FrontRightBuffer
unsigned int	FrontBuffer
unsigned int	BackBuffer
unsigned int	LastGraphicError
vtkTimeStamp	ContextCreationTime
int	NumberOfFrameBuffers
unsigned int	TextureObjects [4]
unsigned int	FrameBufferObject
unsigned int	DepthRenderBufferObject

---

Member Typedef Documentation

typedef vtkRenderWindow vtkOpenGLRenderWindow::Superclass

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

Definition at line 39 of file vtkOpenGLRenderWindow.h.

---

Constructor & Destructor Documentation

vtkOpenGLRenderWindow::vtkOpenGLRenderWindow

(

)

[protected]

vtkOpenGLRenderWindow::~vtkOpenGLRenderWindow

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkOpenGLRenderWindow::GetClassName

(

)

[virtual]

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

static int vtkOpenGLRenderWindow::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

virtual int vtkOpenGLRenderWindow::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

static vtkOpenGLRenderWindow* vtkOpenGLRenderWindow::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

void vtkOpenGLRenderWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

static void vtkOpenGLRenderWindow::SetGlobalMaximumNumberOfMultiSamples

(

int

val

)

[static]

Set/Get the maximum number of multisamples

static int vtkOpenGLRenderWindow::GetGlobalMaximumNumberOfMultiSamples

(

)

[static]

Set/Get the maximum number of multisamples

virtual void vtkOpenGLRenderWindow::StereoUpdate

(

)

[virtual]

Update system if needed due to stereo rendering.

Reimplemented from vtkRenderWindow.

Reimplemented in vtkCocoaRenderWindow.

virtual unsigned char* vtkOpenGLRenderWindow::GetPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkWindow.

virtual int vtkOpenGLRenderWindow::GetPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front,
		vtkUnsignedCharArray *	data
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkWindow.

virtual int vtkOpenGLRenderWindow::SetPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		unsigned char *	data,
		int	front
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		vtkUnsignedCharArray *	data,
		int	front
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

Implements vtkRenderWindow.

virtual float* vtkOpenGLRenderWindow::GetRGBAPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::GetRGBAPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front,
		vtkFloatArray *	data
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetRGBAPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		float *	data,
		int	front,
		int	blend = 0
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetRGBAPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		vtkFloatArray *	data,
		int	front,
		int	blend = 0
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual void vtkOpenGLRenderWindow::ReleaseRGBAPixelData

(

float *

data

)

[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual unsigned char* vtkOpenGLRenderWindow::GetRGBACharPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::GetRGBACharPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front,
		vtkUnsignedCharArray *	data
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetRGBACharPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		unsigned char *	data,
		int	front,
		int	blend = 0
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetRGBACharPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		vtkUnsignedCharArray *	data,
		int	front,
		int	blend = 0
	)			[virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

Implements vtkRenderWindow.

virtual float* vtkOpenGLRenderWindow::GetZbufferData	(	int	x1,
		int	y1,
		int	x2,
		int	y2
	)			[virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::GetZbufferData	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		float *	z
	)			[virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::GetZbufferData	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		vtkFloatArray *	z
	)			[virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetZbufferData	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		float *	buffer
	)			[virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::SetZbufferData	(	int	x1,
		int	y1,
		int	x2,
		int	y2,
		vtkFloatArray *	buffer
	)			[virtual]

Set/Get the zbuffer data from an image

Implements vtkRenderWindow.

void vtkOpenGLRenderWindow::MakeCurrent

(

)

[pure virtual]

Make this window the current OpenGL context.

Implements vtkRenderWindow.

Implemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, vtkWinCEOpenGLRenderWindow, and vtkXOpenGLRenderWindow.

void vtkOpenGLRenderWindow::RegisterTextureResource

(

GLuint

id

)

Register a texture name with this render window.

Reimplemented in vtkCocoaRenderWindow.

int vtkOpenGLRenderWindow::GetDepthBufferSize

(

)

[virtual]

Get the size of the depth buffer.

Implements vtkRenderWindow.

Reimplemented in vtkCarbonRenderWindow, and vtkCocoaRenderWindow.

int vtkOpenGLRenderWindow::GetColorBufferSizes

(

int *

rgba

)

[virtual]

Get the size of the color buffer. Returns 0 if not able to determine otherwise sets R G B and A into buffer.

Implements vtkRenderWindow.

virtual void vtkOpenGLRenderWindow::OpenGLInit

(

)

[virtual]

Initialize OpenGL for this window.

unsigned int vtkOpenGLRenderWindow::GetBackLeftBuffer

(

)

Return the OpenGL name of the back left buffer. It is GL_BACK_LEFT if GL is bound to the window-system-provided framebuffer. It is vtkgl::COLOR_ATTACHMENT0_EXT if GL is bound to an application-created framebuffer object (GPU-based offscreen rendering) It is used by vtkOpenGLCamera.

unsigned int vtkOpenGLRenderWindow::GetBackRightBuffer

(

)

Return the OpenGL name of the back right buffer. It is GL_BACK_RIGHT if GL is bound to the window-system-provided framebuffer. It is vtkgl::COLOR_ATTACHMENT0_EXT+1 if GL is bound to an application-created framebuffer object (GPU-based offscreen rendering) It is used by vtkOpenGLCamera.

unsigned int vtkOpenGLRenderWindow::GetFrontLeftBuffer

(

)

Return the OpenGL name of the front left buffer. It is GL_FRONT_LEFT if GL is bound to the window-system-provided framebuffer. It is vtkgl::COLOR_ATTACHMENT0_EXT if GL is bound to an application-created framebuffer object (GPU-based offscreen rendering) It is used by vtkOpenGLCamera.

unsigned int vtkOpenGLRenderWindow::GetFrontRightBuffer

(

)

Return the OpenGL name of the front right buffer. It is GL_FRONT_RIGHT if GL is bound to the window-system-provided framebuffer. It is vtkgl::COLOR_ATTACHMENT0_EXT+1 if GL is bound to an application-created framebuffer object (GPU-based offscreen rendering) It is used by vtkOpenGLCamera.

unsigned int vtkOpenGLRenderWindow::GetBackBuffer

(

)

Return the OpenGL name of the back left buffer. It is GL_BACK if GL is bound to the window-system-provided framebuffer. It is vtkgl::COLOR_ATTACHMENT0_EXT if GL is bound to an application-created framebuffer object (GPU-based offscreen rendering) It is used by vtkOpenGLCamera.

unsigned int vtkOpenGLRenderWindow::GetFrontBuffer

(

)

Return the OpenGL name of the front left buffer. It is GL_FRONT if GL is bound to the window-system-provided framebuffer. It is vtkgl::COLOR_ATTACHMENT0_EXT if GL is bound to an application-created framebuffer object (GPU-based offscreen rendering) It is used by vtkOpenGLCamera.

virtual void vtkOpenGLRenderWindow::CheckGraphicError

(

)

[virtual]

Update graphic error status, regardless of ReportGraphicErrors flag. It means this method can be used in any context and is not restricted to debug mode.

Implements vtkRenderWindow.

virtual int vtkOpenGLRenderWindow::HasGraphicError

(

)

[virtual]

Return the last graphic error status. Initial value is false.

Implements vtkRenderWindow.

virtual const char* vtkOpenGLRenderWindow::GetLastGraphicErrorString

(

)

[virtual]

Return a string matching the last graphic error status.

Implements vtkRenderWindow.

virtual vtkTimeStamp vtkOpenGLRenderWindow::GetContextCreationTime

(

)

[virtual]

Get the time when the OpenGL context was created.

int vtkOpenGLRenderWindow::GetPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front,
		unsigned char *	data
	)			[protected]

int vtkOpenGLRenderWindow::GetRGBAPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front,
		float *	data
	)			[protected]

int vtkOpenGLRenderWindow::GetRGBACharPixelData	(	int	x,
		int	y,
		int	x2,
		int	y2,
		int	front,
		unsigned char *	data
	)			[protected]

int vtkOpenGLRenderWindow::CreateHardwareOffScreenWindow	(	int	width,
		int	height
	)			[protected]

Create an offScreen window based on OpenGL framebuffer extension. Return if the creation was successful or not.

Precondition:

positive_width: width>0

positive_height: height>0

not_initialized: !OffScreenUseFrameBuffer

Postcondition:

valid_result: (result==0 || result==1) && (result implies OffScreenUseFrameBuffer)

void vtkOpenGLRenderWindow::DestroyHardwareOffScreenWindow

(

)

[protected]

Destroy an offscreen window based on OpenGL framebuffer extension.

Precondition:

initialized: OffScreenUseFrameBuffer

Postcondition:

destroyed: !OffScreenUseFrameBuffer

virtual void vtkOpenGLRenderWindow::CreateAWindow

(

)

[protected, pure virtual]

Create a not-off-screen window.

Implemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, and vtkXOpenGLRenderWindow.

virtual void vtkOpenGLRenderWindow::DestroyWindow

(

)

[protected, pure virtual]

Destroy a not-off-screen window.

Implemented in vtkCarbonRenderWindow, vtkCocoaRenderWindow, vtkOSOpenGLRenderWindow, vtkWin32OpenGLRenderWindow, and vtkXOpenGLRenderWindow.

---

Member Data Documentation

long vtkOpenGLRenderWindow::OldMonitorSetting [protected]

Definition at line 36 of file vtkOpenGLRenderWindow.h.

vtkIdList* vtkOpenGLRenderWindow::TextureResourceIds [protected]

Definition at line 172 of file vtkOpenGLRenderWindow.h.

int vtkOpenGLRenderWindow::OffScreenUseFrameBuffer [protected]

Flag telling if a framebuffer-based offscreen is currently in use.

Definition at line 192 of file vtkOpenGLRenderWindow.h.

int vtkOpenGLRenderWindow::NumberOfFrameBuffers [protected]

Variables used by the framebuffer-based offscreen method.

Definition at line 196 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::TextureObjects[4] [protected]

Variables used by the framebuffer-based offscreen method.

Definition at line 197 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::FrameBufferObject [protected]

Variables used by the framebuffer-based offscreen method.

Definition at line 198 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::DepthRenderBufferObject [protected]

Variables used by the framebuffer-based offscreen method.

Definition at line 199 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::BackLeftBuffer [protected]

Definition at line 208 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::BackRightBuffer [protected]

Definition at line 209 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::FrontLeftBuffer [protected]

Definition at line 210 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::FrontRightBuffer [protected]

Definition at line 211 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::FrontBuffer [protected]

Definition at line 212 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::BackBuffer [protected]

Definition at line 213 of file vtkOpenGLRenderWindow.h.

unsigned int vtkOpenGLRenderWindow::LastGraphicError [protected]

Definition at line 216 of file vtkOpenGLRenderWindow.h.

vtkTimeStamp vtkOpenGLRenderWindow::ContextCreationTime [protected]

Definition at line 218 of file vtkOpenGLRenderWindow.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOpenGLRenderWindow.h
